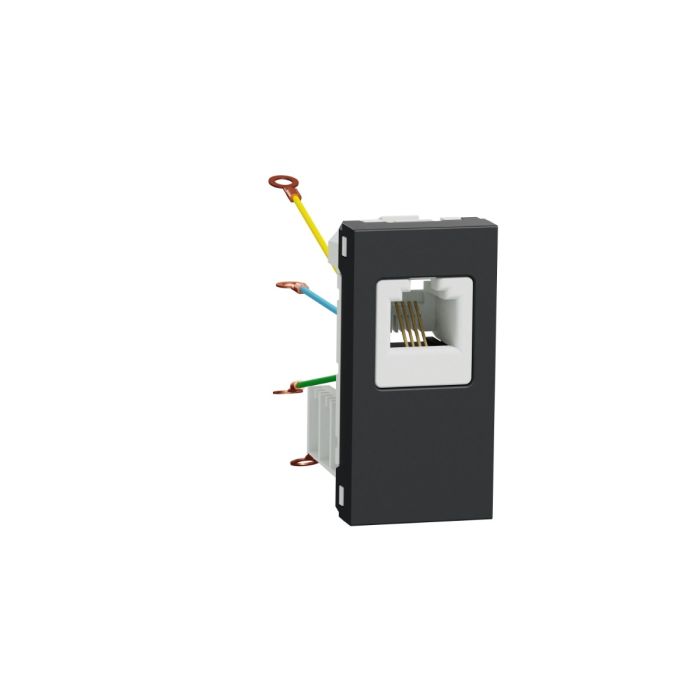

Schneider Electric New Unica Telephone Socket, RJ12, Anthracite

Schneider Electric New Unica telephone socket NU349154 in color anthracite is a mechanism for data communication and with 1 module. The telephone socket type is RJ12. Its matching mounting box can be recessed into the surface of the wall with flush type. It is 22.5 mm in width, 45 mm in height, and 34 mm in depth. The IP rating of this device is IP20. What's more, this device is qualified as a green premium product, with minimal use of hazardous substances. And it is mercury free as well as heavy metal free, taking care of the environment and your health all the time. The telephone socket is made of thermoplastic ABS-UV stabilised, making it as resistant as possible. New Unica includes a suite of new designs, colors and materials. Users benefit from beautiful design that match their style and innovative products. New Unica is designed with clever features to be flexible, easy to understand and quick to install providing solutions for all customers requirements.

Specifications

Main
Range	New Unica
Product or component type	Telephone socket
Device application	Communication
Device presentation	Mechanism
Colour tint	Anthracite (RAL 7021)
Telephone socket type	RJ12 (6 contacts) - category 3 at 16 Mbit/s
Complementary
Socket number	1
Number of modules	1 module
Connections - terminals	Screw terminals twisted pair
Device mounting	Flush
Fixing mode	Clip-in
Material	Thermoplastic ABS-UV stabilised: central plate
Depth	34 mm
Width	22.5 mm
height	45 mm
Embedding depth	34 mm
Ambient air temperature for operation	-25…55 °C
Ambient air temperature for storage	-25…55 °C
Resistance to chemical agents	Resistant to alcohol (70 %)
	Resistant to alcohol (96 %)
	Resistant to A-Lactic Acid
	Resistant to diluted quaternary ammonium
	Resistant to diluted bleach
	Resistant to diluted ammonia
	Resistant to soapy water
	Resistant to crystal cleaner
	Resistant to hydrogen peroxide 10 volumes
	Resistant to hexane
Environment
IP degree of protection	IP20
IK degree of protection	IK01
