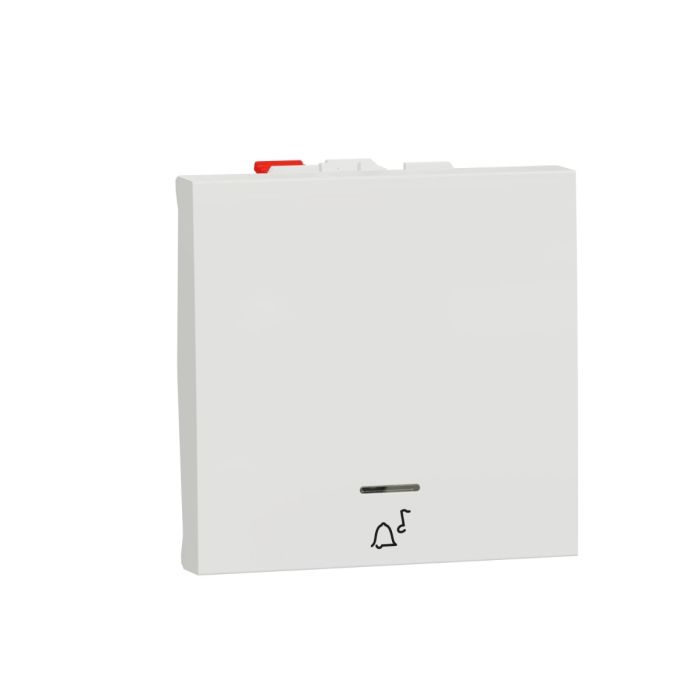

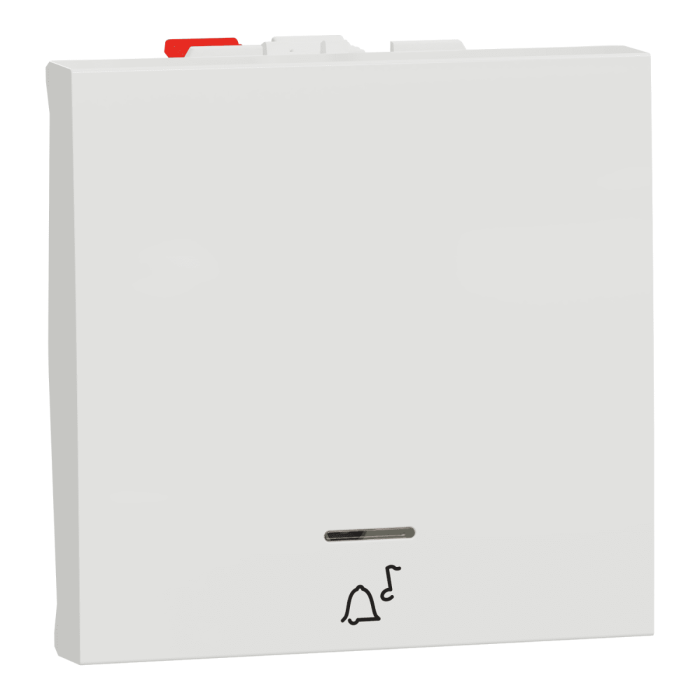

Schneider Electric New Unica Push-button 10 A, 2 Modules, White
Product Type: Push-button
Rated Current: 10A
Number of Modules: 2
Color: White
Schneider Electric New Unica push-button switch NU320618CN is a mechanism in color white The connection terminals of this push-button switch are screwless terminals. Being made of Cu. Zn37, PBT (polybutylene terephthalate) GF30, PC (polycarbonate) GF10 FR, thermoplastic ABS-UV stabilised material, this push-button switch is quite reliable and resistant. It is 45 mm in width, 45 mm in height, 34.25 mm in depth, with an embedding depth of 21.15 mm, And the product weighs 0.0207 kg. Besides it is halogen free halogen free, which is good for your health. It is with pilot light LED. Its fixing mode is clip-in. This product is sold in 10. What's more, it well satisfied the standard of IEC 60669-1, LV directive, Ro. HS compliant. It obtained AENOR, CE, EAC, NF certificate as well. Also, being environment-friendly, this device reached UV resistant, acetone, alcohol, ammonia, bleach, liquid soap, oil, petrol, window-cleaning fluid. The dielectric strength of this push-button switch is 2000 V. And its rated current is 10A. This push-button switch is SVHC (substances of very high concern) free too. The surface finish is glossy, delivering an elegant and high-end feeling to a room.
Specifications
| Main | |
| Range of product | New Unica |
| Product or component type | Switch |
| Device presentation | Mechanism |
| Technology type | Electromechanical |
| Switch function | 1-pole 1-way |
| Number of rocker | 1 |
| Device application | Light control |
| Colour tint | White (RAL 9003) |
| Type of packing | Flow-pack |
| Complementary | |
| Rated current | 10 AX |
| [Ue] rated operational voltage | 250 V |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Electrical durability | 20000 cycles, cos phi = 0.6 |
| Insulation resistance | > 5 MOhm at 500 V |
| Dielectric strength | 2000 V |
| Minimum load breaking capacity | 200 operations 1.25 In and 1.1 Un, cos phi = 0.3 |
| Opening distance | > 3 mm |
| Actuator | Rocker |
| Number of modules | 1 module |
| Connections - terminals | Screwless terminals |
| Cable cross section | 0…2.5 mm² rigid cable |
| 0…2.5 mm² flexible cable | |
| Material | Thermoplastic ABS-UV stabilised: mechanism rocker |
| PC (polycarbonate) GF10 FR: casing | |
| CuZn37: terminals | |
| PBT (polybutylene terephthalate) GF30: release button | |
| Marking | Without marking |
| Surface finish | Glossy |
| specific treatment - integrated within the material | Untreated |
| Fixing mode | Clip-in |
| Width | 22.5 mm |
| height | 45 mm |
| Depth | 34.25 mm |
| Embedding depth | 21.15 mm |
| Net weight | 0.0147 kg |
| Ambient air temperature for operation | -5…40 °C |
| Ambient air temperature for storage | -5…50 °C |
| standards | EN 60669-1 |
| LV directive | |
| EMC directive | |
| product certifications | AENOR |
| NF | |
| VDE | |
| EAC | |
| CE | |
| Resistance to chemical agents | Resistant to alcohol (70 %) |
| Resistant to alcohol (96 %) | |
| Resistant to A-Lactic Acid | |
| Resistant to diluted quaternary ammonium | |
| Resistant to diluted bleach | |
| Resistant to diluted ammonia | |
| Resistant to soapy water | |
| Resistant to crystal cleaner | |
| Resistant to hydrogen peroxide 10 volumes | |
| Resistant to hexane | |
| Environment | |
| IP degree of protection | IP4X |
| IK degree of protection | IK04 |
| Environmental characteristic | Oil |
| UV resistant | |
| Acetone | |
| Liquid soap | |
| Window-cleaning fluid | |
| Petrol | |
| Alcohol | |
| Bleach | |
| Weight | 0.022000 |
|---|---|
| Brand | Schneider Electric |
| Model | NU320618CN |
| Color | White |
| Depth [cm] | 3.425 |
| Width [cm] | 4.5 |
| Height [cm] | 4.5 |
| Range | Unica |
| Family | HDCWD |
| Type | Push-Button |
| Number of Modules | 2 modules |
| Device Application | Bell Switch |
| Fixing Mode | Clip-in |
| Rockers | 1 Rocker |
| [In] Rated Current | 10A |
| IP Degree of Protection | IP4X |
| IK Degree of Protection | IK04 |
