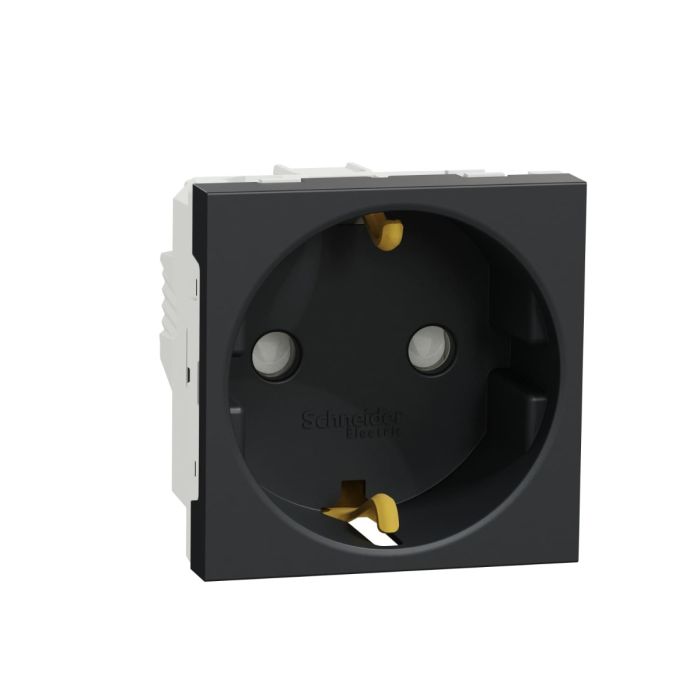

New Unica German Schuko Socket-Outlet with Shutter, 2P + E, 16A, Anthracite
Product Type: Socket Outlet
Number of modules: 2 module
Fixing mode: Clip-in
Color: Anthracite
The NU303754 socket outlet mechanism from Schneider Electric's Unica series is designed to provide reliable and versatile power solutions for your home or workspace. This mechanism is specially crafted to ensure safe and efficient electrical connections. Whether you are renovating your interior space or working on a new project, this socket outlet mechanism is an excellent choice to enhance your electrical setup.
Key Features:
Schuko Socket: This mechanism features a Schuko socket, which is widely used in Europe, providing compatibility with a variety of plugs and devices.
High Amperage: With a rating of 16A, this mechanism is suitable for powering a range of electrical appliances and devices.
Shuttered Design: The mechanism includes a shuttered design, adding a layer of safety to the socket by preventing access to live contacts.
Anthracite Color: The painted anthracite color provides a sleek and modern appearance.
Quality Construction: Schneider Electric is known for its high-quality electrical components, and this socket outlet mechanism is no exception.
Applications:
Home and Office: This mechanism is suitable for both residential and professional settings, providing a secure and reliable power source for your devices.
Renovations: Whether you are upgrading your home or workspace, this socket outlet mechanism can be a valuable addition to your electrical design.
International Compatibility: The Schuko socket design makes this mechanism suitable for use with a wide range of devices and plugs from various countries.
Enhance your electrical setup with the Schneider Electric NU303754 socket outlet mechanism. It's ideal for ensuring a safe and efficient power supply, and its compatibility with the Unica series ensures you're getting a reliable and stylish product.
Specifications
Main | |
Range | New Unica |
Product or component type | Socket-outlet |
Device presentation | Mechanism with central plate |
Device mounting | Flush |
Socket number | 1 |
Outlet poles configuration | 2P + E |
outlet standard | Schuko |
Outlet standard description | Side earth |
Ground lug position | 90° ground lug |
Rated current | 16 A |
Complementary | |
Device application | Power supply |
Cover type | With shutter |
[Ue] rated operational voltage | 250 V |
Network type | AC |
Network frequency | 50/60 Hz |
Number of modules | 2 modules |
Fixing mode | Clip-in |
Colour tint | Anthracite (RAL 7021) |
Connections - terminals | Screw terminals |
Cable cross section | 0…4 mm² cable(s), 2 - cable stiffness: flexible |
0…4 mm² cable(s), 2 - cable stiffness: rigid | |
Minimum load breaking capacity | 100 operations 1.25 In and 1.1 Un, cos phi = 0.6 |
Electrical durability | 10000 cycles, cos phi = 0.8 |
Insulation resistance | > 5 MOhm at 500 V |
Dielectric strength | 2000 V |
Material | PC: mechanism cover |
PC (polycarbonate) GF10 FR: casing | |
CuZn37: terminals | |
CuZn33: earth contact | |
Surface finish | Painted |
Quantity per set | Set of 1 flow-pack |
Standards | IEC 60884-1 |
UNE 20315-1-1 | |
UNE 20315-1-2 | |
DIN VDE 0620-1 | |
product certifications | AENOR |
EAC | |
Embedding depth | 30.5 mm |
Depth | 40 mm |
Width | 45 mm |
height | 45 mm |
Net weight | 0.033 kg |
Surface treatment | Painted |
Resistance to chemical agents | Resistant to alcohol (70 %) |
Resistant to alcohol (96 %) | |
Resistant to A-Lactic Acid | |
Resistant to diluted quaternary ammonium | |
Resistant to diluted bleach | |
Resistant to diluted ammonia | |
Resistant to soapy water | |
Resistant to crystal cleaner | |
Resistant to hydrogen peroxide 10 volumes | |
Resistant to hexane | |
Environment | |
Ambient air temperature for operation | -5…35 °C |
Ambient air temperature for storage | -5…50 °C |
IK degree of protection | IK04 |
IP degree of protection | IP21D |
Environmental characteristic | Acetone |
Bleach | |
UV resistant | |
Petrol | |
Oil | |
Alcohol | |
Window-cleaning fluid | |
Liquid soap |
Weight | 0.035000 |
---|---|
Brand | Schneider Electric |
Model | NU303754 |
Color | Anthracite |
Depth [cm] | 4 |
Width [cm] | 4.5 |
Height [cm] | 4.5 |
Range | Unica |
Family | HDCWD |
Type | Socket-Outlet |
Number of Modules | 2 modules |
Device Application | Power Supply |
Fixing Mode | Clip-in |
[In] Rated Current | 16 A |
IP Degree of Protection | IP21D |
IK Degree of Protection | IK04 |
