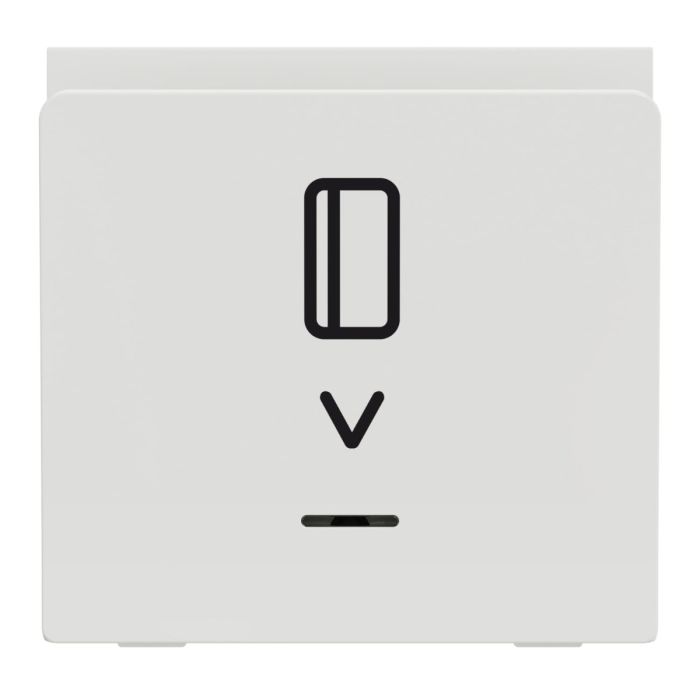

New Unica Card Switch 1-Pole 2-Way, 10A, 2 Modules, Screwless, White
Product Type: Card switch
Number of Poles: 1 Pole
Number of Ways: 2 Way
Rated Current: 10A
Number of Modules: 2
Upgrade your electrical system with the Unica Card Switch Mechanism. This mechanism is designed for 1-pole 2-way switches, offering efficient control over your lighting. With a 10A rating, it's suitable for various applications. The screwless terminals make installation a breeze, and the untreated finish blends seamlessly with any decor.
Key Features:
Versatile Control: Designed for 1-pole 2-way switches, providing efficient lighting control.
Current Rating: With a 10A rating, it's suitable for various applications.
Easy Installation: Screwless terminals simplify the installation process.
Sleek Design: The untreated finish seamlessly blends with any interior.
Enhance your lighting control with the Unica Card Switch Mechanism for added convenience and style.
Applications:
Residential Use: Ideal for homes, offering efficient lighting control.
Commercial Use: Suitable for various commercial applications, ensuring efficient lighting management.
Specifications:
Product Type: Card Switch Mechanism
Switch Type: 1-Pole 2-Way
Current Rating: 10A
Terminals: Screwless
Specifications
| Main | |
| Range of product | New Unica |
| Product or component type | Card switch |
| Device presentation | Mechanism |
| Technology type | Electromechanical |
| Switch function | 1-pole 2-way |
| Number of rocker | 1 |
| Colour tint | White (RAL 9003) |
| Type of packing | Flow-pack |
| Complementary | |
| Rated current | 10:00 ص |
| [Ue] rated operational voltage | 250 V |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Electrical durability | 20000 cycles, cos phi = 0.6 |
| Insulation resistance | > 5 MOhm at 500 V |
| Dielectric strength | 2000 V |
| Minimum load breaking capacity | 200 operations 1.25 In and 1.1 Un, cos phi = 0.3 |
| Opening distance | > 3 mm |
| Actuator | Access card |
| Number of modules | 2 modules |
| Connections - terminals | Screwless terminals |
| Cable cross section | 0…2.5 mm² rigid cable |
| 0…2.5 mm² flexible cable | |
| Material | Thermoplastic ABS-UV stabilised: mechanism rocker |
| PC (polycarbonate) GF10 FR: casing | |
| CuZn37: terminals | |
| PBT (polybutylene terephthalate) GF30: release button | |
| Marking | Card |
| Surface finish | Glossy |
| specific treatment - integrated within the material | Untreated |
| Fixing mode | Clip-in |
| Width | 45 mm |
| height | 45 mm |
| Depth | 39.95 mm |
| Embedding depth | 21.15 mm |
| Net weight | 0.0323 kg |
| Ambient air temperature for operation | -5…40 °C |
| Ambient air temperature for storage | -5…50 °C |
| standards | LV directive |
| IEC 60669-1 | |
| product certifications | CE |
| AENOR | |
| EAC | |
| NF | |
| VDE | |
| Resistance to chemical agents | Resistant to alcohol (70 %) |
| Resistant to alcohol (96 %) | |
| Resistant to A-Lactic Acid | |
| Resistant to diluted quaternary ammonium | |
| Resistant to diluted bleach | |
| Resistant to diluted ammonia | |
| Resistant to soapy water | |
| Resistant to crystal cleaner | |
| Resistant to hydrogen peroxide 10 volumes | |
| Resistant to hexane | |
| Environment | |
| IP degree of protection | IP4X |
| IK degree of protection | IK04 |
| Environmental characteristic | Oil |
| UV resistant | |
| Acetone | |
| Liquid soap | |
| Window-cleaning fluid | |
| Petrol | |
| Alcohol | |
| Bleach | |
| Weight | 0.032500 |
|---|---|
| Brand | Schneider Electric |
| Model | NU328318 |
| Color | White |
| Depth [cm] | 3.995 |
| Width [cm] | 4.5 |
| Height [cm] | 4.5 |
| Range | Unica |
| Family | HDCWD |
| Type | Card Switch |
| Number of Modules | 2 modules |
| Fixing Mode | Clip-in |
| Rockers | 1 Rocker |
| [In] Rated Current | 10A |
| IP Degree of Protection | IP4X |
| IK Degree of Protection | IK04 |
