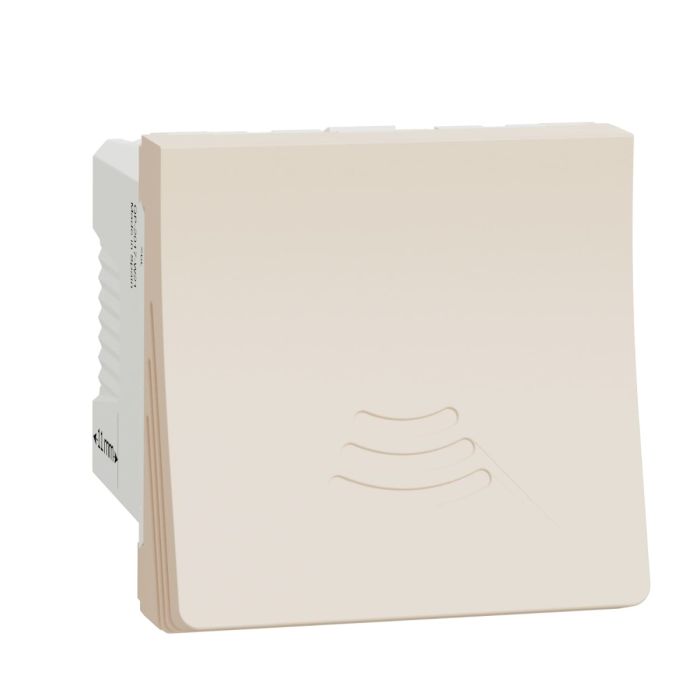

Schneider Electric New Unica Buzzer 2 Modules, 230V AC, Clip-in, Beige
Range: New Unica
Product Type: Buzzer
Number of Modules: 2
Color: Beige
Schneider Electric New Unica buzzer NU378544 is a mechanism in color beige. And its acoustic level is between 76 and 80 d. B. And its current consumption is quite low, which is 40 m. A. 230V is the rated operational voltage. It reaches IP20 degree of protection too. What's more, it well satisfied the standard of CE, EN 62080. Also, it is environment-friendly, with UV resistant, acetone, alcohol, ammonia, bleach, liquid soap, oil, petrol, window-cleaning fluid reached. New Unica includes a suite of new designs, colors and materials. Users benefit from beautiful design that match their style and innovative products. New Unica is designed with clever features to be flexible, easy to understand and quick to install providing solutions for all customers requirements.
Main | |
| Range | New Unica |
| Device application | Signalling |
| Product or component type | Buzzer |
| Aesthetic name | Unica (standard aesthetic) |
| Device presentation | Mechanism |
| [Ue] rated operational voltage | 230 V AC 50/60 Hz |
| Number of modules | 2 modules |
| Fixing mode | Clip-in |
| Colour tint | Beige (RAL 1013) |
| Complementary | |
| Current consumption | 40 mA |
| Type of setting | Volume can be adjusted using a screw |
| Device mounting | Flush |
| Operating time | <= 30 ms |
| Connections - terminals | Screw terminals |
| Acoustic level | Between 76 and 80 dB |
| Cable cross section | 0.75…1.5 mm² flexible cable |
| 0.75…1.5 mm² rigid cable | |
| Material | Thermoplastic ABS-UV stabilised: mechanism rocker |
| PC (polycarbonate) GF10 FR: casing | |
| Standards | EN 62080 |
| CE | |
| Directives | 2014/35/EU - low voltage directive |
| Ambient air temperature for operation | 15…30 °C |
| Ambient air temperature for storage | 0…35 °C |
| Embedding depth | 31 mm |
| Depth | 50 mm |
| Width | 45 mm |
| Height | 45 mm |
| Net weight | 0.091 kg |
| resistance to chemical agents | Resistant to alcohol (70 %) |
| Resistant to alcohol (96 %) | |
| Resistant to A-Lactic Acid | |
| Resistant to diluted quaternary ammonium | |
| Resistant to diluted bleach | |
| Resistant to diluted ammonia | |
| Resistant to soapy water | |
| Resistant to crystal cleaner | |
| Resistant to hydrogen peroxide 10 volumes | |
| Resistant to hexane | |
| Environment | |
| IK degree of protection | IK04 |
| IP degree of protection | IP20 |
| Environmental characteristic | Oil |
| Petrol | |
| Acetone | |
| Alcohol | |
| Bleach | |
| Window-cleaning fluid | |
| Liquid soap | |
| UV resistant | |
| Weight | 0.020000 |
|---|---|
| Brand | Schneider Electric |
| Model | NU378544 |
| Color | Beige |
| Depth [cm] | 5 |
| Width [cm] | 4.5 |
| Height [cm] | 4.5 |
| Range | Unica |
| Family | HDCWD |
| Type | Buzzer |
| Number of Modules | 2 modules |
| Device Application | Signalling |
| Fixing Mode | Clip-in |
| IP Degree of Protection | IP20 |
| IK Degree of Protection | IK04 |
