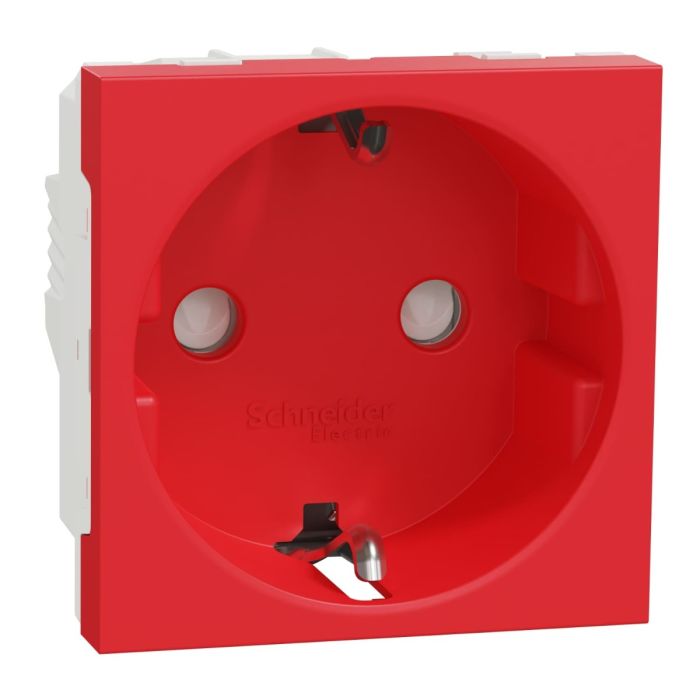

New Unica 2P + E Schuko Socket Outlet with Shutters, 16A, Red
Product Type: Socket Outlet
Number of modules: 2 module
Fixing mode: Clip-in
Color: Red
Upgrade your electrical system with the Unica Antibacterial Socket Outlet Mechanism - a premium solution for your power needs. This 2P + E mechanism is designed for a 16A Schuko socket, featuring a practical shutter for added safety. The glossy Red finish not only adds a pop of color but is also antibacterial, promoting a hygienic environment.
Key Features:
High-Performance: Designed for a 16A Schuko socket for versatile use.
Safety First: Equipped with a practical shutter for safety and protection.
Antibacterial Finish: The glossy finish is antibacterial, contributing to a clean and hygienic environment.
Durable Build: Made to last with quality materials.
Enhance the functionality and safety of your electrical setup with the Unica Antibacterial Socket Outlet Mechanism.
Applications:
Residential Use: Ideal for homes, ensuring both functionality and a stylish design.
Commercial Use: Suitable for various commercial applications that prioritize hygiene and aesthetics.
Specifications
| Main | |
| Range | New Unica |
| Product or component type | Socket-outlet |
| Device presentation | Mechanism with central plate |
| Device mounting | Flush |
| Socket number | 1 |
| Outlet poles configuration | 2P + E |
| outlet standard | Schuko |
| Outlet standard description | Side earth |
| Ground lug position | 90° ground lug |
| Rated current | 16 A |
| Complementary | |
| Device application | Power supply |
| Cover type | With shutter |
| [Ue] rated operational voltage | 250 V |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Number of modules | 2 modules |
| Fixing mode | Clip-in |
| Colour tint | Red (Pantone 1795C) |
| Connections - terminals | Screw terminals |
| Cable cross section | 0…4 mm² cable(s), 2 - cable stiffness: flexible |
| 0…4 mm² cable(s), 2 - cable stiffness: rigid | |
| Minimum load breaking capacity | 100 operations 1.25 In and 1.1 Un, cos phi = 0.6 |
| Electrical durability | 10000 cycles, cos phi = 0.8 |
| Insulation resistance | > 5 MOhm at 500 V |
| Dielectric strength | 2000 V |
| Material | PC: mechanism cover |
| PC (polycarbonate) GF10 FR: casing | |
| CuZn37: terminals | |
| CuZn33: earth contact | |
| Surface finish | Glossy |
| Quantity per set | Set of 1 flow-pack |
| Standards | IEC 60884-1 |
| UNE 20315-1-1 | |
| UNE 20315-1-2 | |
| DIN VDE 0620-1 | |
| product certifications | EAC |
| AENOR | |
| Embedding depth | 30.5 mm |
| Depth | 40 mm |
| Width | 45 mm |
| height | 45 mm |
| Net weight | 0.033 kg |
| Surface treatment | Antibacterial |
| Resistance to chemical agents | Resistant to alcohol (70 %) |
| Resistant to alcohol (96 %) | |
| Resistant to A-Lactic Acid | |
| Resistant to diluted quaternary ammonium | |
| Resistant to diluted bleach | |
| Resistant to diluted ammonia | |
| Resistant to soapy water | |
| Resistant to crystal cleaner | |
| Resistant to hydrogen peroxide 10 volumes | |
| Resistant to hexane | |
| Environment | |
| Ambient air temperature for operation | -5…35 °C |
| Ambient air temperature for storage | -5…50 °C |
| IK degree of protection | IK04 |
| IP degree of protection | IP21D |
| Environmental characteristic | Acetone |
| Bleach | |
| UV resistant | |
| Petrol | |
| Oil | |
| Alcohol | |
| Window-cleaning fluid | |
| Liquid soap | |
| Weight | 0.035000 |
|---|---|
| Brand | Schneider Electric |
| Model | NU303703 |
| Color | Red |
| Depth [cm] | 4 |
| Width [cm] | 4.5 |
| Height [cm] | 4.5 |
| Range | Unica |
| Family | HDCWD |
| Type | Socket-Outlet |
| Number of Modules | 2 modules |
| Device Application | Power Supply |
| Fixing Mode | Clip-in |
| [In] Rated Current | 16 A |
| IP Degree of Protection | IP21D |
| IK Degree of Protection | IK04 |
