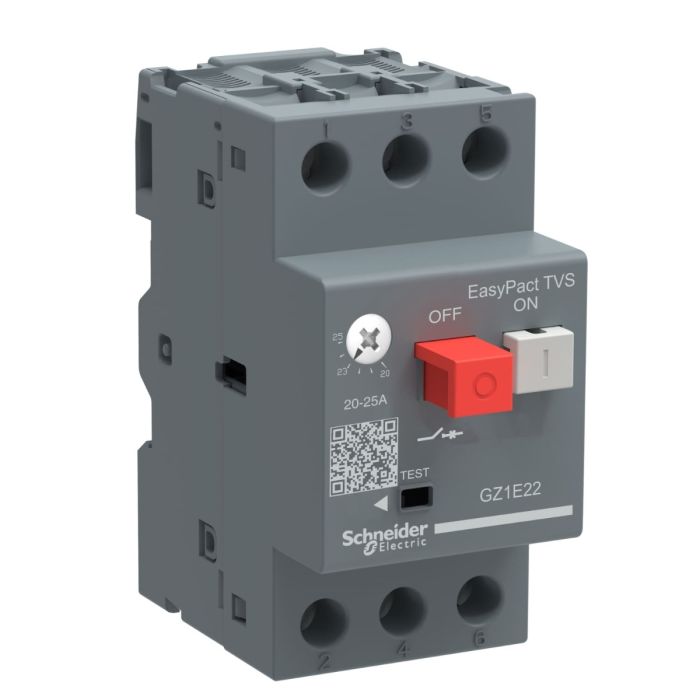

Motor Circuit Breaker - EasyPact TVS - AC3 3P - 24-32A - Thermal-Magnetic Detection, Schneider Electric

Out of stock
SKU
GZ1E32
Special Price EGP 2,526 Regular Price EGP 4,677
50520 Reward Points will be used to purchase this product
Quick Overview

Range of product: EasyPact
Product type: Circuit breaker
Poles: 3P
Device application: Motor

The GZ1E32 Motor Circuit Breaker, part of Schneider Electric's EasyPact TVS series, is a robust and reliable solution for motor protection and circuit disconnection. This 3-pole circuit breaker is designed to handle currents ranging from 24 to 32 amperes. Equipped with thermal-magnetic detection, it offers enhanced safety and protection for your electrical circuits and motors.



Key Features:

Motor Protection: The GZ1E32 is specifically designed to protect motors from overloads and short circuits, ensuring the longevity of your motor-driven equipment.

3-Pole Design: With a 3-pole configuration, this circuit breaker provides comprehensive protection for three-phase electrical systems.

Current Range: This breaker supports a current range of 24 to 32 amperes, making it suitable for a variety of applications.

Thermal-Magnetic Detection: The thermal-magnetic detection mechanism ensures quick response to overcurrents, offering reliable protection to your circuits.

Robust Build: Schneider Electric's quality construction ensures a long-lasting and durable motor circuit breaker.



Technical Specifications:

Product Type: Motor Circuit Breaker

Series: EasyPact TVS

Configuration: 3P (3-Pole)

Current Rating: 24-32A

Detection: Thermal-Magnetic



Specifications

Main
RangeEasy TeSys
Range of productEasy TeSys Power
Product or component typeCircuit breaker
device short nameGZ1E
Device applicationMotor
Trip unit technologyThermal-magnetic
Suitability for isolationYes conforming to IEC 60947-1 appendix 7.1.6
ColourGrey (RAL 7011)
Complementary
Poles description3P
Network typeAC
Utilisation categoryAC-3
Network frequency50/60 Hz conforming to IEC 60947-2
Mounting modeBy clips
By screws
mounting supportRail
Mounting positionAny position
Motor power kW22 kW at 690 V AC 50/60 Hz
7.5 kW at 230 V AC 50/60 Hz
15 kW at 400 V AC 50/60 Hz
15 kW at 440 V AC 50/60 Hz
18.5 kW at 500 V AC 50/60 Hz
Breaking capacityIcu: 2 kA at 690 V AC 50/60 Hz conforming to IEC 60947-2
Icu: 10 kA at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
Icu: 30 kA at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
Icu: 5 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
Icu: 3 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service short-circuit breaking capacity100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
75 % at 690 V AC 50/60 Hz conforming to IEC 60947-2
50 % at 440 V AC 50/60 Hz conforming to IEC 60947-2
75 % at 500 V AC 50/60 Hz conforming to IEC 60947-2
40 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
control typePush-button
Thermal protection adjustment range24…32 A
Magnetic tripping current416 A
[Ue] rated operational voltage690 V AC 50/60 Hz conforming to IEC 60947-2
[Ui] rated insulation voltage690 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947-2
Power dissipation2.5 W (per pole)
Mechanical durability100000 cycles
Electrical durability100000 cycles for AC-3
Maximum operating rate25 cyc/h
Connections - terminalsScrew clamp terminals 2 1…6 mm² - cable stiffness: solid
Screw clamp terminals 2 1.5…6 mm² - cable stiffness: flexible without cable end
Screw clamp terminals 2 1…4 mm² - cable stiffness: flexible with cable end
height89 mm
Width44.5 mm
Depth78 mm
Net weight0.26 kg
Environment
standardsIEC 60947-2
IEC 60947-4
Protective treatmentTH
IP degree of protectionIP20 conforming to IEC 60529
Ambient air temperature for operation-20…60 °C
Ambient air temperature for storage-40…80 °C
Fire resistance960 °C conforming to IEC 60695-2-1
Operating altitude2000 m
More Information
Weight0.260000
BrandSchneider Electric
ModelGZ1E32
Depth [cm]7.8
Width [cm]4.45
Height [cm]8.9
RangeTVS
FamilyPPCTR
