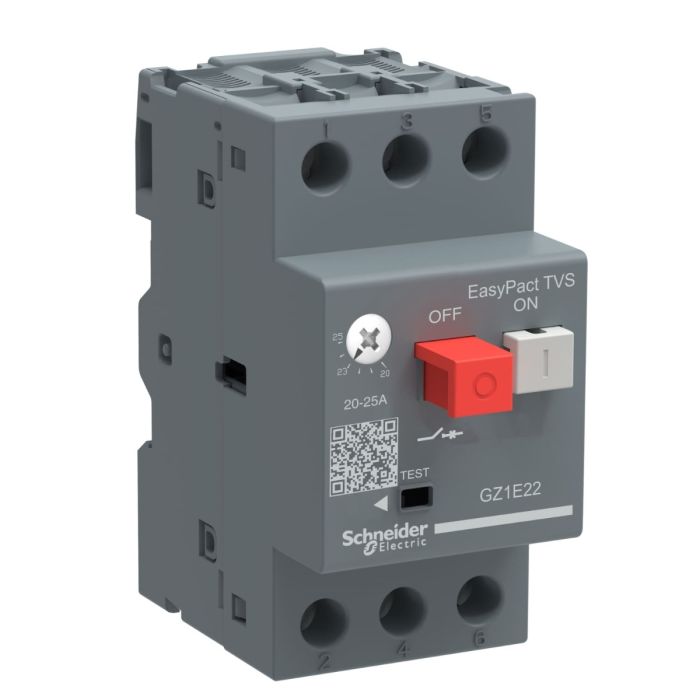

Schneider Electric Motor Circuit Breaker - EasyPact TVS - AC3 3P - 17-23A - Thermal-Magnetic Detection - GZ1E21

The GZ1E21 Motor Circuit Breaker, a part of Schneider Electric's EasyPact TVS series, is a robust and dependable solution for motor protection and circuit disconnection. This 3-pole circuit breaker is designed to handle currents ranging from 17 to 23 amperes. Equipped with thermal-magnetic detection, it offers enhanced safety and protection for your electrical circuits and motors.

Key Features:

Motor Protection: The GZ1E21 is specifically designed to protect motors from overloads and short circuits, ensuring the longevity of your motor-driven equipment.

3-Pole Design: With a 3-pole configuration, this circuit breaker provides comprehensive protection for three-phase electrical systems.

Current Range: This breaker supports a current range of 17 to 23 amperes, making it suitable for a variety of applications.

Thermal-Magnetic Detection: The thermal-magnetic detection mechanism ensures a quick response to overcurrents, offering reliable protection to your circuits.

Robust Build: Schneider Electric's quality construction ensures a long-lasting and durable motor circuit breaker.

Technical Specifications:

Product Type: Motor Circuit Breaker

Series: EasyPact TVS

Configuration: 3P (3-Pole)

Current Rating: 17-23A

Detection: Thermal-Magnetic

Specifications

Main
Range	Easy TeSys
Range of product	Easy TeSys Power
Product or component type	Circuit breaker
device short name	GZ1E
Device application	Motor
Trip unit technology	Thermal-magnetic
Suitability for isolation	Yes conforming to IEC 60947-1 appendix 7.1.6
Colour	Grey (RAL 7011)
Complementary
Poles description	3P
Network type	AC
Utilisation category	AC-3
Network frequency	50/60 Hz conforming to IEC 60947-2
Mounting mode	By clips
Mounting mode	By screws
mounting support	Rail
Mounting position	Any position
Motor power kW	5.5 kW at 230 V AC 50/60 Hz
	9 kW at 400 V AC 50/60 Hz
	11 kW at 440 V AC 50/60 Hz
	11 kW at 500 V AC 50/60 Hz
	18.5 kW at 690 V AC 50/60 Hz
Breaking capacity	Icu: 2 kA at 690 V AC 50/60 Hz conforming to IEC 60947-2
	Icu: 10 kA at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
	Icu: 30 kA at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
	Icu: 5 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
	Icu: 3 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service short-circuit breaking capacity	100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
	75 % at 690 V AC 50/60 Hz conforming to IEC 60947-2
	50 % at 440 V AC 50/60 Hz conforming to IEC 60947-2
	75 % at 500 V AC 50/60 Hz conforming to IEC 60947-2
	40 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
control type	Push-button
Thermal protection adjustment range	17…23 A
Magnetic tripping current	327 A
[Ue] rated operational voltage	690 V AC 50/60 Hz conforming to IEC 60947-2
[Ui] rated insulation voltage	690 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947-2
Power dissipation	2.5 W (per pole)
Mechanical durability	100000 cycles
Electrical durability	100000 cycles for AC-3
Maximum operating rate	25 cyc/h
Connections - terminals	Screw clamp terminals 2 1…6 mm² - cable stiffness: solid
	Screw clamp terminals 2 1.5…6 mm² - cable stiffness: flexible without cable end
	Screw clamp terminals 2 1…4 mm² - cable stiffness: flexible with cable end
height	89 mm
Width	44.5 mm
Depth	78 mm
Net weight	0.26 kg
Environment
standards	IEC 60947-4
standards	IEC 60947-2
Protective treatment	TH
IP degree of protection	IP20 conforming to IEC 60529
Ambient air temperature for operation	-20…60 °C
Ambient air temperature for storage	-40…80 °C
Fire resistance	960 °C conforming to IEC 60695-2-1
Operating altitude	2000 m

Weight	4.450000
Brand	Schneider Electric
Model	GZ1E21
Depth [cm]	7.8
Width [cm]	0.26
Height [cm]	8.9
Range	TVS
Family	PPCTR
