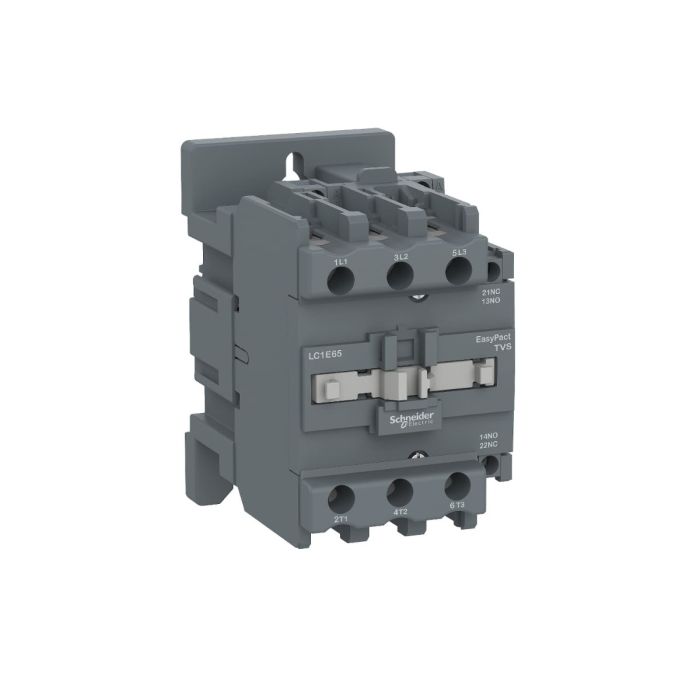

EasyPact TVS Contactor, 3P, 3NO, AC3, 440V, 65A, 110V AC Coil
Special Price EGP 3,332 Regular Price EGP 6,170
EasyPact TVS Contactor, 3P, 3NO, AC3, 440V, 65A, 110V AC Coil is available to buy in increments of 1
Quick Overview
Product or component type: Contactor
Number of poles: 3P
Contactor application: Motor control - Resistive load
Upgrade your electrical control systems with the Schneider Electric LC1E65F5 EasyPact TVS Contactor. This high-quality 3-pole (3P) contactor is designed for demanding applications, offering three normally open (NO) contacts and AC-3 rated performance at 440V, 65A. The included 110V AC coil provides reliable control for your industrial and commercial setups.
Key Features:
High Performance: The LC1E65F5 contactor delivers reliable performance with its 3 normally open (NO) contacts and AC-3 rating at 440V, 65A.
110V AC Coil: The contactor is equipped with a 110V AC coil for efficient control.
Technical Specifications:
Poles: 3P (3-Pole)
Contacts: 3 NO (Normally Open)
AC-3 Rating: 440V, 65A
Coil Voltage: 110V AC
Upgrade your electrical systems with the Schneider Electric LC1E65F5 EasyPact TVS Contactor for dependable and efficient control.
Specifications
| Main | |
| Range | Easy TeSys |
| Range of product | Easy TeSys Control |
| Product or component type | Contactor |
| Device short name | LC1E |
| contactor application | Motor control |
| Resistive load | |
| utilisation category | AC-3 |
| AC-1 | |
| Poles description | 3P |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 50/60 Hz |
| [Ie] rated operational current | 65 A (at <55 °C) at <= 440 V AC AC-3 for power circuit |
| 80 A (at <60 °C) at <= 440 V AC AC-1 for power circuit | |
| [Uc] control circuit voltage | 110 V AC 50 Hz |
| Complementary | |
| Motor power kW | 18.5 kW at 220...230 V AC 50/60 Hz (AC-3) |
| 30 kW at 380...400 V AC 50/60 Hz (AC-3) | |
| 37 kW at 415 V AC 50/60 Hz (AC-3) | |
| 37 kW at 440 V AC 50/60 Hz (AC-3) | |
| 37 kW at 500 V AC 50/60 Hz (AC-3) | |
| 37 kW at 660...690 V AC 50/60 Hz (AC-3) | |
| Pole contact composition | 3 NO |
| [Ith] conventional free air thermal current | 80 A (at 55 °C) |
| Irms rated making capacity | 650 A at 440 V AC for power circuit conforming to IEC 60947-4-1 |
| Rated breaking capacity | 520 A at 440 V for power circuit conforming to IEC 60947 |
| [Icw] rated short-time withstand current | 520 A 40 °C - 10 s for power circuit |
| 260 A 40 °C - 60 s for power circuit | |
| 110 A 40 °C - 600 s for power circuit | |
| Associated fuse rating | 10 A gG at <= 690 V coordination type 1 for control circuit conforming to IEC 60947-5-1 |
| 125 A gG at <= 690 V coordination type 1 for power circuit | |
| Average impedance | 1 mOhm - Ith 80 A 50 Hz for power circuit |
| Power dissipation per pole | 4.2 W AC-3 |
| 6.4 W AC-1 | |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-4-1 |
| Overvoltage category | III |
| Pollution degree | 3 |
| [Uimp] rated impulse withstand voltage | 6 kV coil not connected to the power circuit conforming to IEC 60947 |
| Mechanical durability | 5000000 cycles |
| Electrical durability | 350000 cycles AC-1 |
| 900000 cycles AC-3 | |
| Control circuit type | AC at 50 Hz |
| Control circuit voltage limits | 0.85...1.1 Uc (55 °C):operational 50 Hz |
| 0.3...0.6 Uc (55 °C):drop-out 50 Hz | |
| Inrush power in VA | 160 VA 50 Hz cos phi 0.75 (at 20 °C) |
| 140 VA 60 Hz cos phi 0.75 (at 20 °C) | |
| Hold-in power consumption in VA | 15 VA 50 Hz cos phi 0.3 (at 20 °C) |
| 13 VA 60 Hz cos phi 0.3 (at 20 °C) | |
| Heat dissipation | 6…10 W for control circuit |
| Operating time | 20...26 ms on closing |
| 8...12 ms on opening | |
| Maximum operating rate | 1200 cyc/h 60 °C |
| Connections - terminals | Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end |
| Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end | |
| Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end | |
| Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end | |
| Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end | |
| Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end | |
| Power circuit: screw clamp terminals 1 2.5…25 mm² - cable stiffness: flexible with cable end | |
| Power circuit: screw clamp terminals 2 2.5…10 mm² - cable stiffness: flexible with cable end | |
| Power circuit: screw clamp terminals 1 2.5…25 mm² - cable stiffness: solid without cable end | |
| Power circuit: screw clamp terminals 2 2.5…16 mm² - cable stiffness: solid without cable end | |
| Tightening torque | Control circuit: 1.2 N.m |
| Power circuit: 5 N.m | |
| Auxiliary contact composition | 1 NO + 1 NC |
| Minimum switching voltage | 17 V for control circuit |
| Minimum switching current | 5 mA for control circuit |
| Insulation resistance | > 10 MOhm for control circuit |
| Non-overlap time | 1.5 ms on energisation guaranteed between NC and NO contact |
| 1.5 ms on de-energisation guaranteed between NC and NO contact | |
| mounting support | DIN rail |
| Plate | |
| Environment | |
| Standards | IEC 60947-4-1 |
| IEC 60947-1 | |
| IEC 60947-5-1 | |
| product certifications | EAC |
| CE | |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Protective treatment | TH (pollution degree 3) conforming to IEC 60068-2-30 test Db |
| Permissible ambient air temperature around the device | -20…70 °C at Uc |
| -60…80 °C storage | |
| -5…55 °C operation | |
| Operating altitude | 3000 m without derating |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Mechanical robustness | Vibrations contactor open (1.5 Gn, 5...300 Hz) |
| Vibrations contactor closed (3 Gn, 5...300 Hz) | |
| Shocks contactor open (6 Gn for 11 ms) | |
| Shocks contactor closed (7 Gn for 11 ms) | |
| height | 127 mm |
| Width | 75 mm |
| Depth | 114 mm |
| Net weight | 0.98 kg |
| Weight | 0.980000 |
|---|---|
| Brand | Schneider Electric |
| Model | LC1E65F5 |
| Depth [cm] | 11.4 |
| Width [cm] | 7.5 |
| Height [cm] | 12.7 |
| Range | TVS |
| Family | PPCTR |
