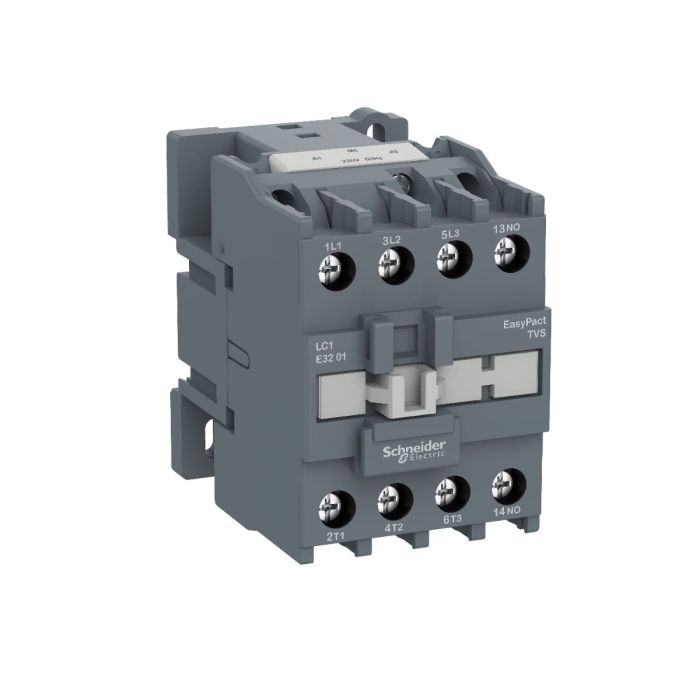

Contactor EasyPact TVS, 3P, 3NO, AC3 440V, 32A, 110V AC Coil
Product or component type: Contactor
Number of poles: 3P
Contactor application: Motor control - Resistive load
Upgrade your electrical control systems with the Schneider Electric LC1E3210F5 EasyPact TVS Contactor. This three-pole (3P) contactor features three normally open (NO) contacts, making it suitable for a wide range of applications. With a rated current of 32A and a coil voltage of 110V AC, this contactor is designed for AC3 440V applications, ensuring reliable and efficient performance.
Key Features:
Three-Pole Contact: The LC1E3210F5 contactor offers three normally open (NO) contacts, providing versatile switching capabilities for your electrical systems.
Wide Voltage Range: With a coil voltage of 110V AC and compatibility with AC3 440V applications, this contactor is suitable for various industrial and commercial uses.
Technical Specifications:
Configuration: 3P3 NO (Three-Pole, Three Normally Open) Contacts
Rated Current: 32A
Coil Voltage: 110V AC
AC3 Rated Voltage: 440V
Upgrade your control systems with the Schneider Electric LC1E3210F5 EasyPact TVS Contactor, offering reliable switching capabilities for your electrical applications.
Specifications
| Main | |
| Range | Easy TeSys |
| Range of product | Easy TeSys Control |
| Product or component type | Contactor |
| Device short name | LC1E |
| contactor application | Motor control |
| Resistive load | |
| utilisation category | AC-1 |
| AC-3 | |
| Poles description | 3P |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 50/60 Hz |
| [Ie] rated operational current | 32 A (at <55 °C) at <= 440 V AC AC-3 for power circuit |
| 50 A (at <60 °C) at <= 440 V AC AC-1 for power circuit | |
| [Uc] control circuit voltage | 110 V AC 50 Hz |
| Complementary | |
| Motor power kW | 7.5 kW at 220...230 V AC 50/60 Hz |
| 15 kW at 380...400 V | |
| 15 kW at 415 V | |
| 15 kW at 440 V | |
| 18.5 kW at 500 V | |
| 18.5 kW at 660...690 V | |
| Pole contact composition | 3 NO |
| [Ith] conventional free air thermal current | 50 A (at 55 °C) |
| Irms rated making capacity | 320 A at 440 V AC for power circuit conforming to IEC 60947-4-1 |
| Rated breaking capacity | 256 A at 440 V for power circuit conforming to IEC 60947 |
| [Icw] rated short-time withstand current | 260 A 40 °C - 10 s for power circuit |
| 138 A 40 °C - 60 s for power circuit | |
| 60 A 40 °C - 600 s for power circuit | |
| Associated fuse rating | 10 A gG at <= 690 V coordination type 1 for control circuit conforming to IEC 60947-5-1 |
| 63 A gG at <= 690 V coordination type 1 for power circuit | |
| Average impedance | 2.5 mOhm - Ith 50 A 50 Hz for power circuit |
| Power dissipation per pole | 2 W AC-3 |
| 5 W AC-1 | |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-4-1 |
| Overvoltage category | III |
| Pollution degree | 3 |
| [Uimp] rated impulse withstand voltage | 6 kV coil not connected to the power circuit conforming to IEC 60947 |
| Mechanical durability | 8000000 cycles |
| Electrical durability | 1000000 cycles AC-3 |
| 350000 cycles AC-1 | |
| Control circuit type | AC at 50 Hz |
| Control circuit voltage limits | 0.85...1.1 Uc (55 °C):operational 50 Hz |
| 0.3...0.6 Uc (55 °C):drop-out 50 Hz | |
| Inrush power in VA | 95 VA 50 Hz cos phi 0.75 (at 20 °C) |
| 95 VA 60 Hz cos phi 0.75 (at 20 °C) | |
| Hold-in power consumption in VA | 8.3 VA 50 Hz cos phi 0.3 (at 20 °C) |
| 8.5 VA 60 Hz cos phi 0.3 (at 20 °C) | |
| Heat dissipation | 2…3 W for control circuit |
| Operating time | 12...22 ms on closing |
| 4...19 ms on opening | |
| Maximum operating rate | 1800 cyc/h 60 °C |
| Connections - terminals | Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end |
| Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end | |
| Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end | |
| Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end | |
| Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end | |
| Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end | |
| Power circuit: screw clamp terminals 1 1.5…6 mm² - cable stiffness: solid without cable end | |
| Power circuit: screw clamp terminals 2 1.5…6 mm² - cable stiffness: solid without cable end | |
| Power circuit: screw clamp terminals 1 1…6 mm² - cable stiffness: flexible with cable end | |
| Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible with cable end | |
| Tightening torque | Control circuit: 1.2 N.m |
| Power circuit: 2.1 N.m | |
| Auxiliary contact composition | 1 NO |
| Minimum switching voltage | 17 V for control circuit |
| Minimum switching current | 5 mA for control circuit |
| Insulation resistance | > 10 MOhm for control circuit |
| Non-overlap time | 1.5 ms on energisation guaranteed between NC and NO contact |
| 1.5 ms on de-energisation guaranteed between NC and NO contact | |
| mounting support | Plate |
| DIN rail | |
| Environment | |
| Standards | IEC 60947-5-1 |
| IEC 60947-1 | |
| IEC 60947-4-1 | |
| product certifications | EAC |
| CE | |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Protective treatment | TH (pollution degree 3) conforming to IEC 60068-2-30 test Db |
| Permissible ambient air temperature around the device | -20…70 °C at Uc |
| -60…80 °C storage | |
| -5…55 °C operation | |
| Operating altitude | 3000 m without derating |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Mechanical robustness | Vibrations contactor open (1.5 Gn, 5...300 Hz) |
| Vibrations contactor closed (3 Gn, 5...300 Hz) | |
| Shocks contactor closed (10 Gn for 11 ms) | |
| Shocks contactor open (6 Gn for 11 ms) | |
| height | 84 mm |
| Width | 56 mm |
| Depth | 86 mm |
| Net weight | 0.45 kg |
| Weight | 0.450000 |
|---|---|
| Brand | Schneider Electric |
| Model | LC1E3210F5 |
| Depth [cm] | 8.6 |
| Width [cm] | 5.6 |
| Height [cm] | 8.4 |
| Range | TVS |
| Family | PPCTR |
