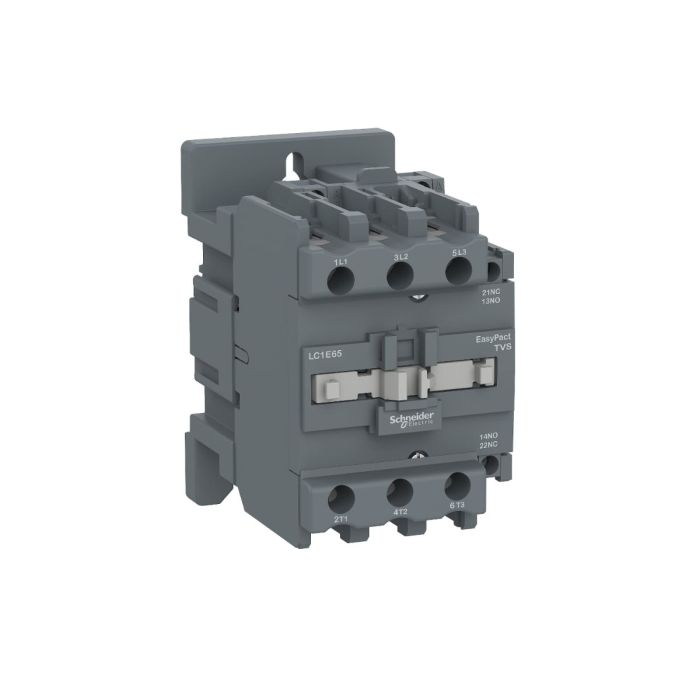

Contactor EasyPact TVS, 3P, 3NO, AC-3 440V, 50A, 220V AC Coil, 50Hz

In stock
SKU
LC1E50M5
Special Price EGP 2,257 Regular Price EGP 4,180
Quick Overview

Product or component type: Contactor
Number of poles: 3P
Contactor application: Resistive load - Motor control

The Schneider Electric LC1E50M5 Contactor is a reliable and versatile electrical component designed for various applications. This 3P (3-pole) contactor features three normally open (3NO) contacts and is rated for AC-3 duty at 440V with a 50A current rating. The integrated 220V AC coil operating at 50Hz ensures efficient performance.



Key Features:

3P Contactor: This contactor is equipped with three poles, providing essential control in electrical circuits.

3NO Contacts: The three normally open contacts offer flexibility for your control applications.

AC-3 Rated: Suitable for AC-3 duty at 440V, making it ideal for various industrial and commercial applications.

Coil Voltage: The contactor features a 220V AC coil with a 50Hz frequency for reliable operation.



Technical Specifications:

Pole Configuration: 3P (3-Pole)

Contact Configuration: 3NO (Three Normally Open Contacts)

Rated Voltage: AC-3 440V

Current Rating: 50A

Coil Voltage: 220V AC, 50Hz



The Schneider Electric LC1E50M5 Contactor is a robust and efficient solution for your electrical control needs. Whether you're working in industrial or commercial settings, this contactor ensures reliable performance.



Specifications

Main
RangeEasy TeSys
Range of productEasy TeSys Control
Product or component typeContactor
Device short nameLC1E
contactor applicationResistive load
Motor control
utilisation categoryAC-1
AC-3
Poles description3P
[Ue] rated operational voltagePower circuit: <= 690 V AC 50/60 Hz
[Ie] rated operational current50 A (at <55 °C) at <= 440 V AC AC-3 for power circuit
70 A (at <55 °C) at <= 440 V AC AC-1 for power circuit
[Uc] control circuit voltage220 V AC 50 Hz
Complementary
Motor power kW15 kW at 220...230 V AC 50/60 Hz (AC-3)
22 kW at 380...400 V AC 50/60 Hz (AC-3)
25 kW at 415 V AC 50/60 Hz (AC-3)
30 kW at 440 V AC 50/60 Hz (AC-3)
30 kW at 500 V AC 50/60 Hz (AC-3)
33 kW at 660...690 V AC 50/60 Hz (AC-3)
Pole contact composition3 NO
[Ith] conventional free air thermal current70 A (at 55 °C)
Irms rated making capacity500 A at 440 V AC for power circuit conforming to IEC 60947-4-1
Rated breaking capacity400 A at 440 V for power circuit conforming to IEC 60947
[Icw] rated short-time withstand current400 A 40 °C - 10 s for power circuit
208 A 40 °C - 60 s for power circuit
84 A 40 °C - 600 s for power circuit
Associated fuse rating10 A gG at <= 690 V coordination type 1 for control circuit conforming to IEC 60947-5-1
100 A gG at <= 690 V coordination type 1 for power circuit
Average impedance1.5 mOhm - Ith 70 A 50 Hz for power circuit
Power dissipation per pole3.8 W AC-3
7.4 W AC-1
[Ui] rated insulation voltage690 V conforming to IEC 60947-4-1
Overvoltage categoryIII
Pollution degree3
[Uimp] rated impulse withstand voltage6 kV coil not connected to the power circuit conforming to IEC 60947
Mechanical durability5000000 cycles
Electrical durability350000 cycles AC-1
900000 cycles AC-3
Control circuit typeAC at 50 Hz
Control circuit voltage limits0.85...1.1 Uc (55 °C):operational 50 Hz
0.3...0.6 Uc (55 °C):drop-out 50 Hz
Inrush power in VA160 VA 50 Hz cos phi 0.75 (at 20 °C)
140 VA 60 Hz cos phi 0.75 (at 20 °C)
Hold-in power consumption in VA15 VA 50 Hz cos phi 0.3 (at 20 °C)
13 VA 60 Hz cos phi 0.3 (at 20 °C)
Heat dissipation6…10 W for control circuit
Operating time20...26 ms on closing
8...12 ms on opening
Maximum operating rate1200 cyc/h 60 °C
Connections - terminalsControl circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end
Power circuit: screw clamp terminals 1 2.5…25 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminals 2 2.5…10 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminals 1 2.5…25 mm² - cable stiffness: solid without cable end
Power circuit: screw clamp terminals 2 2.5…16 mm² - cable stiffness: solid without cable end
Tightening torqueControl circuit: 1.2 N.m
Power circuit: 5 N.m
Auxiliary contact composition1 NO + 1 NC
Minimum switching voltage17 V for control circuit
Minimum switching current5 mA for control circuit
Insulation resistance> 10 MOhm for control circuit
Non-overlap time1.5 ms on energisation guaranteed between NC and NO contact
1.5 ms on de-energisation guaranteed between NC and NO contact
mounting supportPlate
DIN rail
Environment
StandardsIEC 60947-1
IEC 60947-5-1
IEC 60947-4-1
product certificationsEAC
CE
IP degree of protectionIP2X conforming to IEC 60529
Protective treatmentTH (pollution degree 3) conforming to IEC 60068-2-30 test Db
Permissible ambient air temperature around the device-20…70 °C at Uc
-60…80 °C storage
-5…55 °C operation
Operating altitude3000 m without derating
Fire resistance850 °C conforming to IEC 60695-2-1
Mechanical robustnessVibrations contactor open (1.5 Gn, 5...300 Hz)
Vibrations contactor closed (3 Gn, 5...300 Hz)
Shocks contactor open (6 Gn for 11 ms)
Shocks contactor closed (7 Gn for 11 ms)
height127 mm
Width75 mm
Depth114 mm
Net weight0.98 kg
More Information
Weight0.980000
BrandSchneider Electric
ModelLC1E50M5
Depth [cm]11.4
Width [cm]7.5
Height [cm]12.7
