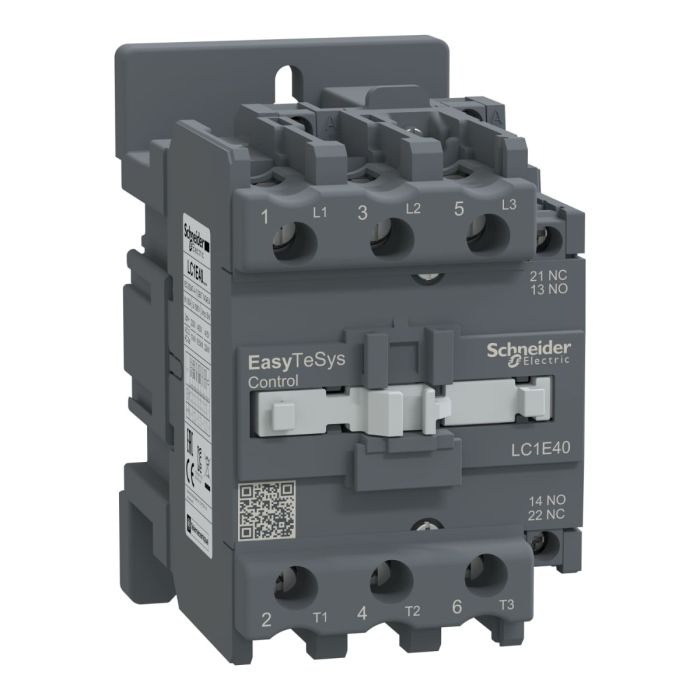

Contactor EasyPact TVS, 3P, 3NO, AC-3 440V, 40A, 220V AC Coil, 50-60Hz

In stock
SKU
LC1E40M7
Special Price EGP 2,230 Regular Price EGP 4,129
Quick Overview

Product or component type: Contactor
Number of poles: 3P
Contactor application: Resistive load - Motor control

The Schneider Electric LC1E40M7 Contactor is a reliable and versatile electrical component designed for various applications. This 3P (3-pole) contactor features three normally open (3NO) contacts and is rated for AC-3 duty at 440V with a 40A current rating. The integrated 220V AC coil operating at 50-60Hz ensures efficient performance.



Key Features:

3P Contactor: This contactor is equipped with three poles, providing essential control in electrical circuits.

3NO Contacts: The three normally open contacts offer flexibility for your control applications.

AC-3 Rated: Suitable for AC-3 duty at 440V, making it ideal for various industrial and commercial applications.

Coil Voltage: The contactor features a 220V AC coil with a 50-60Hz frequency for reliable operation.



Technical Specifications:

Pole Configuration: 3P (3-Pole)

Contact Configuration: 3NO (Three Normally Open Contacts)

Rated Voltage: AC-3 440V

Current Rating: 40A

Coil Voltage: 220V AC, 50-60Hz



The Schneider Electric LC1E40M7 Contactor is a robust and efficient solution for your electrical control needs. Whether you're working in industrial or commercial settings, this contactor ensures reliable performance.



Specifications

Main
RangeEasy TeSys
Range of productEasy TeSys Control
Product or component typeContactor
Device short nameLC1E
contactor applicationResistive load
Motor control
utilisation categoryAC-1
AC-3
Poles description3P
[Ue] rated operational voltagePower circuit: <= 690 V AC 50/60 Hz
[Ie] rated operational current40 A (at <55 °C) at <= 440 V AC AC-3 for power circuit
60 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
[Uc] control circuit voltage220 V AC 50/60 Hz
Complementary
Motor power kW18.5 kW at 380...400 V
11 kW at 220...230 V AC 50/60 Hz
22 kW at 415 V
22 kW at 440 V
22 kW at 500 V
30 kW at 660...690 V
Pole contact composition3 NO
[Ith] conventional free air thermal current60 A (at 55 °C)
Irms rated making capacity400 A at 440 V AC for power circuit conforming to IEC 60947-4-1
Rated breaking capacity320 A at 440 V for power circuit conforming to IEC 60947
[Icw] rated short-time withstand current320 A 40 °C - 10 s for power circuit
165 A 40 °C - 60 s for power circuit
72 A 40 °C - 600 s for power circuit
Associated fuse rating10 A gG at <= 690 V coordination type 1 for control circuit conforming to IEC 60947-5-1
80 A gG at <= 690 V coordination type 1 for power circuit
Average impedance1.5 mOhm - Ith 60 A 50 Hz for power circuit
Power dissipation per pole2.4 W AC-3
5.4 W AC-1
[Ui] rated insulation voltage690 V conforming to IEC 60947-4-1
Overvoltage categoryIII
Pollution degree3
[Uimp] rated impulse withstand voltage6 kV coil not connected to the power circuit conforming to IEC 60947
Mechanical durability5000000 cycles
Electrical durability350000 cycles AC-1
900000 cycles AC-3
Control circuit typeAC at 50/60 Hz
Control circuit voltage limits0.85...1.1 Uc (55 °C):operational 50/60 Hz
0.3...0.6 Uc (55 °C):drop-out 50/60 Hz
Inrush power in VA160 VA 50 Hz cos phi 0.75 (at 20 °C)
140 VA 60 Hz cos phi 0.75 (at 20 °C)
Hold-in power consumption in VA15 VA 50 Hz cos phi 0.3 (at 20 °C)
13 VA 60 Hz cos phi 0.3 (at 20 °C)
Heat dissipation6…10 W for control circuit
Operating time20...26 ms on closing
8...12 ms on opening
Maximum operating rate1200 cyc/h 55 °C
Connections - terminalsControl circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end
Power circuit: screw clamp terminals 1 2.5…25 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminals 2 2.5…10 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminals 1 2.5…25 mm² - cable stiffness: solid without cable end
Power circuit: screw clamp terminals 2 2.5…16 mm² - cable stiffness: solid without cable end
Tightening torqueControl circuit: 1.2 N.m
Power circuit: 5 N.m
Auxiliary contact composition1 NO + 1 NC
Minimum switching voltage17 V for control circuit
Minimum switching current5 mA for control circuit
Insulation resistance> 10 MOhm for control circuit
Non-overlap time1.5 ms on energisation guaranteed between NC and NO contact
1.5 ms on de-energisation guaranteed between NC and NO contact
mounting supportPlate
DIN rail
Environment
StandardsIEC 60947-4-1
IEC 60947-1
IEC 60947-5-1
product certificationsEAC
CE
IP degree of protectionIP2X conforming to IEC 60529
Protective treatmentTH (pollution degree 3) conforming to IEC 60068-2-30 test Db
Permissible ambient air temperature around the device-20…70 °C at Uc
-60…80 °C storage
-5…55 °C operation
Operating altitude3000 m without derating
Fire resistance850 °C conforming to IEC 60695-2-1
Mechanical robustnessVibrations contactor open (1.5 Gn, 5...300 Hz)
Vibrations contactor closed (3 Gn, 5...300 Hz)
Shocks contactor open (6 Gn for 11 ms)
Shocks contactor closed (7 Gn for 11 ms)
height127 mm
Width75 mm
Depth114 mm
Net weight0.98 kg
More Information
Weight0.980000
BrandSchneider Electric
ModelLC1E40M7
Depth [cm]11.4
Width [cm]7.5
Height [cm]12.7
