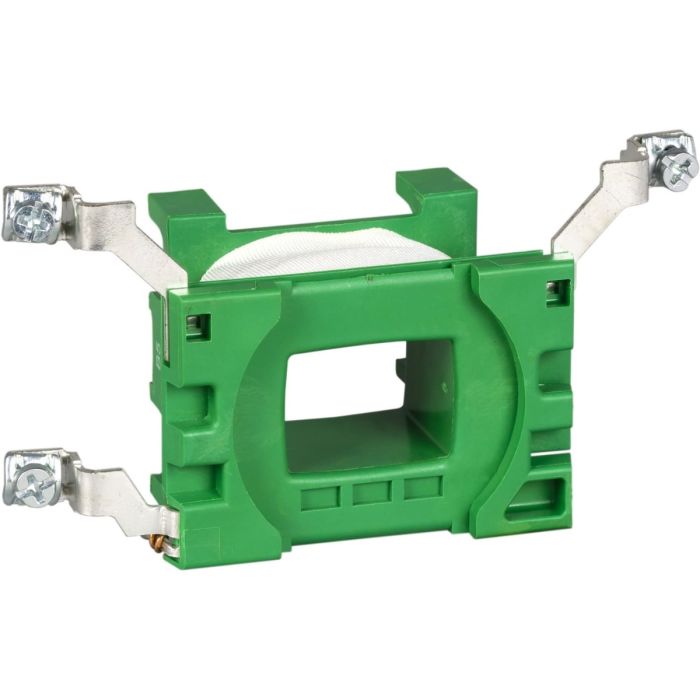

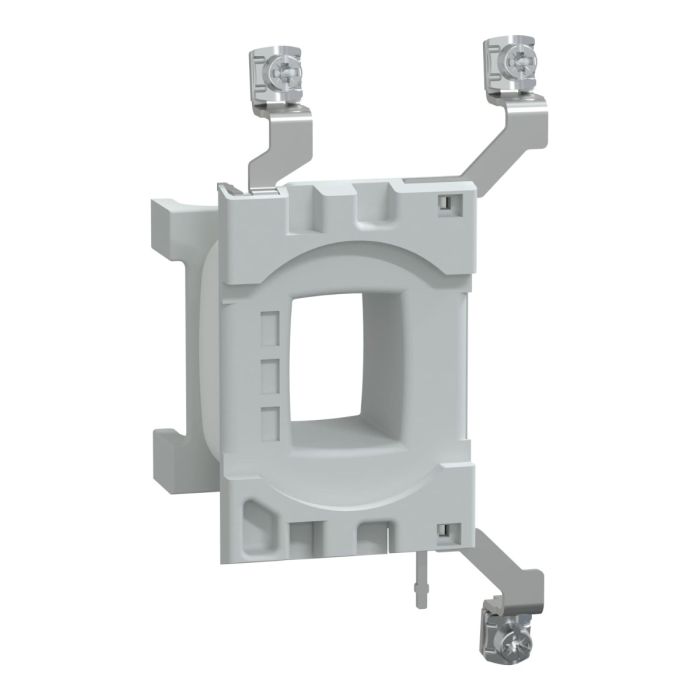

Contactor Coil, Spare Part for LC1E80-E95
Product or component type: Contactor coil
Control circuit type: AC at 50 Hz standard
[Uc] control circuit voltage: 24 V AC 50 Hz
The Schneider Electric LAEX4M5 Contactor Coil is an essential spare part designed for compatibility with LC1E80-E95 contactors. This contactor coil serves a critical role in maintaining the functionality of your electrical contactor, enabling precise control over your electrical circuits. Operating at a voltage rating of 220V AC 50Hz, it supplies the required power to engage the contactor, effectively managing your electrical loads.
Key Features:
Specific Compatibility: Designed as a dedicated spare part for LC1E80-E95 contactors.
Reliable Performance: Ensures optimal functioning of the contactor, providing peace of mind.
Voltage Specification: Operates at 220V AC 50Hz to support a wide range of electrical applications.
Product Specifications:
Voltage Rating: 220V AC 50Hz
Maintain the dependable operation of your electrical contactor by utilizing the Schneider Electric LAEX4M5 Contactor Coil. This spare part is crafted to uphold the efficiency of your electrical circuits, delivering consistent and efficient control.
Specifications
| Main | |
| Range | Easy TeSys |
| Range of product | Easy TeSys Control |
| Product or component type | Contactor coil |
| Device short name | LAEX |
| Product compatibility | LC1E80...E95 |
| Control circuit type | AC at 50 Hz standard |
| [Uc] control circuit voltage | 220 V AC 50 Hz |
| Average resistance | 127 Ohm at 20 °C |
| Inductance of closed circuit | 7.5 H |
| Complementary | |
| Control circuit voltage limits | Operational: 0.85...1.1 Uc at 50 Hz (at <55 °C) |
| Inrush power in VA | 200 VA 50 Hz cos phi 0.75 (at 20 °C) |
| Hold-in power consumption in VA | 20 VA 50 Hz cos phi 0.3 (at 20 °C) |
| Environment | |
| Ambient air temperature for operation | -5…55 °C |
| Net weight | 0.145 kg |
| Weight | 0.145000 |
|---|---|
| Brand | Schneider Electric |
| Model | LAEX4M5 |
| Range | TVS |
| Family | PPCTR |
