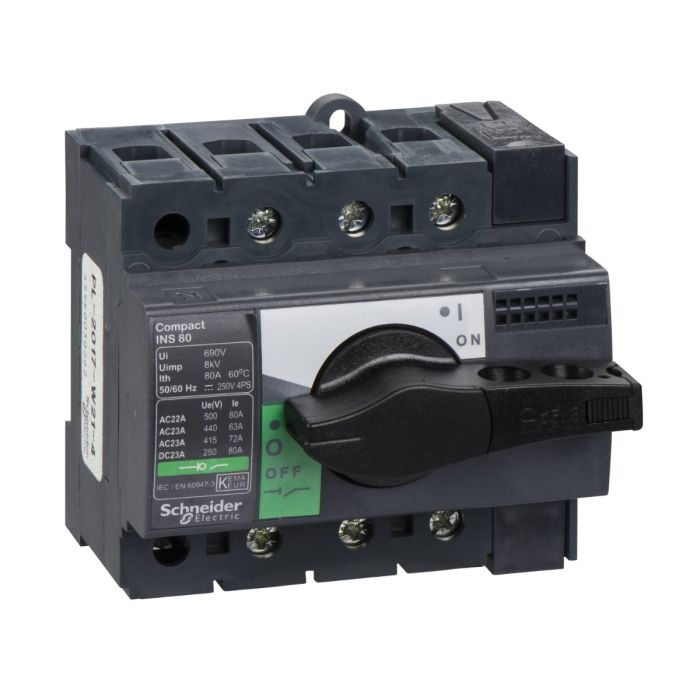

Compact INS80 Switch Disconnector, 3 Poles, 80A
Product or component type: Switch disconnector
Control type: Rotary handle
Number of poles: 3P
[Ith] conventional free air thermal current: 80 A at 60 °C
Discover the Schneider Electric Compact INS80 Switch Disconnector, a dependable and versatile solution for electrical control and isolation. This switch disconnector is designed to provide efficient disconnection and isolation in electrical circuits, ensuring the safety and control of power distribution.
Key Features:
80A Rating: With an 80A rating, this switch disconnector is capable of handling a wide range of electrical loads, making it suitable for various applications.
3 Poles: The 3-pole configuration makes it adaptable and ideal for multiple applications, providing added versatility.
Compact Design: Its compact design allows for easy installation and efficient use of space in your electrical panel or enclosure.
Technical Specifications:
Current Rating: 80A
Poles: 3
| Specifications | |
Main | |
| Range | ComPact |
| Product name | ComPacT INS |
| Product or component type | Switch disconnector |
| Poles description | 3P |
| Network type | DC |
| AC | |
| Network frequency | 50/60 Hz |
| [Ie] rated operational current | AC-23A: 40 A AC 50/60 Hz 500 V |
| AC-23A: 63 A AC 50/60 Hz 440/480 V 2 poles in series | |
| AC-22A: 80 A AC 50/60 Hz 220/240 V | |
| AC-22A: 80 A AC 50/60 Hz 380/415 V | |
| AC-22A: 80 A AC 50/60 Hz 440/480 V | |
| AC-22A: 80 A AC 50/60 Hz 500 V | |
| AC-23A: 72 A AC 50/60 Hz 380/415 V | |
| AC-23A: 80 A AC 50/60 Hz 220/240 V | |
| DC-22A: 80 A DC 50/60 Hz 125 V 2 poles in series | |
| DC-23A: 80 A DC 125 V 2 poles in series | |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ith] conventional free air thermal current | 80 A at 60 °C |
| [Icm] rated short-circuit making capacity | 15 kA switch-disconnector alone 500 V AC at 50/60 Hz |
| 75 kA with upstream protection circuit breaker 500 V AC at 50/60 Hz | |
| [Ue] rated operational voltage | 125 V DC |
| 500 V AC 50/60 Hz | |
| Suitability for isolation | Yes |
| Contact position indicator | Yes |
| Visible break | No |
| Pollution degree | 3 |
| Complementary | |
| control type | Rotary handle |
| handle colour | Black |
| Mounting mode | Fixed |
| mounting support | Plate |
| DIN rail | |
| Upside connection | Front |
| downside connection | Front |
| Cable cross section | 1.5…50 mm² |
| Maximum power | AC-23: 22 kW at 500/525 V AC 50/60 Hz |
| AC-23: 22 kW at 220/240 V AC 50/60 Hz | |
| AC-23: 37 kW at 380/415 V AC 50/60 Hz | |
| AC-23: 37 kW at 440 V AC 50/60 Hz | |
| Rated duty | Uninterrupted |
| Intermittent duty class | Class 120 - 60 % |
| enclosure dimensions for Ithe | 190 mm x 115 mm x 55 mm |
| [Icw] rated short-time withstand current | 0.067 kA during 20 s conforming to IEC 60947-3 |
| 1.73 kA during 3 s conforming to IEC 60947-3 | |
| 3 kA during 1 s conforming to IEC 60947-3 | |
| 5.5 kA during 30 s conforming to IEC 60947-3 | |
| Mechanical durability | 20000 cycles |
Secure your electrical circuits with the Schneider Electric Compact INS80 Switch Disconnector (28904). Whether you need control and isolation in industrial, commercial, or residential settings, this switch disconnector offers a reliable solution.
| Weight | 0.500000 |
|---|---|
| Brand | Schneider Electric |
| Model | 28904 |
| Depth [cm] | 6.25 |
| Width [cm] | 9 |
| Height [cm] | 8.5 |
| Range | CCB others |
| Family | PPCCB |
