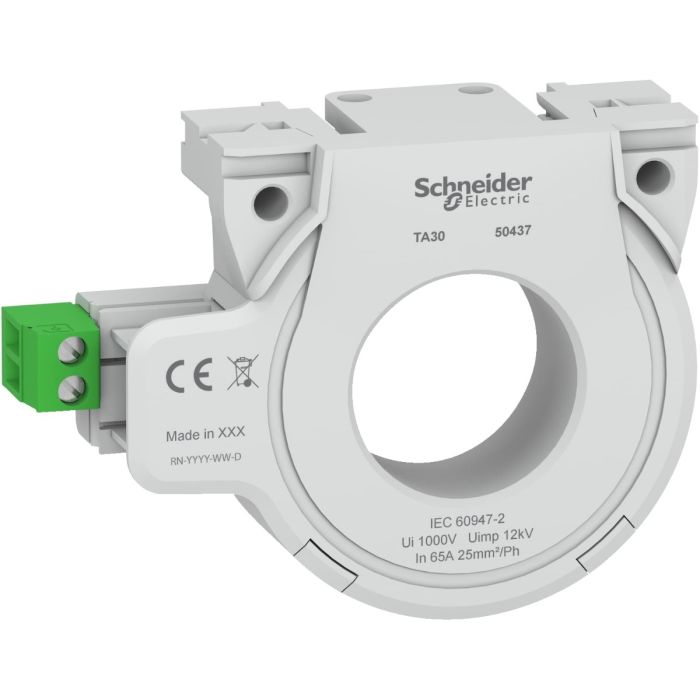

Schneider Electric, Closed toroid A type,for Vigirex and Vigilhom,TA30,inner diameter 30 mm,rated current 65 A

In stock
SKU
50437
Special Price EGP 11,278 Regular Price EGP 17,089
2255.6 Reward Points will be used to purchase this product
Schneider Electric, Closed toroid A type,for Vigirex and Vigilhom,TA30,inner diameter 30 mm,rated current 65 A is available to buy in increments of 1
Quick Overview

Range: VigiPacT
Product or Component Type: Earth leakage current sensor
Device Application: Equipment monitoring and control
current sensor type: A type closed toroid

This toroid is dedicated to Vigilohm Insulation Fault locators,and to VigiPacT type A residual current protection and monitoring relays. It allows the monitoring of the injected component from Vigilohm Insulation Monitor,and the measurement of a current rating up to 65A for VigiPacT monitoring and protection relays. The transformer ratio is 1/1000. The inner diameter of the toroid is 30 millimeters and the weight is 0.120kg. The cables must be centered within the toroid and the diameter represented by all these cables should not exceed 15 millimeters. The maximum cross section per phase (R,S,T,N) is 25mm² for a copper conductor.



Specifications

Main


RangeVigiPacT
Device short nameTA30
Product or component typeEarth leakage current sensor
Device applicationEquipment monitoring and control
Range compatibilityVigiPacT RH10M residual current protection relay
 VigiPacT RH10P residual current protection relay
 VigiPacT RH21M residual current protection relay
 VigiPacT RH21P residual current protection relay
 VigiPacT RH68M residual current protection relay
 VigiPacT RH86M residual current protection relay
 VigiPacT RH86P residual current protection relay
 VigiPacT RH99M residual current protection relay
 VigiPacT RH99P residual current protection relay
 VigiPacT RH197M residual current protection relay
 VigiPacT RH197P residual current protection relay
 VigiPacT RHU residual current protection relay
 VigiPacT RHUs residual current protection relay
 VigiPacT RMH residual current protection relay
current sensor typeA type closed toroid
[Ie] rated operational current65 A
Complementary
Transformer ratio1/1000
Network typeAC/DC
Network frequency45...440 Hz
[Icw] rated short-time withstand current85 kA for 0.5 s
Residual short-circuit withstand current85 kA / 0.5 s conforming to IEC 60947-2
[Ui] rated insulation voltage1000 V
Overvoltage categoryIV
[Uimp] rated impulse withstand voltage12 kV
Mounting modeFixed (plain backplate)
 Fixed (profiled sheet metal)
 Fixed (slotted backplate)
 Clip-on (DIN rail)
 Clip-on (Vigirex relay)
Calorific value0.98 MJ
Connections - terminalsScrew connection 0.22 mm²
Diameter30 mm inner:
Cable outer diameter15 mm: 25 mm² (maximum)
Net weight0.12 kg
height82 mm
Width60 mm
Depth29 mm
Environment
IP degree of protectionConnectors: IP20
 IP30
Environmental characteristicExposure to damp heat not in service (25...55 °C, RH 95 %) : 28 cycles conforming to IEC 60068-2-30
 Salt mist: Kb/2 conforming to IEC 60068-2-52
 Exposure to damp heat in service: category C2: 48 hours conforming to IEC 60068-2-56
Pollution degreeLevel 3 conforming to IEC 60664-1
Ambient air temperature for operation-35…70 °C
Ambient air temperature for storage-55…85 °C
standardsIEC 60947-2
product certificationsCE









More Information
Weight0.130000
BrandSchneider Electric
ModelTA30
Device ApplicationEquipment monitoring and control
Depth [cm]2.9
Width [cm]6
Height [cm]8.2
RangeCCB others
FamilyPPCCB
TypeEarth leakage current sensor
Compatible With

VigiPacT RH10M residual current protection relay
VigiPacT RH10P residual current protection relay
VigiPacT RH21M residual current protection relay
VigiPacT RH21P residual current protection relay
VigiPacT RH68M residual current protection relay
VigiPacT RH86M residual current protection relay
VigiPacT RH86P residual current protection relay
VigiPacT RH99M residual current protection relay
VigiPacT RH99P residual current protection relay
VigiPacT RH197M residual current protection relay
VigiPacT RH197P residual current protection relay
VigiPacT RHU residual current protection relay
VigiPacT RHUs residual current protection relay
VigiPacT RMH residual current protection relay
