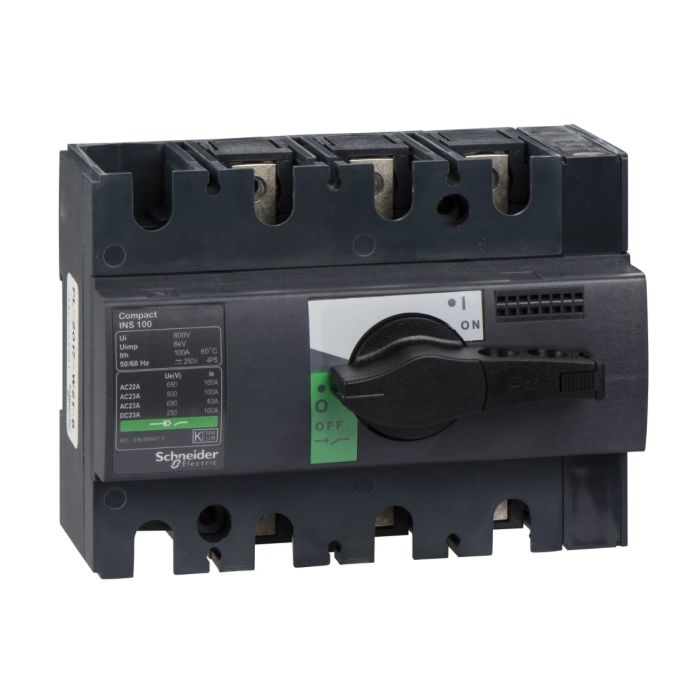

Compact INS100 Switch Disconnector, 3 Poles, 100A
Product or component type: Switch disconnector
Control type: Rotary handle
Number of poles: 3P
[Ith] conventional free air thermal current: 100 A at 60 °C
Discover the Schneider Electric Compact INS100 Switch Disconnector, a dependable and versatile solution for electrical control and isolation. This switch disconnector is designed to provide efficient disconnection and isolation in electrical circuits, ensuring the safety and control of power distribution.
Key Features:
100A Rating: With a 100A rating, this switch disconnector is capable of handling a wide range of electrical loads, making it suitable for various applications.
3 Poles: The 3-pole configuration makes it adaptable and ideal for multiple applications, providing added versatility.
Compact Design: Its compact design allows for easy installation and efficient use of space in your electrical panel or enclosure.
Technical Specifications:
Current Rating: 100A
Poles: 3
| Specifications | |
Main | |
| Range | ComPact |
| Product name | ComPacT INS |
| Product or component type | Switch disconnector |
| Poles description | 3P |
| Network type | AC |
| DC | |
| Network frequency | 50/60 Hz |
| [Ie] rated operational current | AC-22A: 100 A AC 50/60 Hz 220/240 V |
| AC-22A: 100 A AC 50/60 Hz 380/415 V | |
| AC-22A: 100 A AC 50/60 Hz 440/480 V 2 poles in series | |
| AC-22A: 100 A AC 50/60 Hz 500 V 2 poles in series | |
| AC-22A: 100 A AC 50/60 Hz 660/690 V | |
| AC-23A: 100 A AC 50/60 Hz 220/240 V | |
| AC-23A: 100 A AC 50/60 Hz 380/415 V | |
| AC-23A: 100 A AC 50/60 Hz 440/480 V | |
| AC-23A: 100 A AC 50/60 Hz 500 V | |
| AC-23A: 63 A AC 50/60 Hz 660/690 V | |
| DC-22A: 100 A DC 50/60 Hz 125 V 2 poles in series | |
| DC-23A: 100 A DC 50/60 Hz 125 V 2 poles in series | |
| [Ui] rated insulation voltage | 750 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ith] conventional free air thermal current | 100 A at 60 °C |
| [Icm] rated short-circuit making capacity | 154 kA with upstream protection circuit breaker 690 V AC at 50/60 Hz |
| 20 kA switch-disconnector alone 690 V AC at 50/60 Hz | |
| [Ue] rated operational voltage | 125 V DC |
| 690 V AC 50/60 Hz | |
| Suitability for isolation | Yes |
| Contact position indicator | Yes |
| Visible break | No |
| Pollution degree | 3 |
| Complementary | |
| control type | Rotary handle |
| handle colour | Black |
| Mounting mode | Fixed |
| mounting support | Plate |
| DIN rail | |
| Upside connection | Front |
| downside connection | Front |
| Maximum power | AC-23: 22 kW at 220/240 V AC 50/60 Hz |
| AC-23: 45 kW at 380/415 V AC 50/60 Hz | |
| AC-23: 55 kW at 440 V AC 50/60 Hz | |
| AC-23: 55 kW at 500/525 V AC 50/60 Hz | |
| AC-23: 55 kW at 660/690 V AC 50/60 Hz | |
| Rated duty | Uninterrupted |
| Intermittent duty class | Class 120 - 60 % |
| enclosure dimensions for Ithe | 260 mm x 160 mm x 55 mm |
| [Icw] rated short-time withstand current | 0.01 kA during 30 s conforming to IEC 60947-3 |
| 1.23 kA during 20 s conforming to IEC 60947-3 | |
| 3.175 kA during 3 s conforming to IEC 60947-3 |
| Weight | 0.800000 |
|---|---|
| Brand | Schneider Electric |
| Model | 28908 |
| Depth [cm] | 6.25 |
| Width [cm] | 13.5 |
| Height [cm] | 10 |
| Range | CCB others |
| Family | PPCCB |
