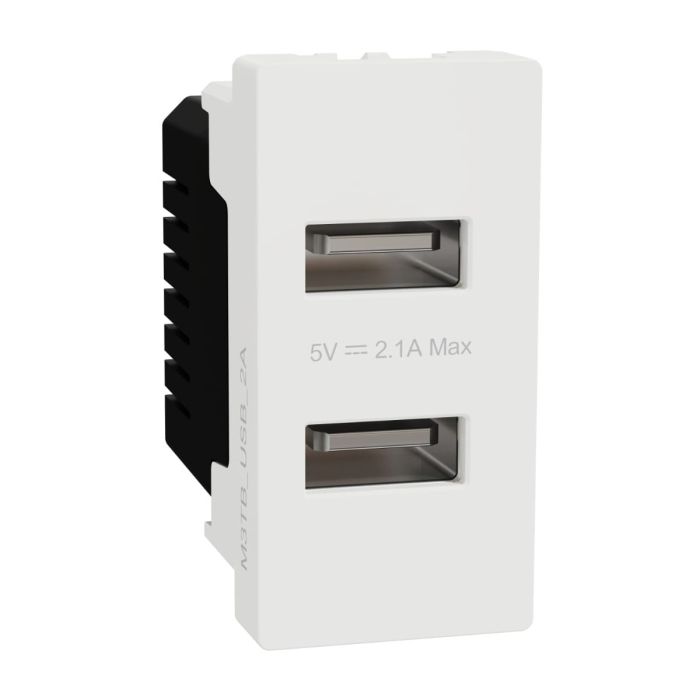

USB Type A, Miluz E, 2 Port, 2.1A, 1 Module, White
Product type: USB charger
Number of modules: 1 module
Fixing mode: Screws or Claws
This Schneider Electric Miluz E USB Type A charger has mac iOS, android and harmony operating system. This device is compatible for mobile/tablet. It has output voltage overload protection, thermal protection and current protection. Its service life is 20000 hours. It is having double electrical insulation class, hence double insulated electrical appliance uses reinforced protective insulation in addition to basic insulation. The rated operational voltage 110 to 240VAC +/- 10 % at 50/60Hz. For 2 USB port the output voltage is 5VDC with maximum load current is 2.1A. This device is mounted by flush type. The color of the product is white (WE) and the surface finish is glossy, delivering an elegant and high-end feeling to a room. It is made of polycarbonate. The degree of protection is IP20. The product is packed in plastic bag. Miluz E devices are designed to be easy to fit-from the snap-on modules, press-on frames, with clear electrical wiring diagrams on the back of the products. The Miluz E range does not compromise on quality and is compliant with IEC safety standards. Being environmentally friendly, this is a Green Premium product too.
Specifications:
Main | |
Range | Miluz |
Product or component type | USB charger |
Device application | USB charger |
Fixing mode | By claws |
By screws | |
Integrated connection type | 2 USB port 5 V DC, maximum load current: 2.1 A |
Operating system | Mac iOS |
Android | |
Harmony | |
Complementary | |
Device mounting | Flush |
device presentation | Insert |
Colour tint | White |
Surface finish | Glossy |
Number of modules | 1 module |
Type of packing | Plastic bag |
Quantity per set | 1 |
ambient air temperature for operation | 0…40 °C |
Ambient air temperature for storage | -5…60 °C |
Relative humidity | 10…90 % |
Connector type | USB |
[Ue] rated operational voltage | 110/240 V AC +/- 10 % at 50/60 Hz |
Power consumption in W | 0.1 W |
Nominal output power | 10.5 W |
Input power | 12.5 W |
Service life in hours | 20000 h |
maximum load current with 2 outputs used simultaneously | 2.1 A |
Material | PC (UL94 V-2) |
Protection type | Overload of output voltage |
Thermal protection | |
Current protection | |
Wire stripping length | 100 mm |
Product compatibility | Mobile/tablet |
height | 44.75 mm |
Width | 22.3 mm |
Depth | 39.0 mm |
Embedding depth | 30.3 mm |
Number of terminals | 2 wire |
Environment | |
Directives | 2006/95/EC - low voltage directive |
product certifications | low voltage directive 2006/95/EC |
Standards | IEC/EN 62386-101 |
IK degree of protection | IK04 |
IP degree of protection | IP20 |
Electrical insulation class | Double insulation |
| Weight | 0.031300 |
|---|---|
| Brand | Schneider Electric |
| Model | M3TB_USB_2A |
| Color | White |
| Warranty | 1 Year |
| Depth [cm] | 3.9 |
| Width [cm] | 2.23 |
| Height [cm] | 4.475 |
| Range | Miluz |
| Family | HDCWD |
| Type | USB Charger |
| Number of Modules | 1 module |
| Device Application | Power supply |
| Fixing Mode | Screws or claws |
| IP Degree of Protection | IP20 |
| IK Degree of Protection | IK04 |
