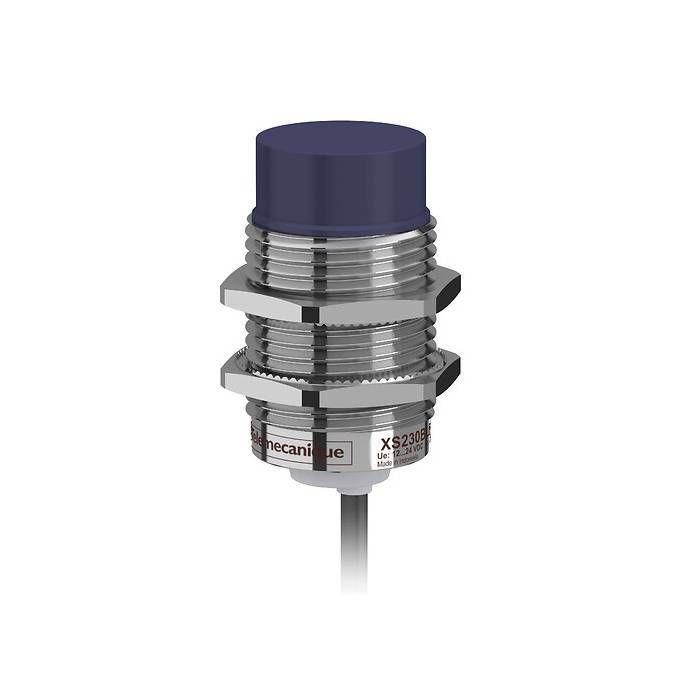

Telemecanique Inductive sensor XS2 M30, L57mm, brass, Sn15mm 12..24VDC, Cable 2m
Range: Telemecanique Inductive proximity 0sensors XS
Sensor type: Inductive proximity sensor
Size: 57mm
Body type: Fixed
You May Also Like:
Telemecanique Inductive Sensor XS1 M18, L53mm, Sn8mm, 12..24VDC, Cable 2MSpecial Price EGP 116 Regular Price EGP 1,158
Telemecanique Inductive sensor XS1 M12,L49mm,Sn4mm,12..24VDC, cable 2MSpecial Price EGP 116 Regular Price EGP 1,158
Telemecanique Inductive Sensor XS2 M30, L57mm, Brass, Sn15mm, 12..24VDC, Cable 2mSpecial Price EGP 137 Regular Price EGP 1,374
Telemecanique Inductive Sensor XS2 M12, L44mm, Brass,Sn4mm,12..24VDC,cable 2MSpecial Price EGP 116 Regular Price EGP 1,158
Telemecanique Inductive sensor XS1 M12,L49mm,brass,Sn4mm,12..24VDC,cable 2MSpecial Price EGP 116 Regular Price EGP 1,158
Telemecanique Inductive Sensor XS1 M12,L61mm, Brass, Sn4mm,12..24VDC ,M12Special Price EGP 133 Regular Price EGP 1,331
Telemecanique Inductive sensor XS1 M12,L55mm,brass,Sn2mm,12..24VDC,M12Special Price EGP 133 Regular Price EGP 1,331
Telemecanique Inductive sensor XS2 M30,L68mm,brass,Sn15mm,12..24VDC,M12Special Price EGP 163 Regular Price EGP 1,629
Telemecanique Inductive sensor XS2 M18, L64mm, brass, Sn8mm, 12..24VDC,M12Special Price EGP 133 Regular Price EGP 1,331
Telemecanique Inductive sensor XS1 M18, 53mm, brass, Sn8mm, 12..24VDC, cable 2mSpecial Price EGP 137 Regular Price EGP 1,374
Telemecanique Inductive sensor XS1 M18, L53mm, brass, 8mm, 12..24VDC, cable 2mSpecial Price EGP 116 Regular Price EGP 1,158
Telemecanique Inductive sensor XS1 M18, L64mm, Sn8mm, 12..24VDC, M12Special Price EGP 133 Regular Price EGP 1,331
Telemecanique Inductive sensor XS2 M12, L55mm, brass, Sn4mm, 12..24VDC, M12Special Price EGP 133 Regular Price EGP 1,331
The XS range is an offer of inductive proximity sensors for the detection,without physical contact,of metal objects. The advantages of inductive detection are numerous,no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products,fully encapsulated in resin). This product is a cylindrical,non flush mountable sensor. Diameter 30mm,threaded M30 x 1.5. It features a metal cylindrical boby and a 2m long cable. It has a sensing distance of 15mm. Three-wire,DC supply,12V to 24V,NO function,PNP solid-state output.
Specifications:
| Range of product | TelemecaniqueInductiveproximitysensorsXS |
| Series name | Generalpurpose |
| Sensor type | Inductiveproximitysensor |
| Sensor name | XS2 |
| Sensor design | CylindricalM30 |
| Size | 57mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 3-wire |
| Discrete output function | 1NO |
| Detector flush mounting acceptance | Nonflushmountable |
| Discrete output type | PNP |
| Material | Metal |
| Electrical connection | Cable |
| [Us] rated supply voltage | 12...24VDCwithreversepolarityprotection |
| Output circuit type | DC |
| Switching capacity in mA | <=200mAwithoverloadandshort-circuitprotection |
| IP degree of protection | IP67conformingtoIEC60529 |
| Enclosure material | Nickelplatedbrass |
| ISO thread | M30x1.5 |
| Detection face | Frontal |
| Front material | PBT |
| Sensing range | 8...15mm |
| Differential travel | 1...15%ofSr |
| Cable composition | 3x0.14mm² |
| Status LED | Outputstate:1LED(yellow) |
| Wire insulation material | PVC |
| Switching frequency | <=300Hz |
| Voltage drop | <2V(closed) |
| Current consumption | <=10mAno-load |
| Delay first up | 15MILLISECOND |
| Delay response | 0.2MILLISECOND |
| Marking | CE |
| Delay recovery | 1.4MILLISECOND |
| Product certifications | CSA |
| UL | UL |
| Vibration resistance | 25gnamplitude=+/-2mm(f=10-55Hz)conformingtoIEC60068-2-6 |
| Shock resistance | 50gnfor11msconformingtoIEC60068-2-27 |
| Weight | 3.000000 |
|---|---|
| Brand | Telemecanique |
| Model | XS230BLPAL2 |
| Range | Inductive Basic |
| Family | IDSEN |
