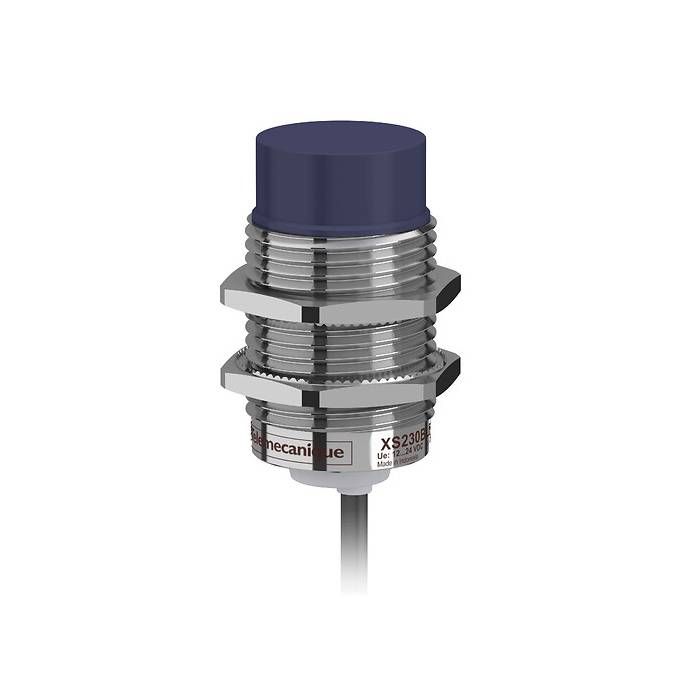

Telemecanique Inductive Sensor XS2 M30, L57mm, Brass, Sn15mm, 12..24VDC, Cable 2m
In stock
SKU
XS230BLNAL2
Special Price EGP 137 Regular Price EGP 1,374
Telemecanique Inductive Sensor XS2 M30, L57mm, Brass, Sn15mm, 12..24VDC, Cable 2m is available to buy in increments of 1
Quick Overview
Range: Telemecanique Inductive Proximity Sensors XS
Sensor type: Inductive proximity sensor
Body type: Fixed
Size: 57mm
You May Also Like:
Telemecanique Inductive Sensor XS1 M18, L53mm, Sn8mm, 12..24VDC, Cable 2MSpecial Price EGP 116 Regular Price EGP 1,158
Telemecanique Inductive sensor XS1 M12,L49mm,Sn4mm,12..24VDC, cable 2MSpecial Price EGP 116 Regular Price EGP 1,158
Telemecanique Inductive Sensor XS2 M12, L44mm, Brass,Sn4mm,12..24VDC,cable 2MSpecial Price EGP 116 Regular Price EGP 1,158
Telemecanique Inductive sensor XS1 M12,L49mm,brass,Sn4mm,12..24VDC,cable 2MSpecial Price EGP 116 Regular Price EGP 1,158
Telemecanique Inductive Sensor XS1 M12,L61mm, Brass, Sn4mm,12..24VDC ,M12Special Price EGP 133 Regular Price EGP 1,331
Telemecanique Inductive sensor XS1 M12,L55mm,brass,Sn2mm,12..24VDC,M12Special Price EGP 133 Regular Price EGP 1,331
Telemecanique Inductive sensor XS2 M30,L68mm,brass,Sn15mm,12..24VDC,M12Special Price EGP 163 Regular Price EGP 1,629
Telemecanique Inductive sensor XS2 M18, L64mm, brass, Sn8mm, 12..24VDC,M12Special Price EGP 133 Regular Price EGP 1,331
Telemecanique Inductive sensor XS1 M18, 53mm, brass, Sn8mm, 12..24VDC, cable 2mSpecial Price EGP 137 Regular Price EGP 1,374
Telemecanique Inductive sensor XS1 M18, L53mm, brass, 8mm, 12..24VDC, cable 2mSpecial Price EGP 116 Regular Price EGP 1,158
Telemecanique Inductive sensor XS1 M18, L64mm, Sn8mm, 12..24VDC, M12Special Price EGP 133 Regular Price EGP 1,331
Telemecanique Inductive sensor XS2 M12, L55mm, brass, Sn4mm, 12..24VDC, M12Special Price EGP 133 Regular Price EGP 1,331
Specifications:
Item | Value |
| Range of product | Telemecanique Inductive Proximity Sensors XS |
| Series name | General purpose |
| Sensor type | Inductive proximity sensor |
| Sensor name | XS2 |
| Sensor design | Cylindrical M30 |
| Size | 57 mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 3-wire |
| Discrete output function | 1 NO |
| Detector flush mounting acceptance | Non-flush mountable |
| Discrete output type | NPN |
| Material | Metal |
| Electrical connection | Cable |
| Rated supply voltage [Us] | 12…24 V DC with reverse polarity protection |
| Output circuit type | DC |
| Switching capacity | ≤ 200 mA with overload and short-circuit protection |
| IP degree of protection | IP67 conforming to IEC 60529 |
| Complementary | |
| Enclosure material | Nickel plated brass |
| ISO thread | M30 × 1.5 |
| Detection face | Frontal |
| Front material | PBT |
| Sensing range | 8…15 mm |
| Differential travel | 1…15% of Sr |
| Cable composition | 3 × 0.14 mm² |
| Status LED | Output state: 1 LED (yellow) |
| Wire insulation material | PVC |
| Switching frequency | ≤ 300 Hz |
| Voltage drop | < 2 V (closed) |
| Current consumption | ≤ 10 mA (no-load) |
| Delay first up | 15 ms |
| Delay response | 0.2 ms |
| Marking | CE |
| Delay recovery | 1.4 ms |
| Environment | |
| Product certifications | CSA, UL |
| Vibration resistance | 25 gn amplitude = ±2 mm (10–55 Hz), IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms, IEC 60068-2-27 |
| Weight | 3.000000 |
|---|---|
| Brand | Telemecanique |
| Model | XS230BLNAL2 |
| Range | Inductive Basic |
| Family | IDSEN |
| IP Degree of Protection | IP67 |
