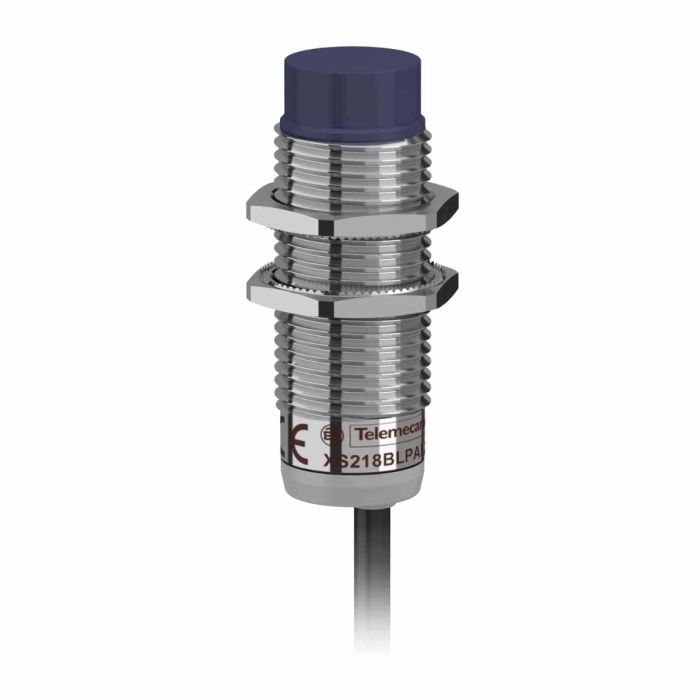

Telemecanique Inductive Sensor Xs2 M18, L53Mm, Brass, Sn8Mm, 12..24VDC, Cable 2M
Range: Telemecanique Inductive proximity sensors XS
Sensor type: Inductive proximity sensor
Body Type: Fixed
Material: Metal
You May Also Like:
Telemecanique Inductive Sensor XS1 M18, L53mm, Sn8mm, 12..24VDC, Cable 2MSpecial Price EGP 116 Regular Price EGP 1,158
Telemecanique Inductive sensor XS1 M12,L49mm,Sn4mm,12..24VDC, cable 2MSpecial Price EGP 116 Regular Price EGP 1,158
Telemecanique Inductive Sensor XS2 M30, L57mm, Brass, Sn15mm, 12..24VDC, Cable 2mSpecial Price EGP 137 Regular Price EGP 1,374
Telemecanique Inductive Sensor XS2 M12, L44mm, Brass,Sn4mm,12..24VDC,cable 2MSpecial Price EGP 116 Regular Price EGP 1,158
Telemecanique Inductive sensor XS1 M12,L49mm,brass,Sn4mm,12..24VDC,cable 2MSpecial Price EGP 116 Regular Price EGP 1,158
Telemecanique Inductive Sensor XS1 M12,L61mm, Brass, Sn4mm,12..24VDC ,M12Special Price EGP 133 Regular Price EGP 1,331
Telemecanique Inductive sensor XS1 M12,L55mm,brass,Sn2mm,12..24VDC,M12Special Price EGP 133 Regular Price EGP 1,331
Telemecanique Inductive sensor XS2 M30,L68mm,brass,Sn15mm,12..24VDC,M12Special Price EGP 163 Regular Price EGP 1,629
Telemecanique Inductive sensor XS2 M18, L64mm, brass, Sn8mm, 12..24VDC,M12Special Price EGP 133 Regular Price EGP 1,331
Telemecanique Inductive sensor XS1 M18, 53mm, brass, Sn8mm, 12..24VDC, cable 2mSpecial Price EGP 137 Regular Price EGP 1,374
Telemecanique Inductive sensor XS1 M18, L53mm, brass, 8mm, 12..24VDC, cable 2mSpecial Price EGP 116 Regular Price EGP 1,158
Telemecanique Inductive sensor XS1 M18, L64mm, Sn8mm, 12..24VDC, M12Special Price EGP 133 Regular Price EGP 1,331
Telemecanique Inductive sensor XS2 M12, L55mm, brass, Sn4mm, 12..24VDC, M12Special Price EGP 133 Regular Price EGP 1,331
The XS range is an offer of inductive proximity sensors for the detection,without physical contact,of metal objects. The advantages of inductive detection are numerous,no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products,fully encapsulated in resin). This product is a cylindrical,non flush mountable sensor. Diameter 18mm,threaded M18 x 1. It features a metal cylindrical boby and a 2m long cable. It has a sensing distance of 8mm. Three-wire,DC supply,12V to 24V,NO function,NPN solid-state output.
Specifications:
| Main | |
| Range of product | Telemecanique Inductive Proximity Sensors XS |
| Series name | General purpose |
| Sensor type | Inductive proximity sensor |
| Sensor name | XS2 |
| Sensor design | Cylindrical M18 |
| Size | 53 mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 3-wire |
| Discrete output function | 1 NO |
| Detector flush mounting acceptance | Non flush mountable |
| Discrete output type | NPN |
| Material | Metal |
| Electrical connection | Cable |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| Output circuit type | DC |
| Switching capacity in mA | ≤ 200 mA with overload and short-circuit protection |
| IP degree of protection | IP67 conforming to IEC 60529 |
| Complementary | |
| Enclosure material | Nickel plated brass |
| ISO thread | M18 x 1 |
| Detection face | Frontal |
| Front material | PBT |
| Sensing range | > 4...8 mm |
| Differential travel | 1...15% of Sr |
| Cable composition | 3 x 0.14 mm² |
| Status LED | Output state: 1 LED (yellow) |
| Wire insulation material | PVC |
| Switching frequency | ≤ 500 Hz |
| Voltage drop | <2 V (closed) |
| Current consumption | ≤ 10 mA no-load |
| Delay first up | 15 ms |
| Delay response | 0.1 ms |
| Marking | CE |
| Delay recovery | 1 ms |
| Environment | |
| Product certifications | CSA, UL |
| Vibration resistance | 25 gn amplitude ±2 mm (f = 10–55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Weight | 0.105000 |
|---|---|
| Brand | Telemecanique |
| Model | XS218BLNAL2 |
| Length [cm] | 5.3 |
| Range | Inductive Basic |
| Family | IDSEN |
| IP Degree of Protection | IP67 |
