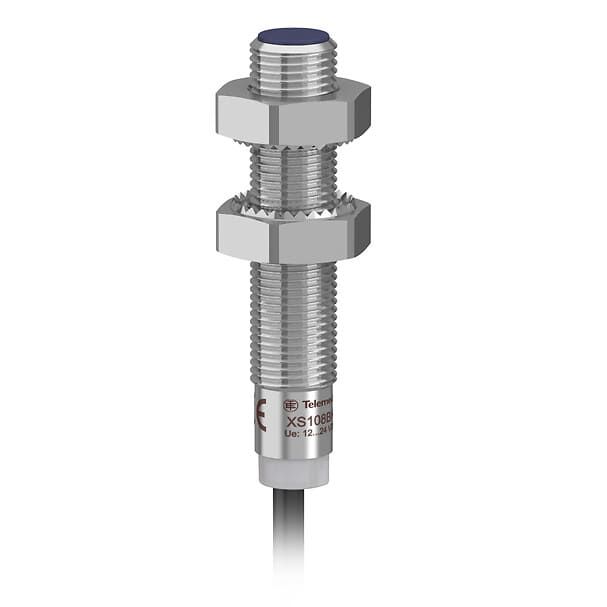

Telemecanique Inductive Proximity Sensors XS1 M8,L42mm,brass,Sn1.5 mm,12..24VDC, Cable 2M
Range: Telemecanique Inductive proximity sensors XS
Sensor type: Inductive proximity sensor
Body type: Fixed
Size: 42 mm
You May Also Like:
Telemecanique Inductive Sensor XS1 M18, L53mm, Sn8mm, 12..24VDC, Cable 2MSpecial Price EGP 116 Regular Price EGP 1,158
Telemecanique Inductive sensor XS1 M12,L49mm,Sn4mm,12..24VDC, cable 2MSpecial Price EGP 116 Regular Price EGP 1,158
Telemecanique Inductive Sensor XS2 M30, L57mm, Brass, Sn15mm, 12..24VDC, Cable 2mSpecial Price EGP 137 Regular Price EGP 1,374
Telemecanique Inductive Sensor XS2 M12, L44mm, Brass,Sn4mm,12..24VDC,cable 2MSpecial Price EGP 116 Regular Price EGP 1,158
Telemecanique Inductive sensor XS1 M12,L49mm,brass,Sn4mm,12..24VDC,cable 2MSpecial Price EGP 116 Regular Price EGP 1,158
Telemecanique Inductive Sensor XS1 M12,L61mm, Brass, Sn4mm,12..24VDC ,M12Special Price EGP 133 Regular Price EGP 1,331
Telemecanique Inductive sensor XS1 M12,L55mm,brass,Sn2mm,12..24VDC,M12Special Price EGP 133 Regular Price EGP 1,331
Telemecanique Inductive sensor XS2 M30,L68mm,brass,Sn15mm,12..24VDC,M12Special Price EGP 163 Regular Price EGP 1,629
Telemecanique Inductive sensor XS2 M18, L64mm, brass, Sn8mm, 12..24VDC,M12Special Price EGP 133 Regular Price EGP 1,331
Telemecanique Inductive sensor XS1 M18, 53mm, brass, Sn8mm, 12..24VDC, cable 2mSpecial Price EGP 137 Regular Price EGP 1,374
Telemecanique Inductive sensor XS1 M18, L53mm, brass, 8mm, 12..24VDC, cable 2mSpecial Price EGP 116 Regular Price EGP 1,158
Telemecanique Inductive sensor XS1 M18, L64mm, Sn8mm, 12..24VDC, M12Special Price EGP 133 Regular Price EGP 1,331
Telemecanique Inductive sensor XS2 M12, L55mm, brass, Sn4mm, 12..24VDC, M12Special Price EGP 133 Regular Price EGP 1,331
The XS range is an offer of inductive proximity sensors for the detection,without physical contact,of metal objects. The advantages of inductive detection are numerous,no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products,fully encapsulated in resin). This product is a cylindrical,flush mountable sensor. Diameter 8mm,threaded M8 x 1. It features a metal cylindrical boby and a 2m long cable. It has a sensing distance of 1.5mm. Three-wire,DC supply,12V to 24V,NO function,NPN solid-state output .
Specifications:
| Main | |
| Range of product | Telemecanique Inductive proximity sensors XS |
| Series name | General purpose |
| Sensor type | Inductive proximity sensor |
| Sensor name | XS1 |
| Sensor design | Cylindrical M8 |
| Size | 42 mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 3-wire |
| Enclosure material | Nickel plated brass |
| Discrete output function | 1 NO |
| Discrete output type | NPN |
| Electrical connection | Cable |
| [Us] rated supply voltage | 12…24 V DC (with reverse polarity protection) |
| Switching capacity in mA | ≤ 200 mA (with overload and short-circuit protection) |
| IP degree of protection | IP67 (IEC 60529) |
| Complementary | |
| Detector flush mounting | Flush mountable |
| Material | Metal |
| ISO thread | M8 x 1 |
| Output circuit type | DC |
| Detection face | Frontal |
| Sensing range | > 0…2.5 mm |
| Front material | PPS |
| Differential travel | 1…15% of Sr |
| Wire insulation material | PVC |
| Cable composition | 3 x 0.11 mm² |
| Status LED | Output state: 1 LED (yellow) |
| Switching frequency | ≤ 1000 Hz |
| Voltage drop | <2 V (closed) |
| Current consumption | ≤ 10 mA no-load |
| Delay first up | 15 ms |
| Delay response | 5 ms |
| Delay recovery | 0.3 ms |
| Marking | CE |
| Environment | |
| Product certifications | CSA, UL |
| Vibration resistance | 25 gn, amplitude ±2 mm (f = 10–55 Hz) (IEC 60068-2-6) |
| Shock resistance | 50 gn for 11 ms (IEC 60068-2-27) |
| Weight | 3.000000 |
|---|---|
| Brand | Telemecanique |
| Model | XS108BLNAL2 |
| Range | Inductive Basic |
| Family | IDSEN |
| IP Degree of Protection | IP67 |
