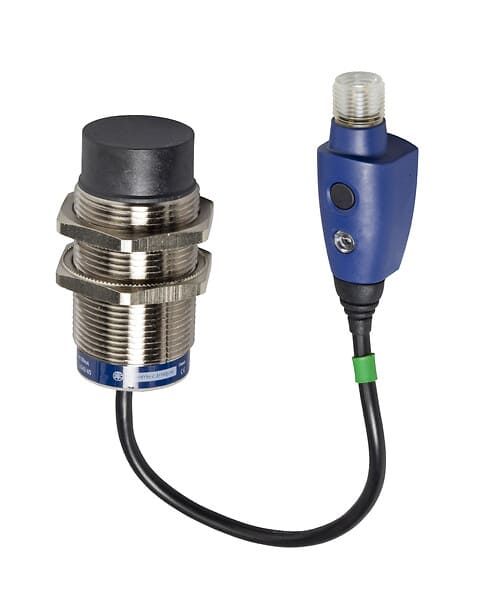

Telemecanique Inductive Proximity Sensors XS, Inductive Sensor XS6 M30, L63mm, Brass, Sn18mm, 12...24 VDC, M12 0.15 M
In stock
SKU
XS630B2PAL01M12
Special Price EGP 936 Regular Price EGP 9,355
Telemecanique Inductive Proximity Sensors XS, Inductive Sensor XS6 M30, L63mm, Brass, Sn18mm, 12...24 VDC, M12 0.15 M is available to buy in increments of 1
Quick Overview
Range: Telemecanique Inductive proximity sensors XS
Sensor Type: Inductive Proximity Sensor
Body Type: Fixed
Size: 63 mm
You May Also Like:
Telemecanique Inductive Proximity Sensors XS, Inductive Sensor XS2 M18, L60mm, PPS, Sn12mm, 12...48 VDC, Cable 2 MSpecial Price EGP 598 Regular Price EGP 5,983
Telemecanique Inductive Proximity Sensors XS, Inductive Sensor XS4 M18, L62mm, PPS, Sn8mm, 24...240VAC/DC, Cable 2 MSpecial Price EGP 706 Regular Price EGP 7,057
Telemecanique Inductive Proximity Sensors XS, Inductive Sensor XS5 M12, L62mm, Brass, Sn2mm, 12...48 VDC, M12Special Price EGP 566 Regular Price EGP 5,662
Telemecanique Inductive Proximity Sensors XS, Inductive Sensor XS5 M30, L55mm, Brass, Sn10mm, 12...24 VDC, M12Special Price EGP 447 Regular Price EGP 4,470
Telemecanique Inductive Proximity Sensors XS, Inductive Sensor XS6 M12, L62mm, Brass, Sn4mm, 12...48 VDC, M12Special Price EGP 349 Regular Price EGP 3,490
Telemecanique Inductive Proximity Sensors XS, Inductive Sensor XS6 M12, L54mm, Brass, Sn7mm, 12...48 VDC, Cable 2 MSpecial Price EGP 567 Regular Price EGP 5,665
Telemecanique Inductive Proximity Sensors XS, Inductive Sensor XS6 M18, L74mm, Brass, Sn8mm, 12...48 VDC, M12Special Price EGP 433 Regular Price EGP 4,327
Telemecanique Inductive Proximity Sensors XS, Inductive Sensor XS6 M18, L62mm, Brass, Sn8mm, 12...48 VDC, Cable 2 MSpecial Price EGP 383 Regular Price EGP 3,829
Telemecanique Inductive Proximity Sensors XS, Inductive Sensor XS9 M30, L64mm, Full SS 316L, Sn40 Mm, 12...24 VDC, M12Special Price EGP 1,635 Regular Price EGP 16,353
Specifications:
Range of product | Telemecanique Inductive proximity sensors XS |
| Series name | |
| Application | |
| Sensor type | Inductive proximity sensor |
| Sensor name | XS6 |
| Sensor design | Cylindrical M30 |
| Size | 63 mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 3-wire |
| Discrete output function | 1 NO |
| Detector flush mounting acceptance | Non flush mountable |
| Discrete output type | PNP |
| Material | Metal |
| Electrical connection | Remote male connector M12, 4 pins |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| Output circuit type | DC |
| Switching capacity in mA | <= 100 mA DC with overload and short-circuit protection |
| IP degree of protection | IP67 double insulation conforming to IEC 60529, IP69K conforming to DIN 40050 |
| Complementary | |
| Enclosure material | Nickel plated brass |
| Detection face | Frontal |
| Thread type | M30 x 1.5 |
| Front material | PPS |
| Sensing range | > 15...40 mm |
| Differential travel | 1...15 % of Sr |
| Cable composition | 3 x 0.34 mm² |
| Status LED | Supply on and teach mode: 1 LED (green), output state: 1 LED (yellow) |
| Wire insulation material | PVC |
| Switching frequency | <= 1000 Hz |
| Voltage drop | <2 V (closed) |
| Current consumption | <= 10 mA no-load |
| Delay first up | 10 ms |
| Delay response | 0.3 ms |
| Marking | CE |
| Delay recovery | 0.7 ms |
| Environment | |
| Product certifications | CSA, UL |
| Vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Weight | 0.220000 |
|---|---|
| Brand | Telemecanique |
| Model | XS630B2PAL01M12 |
| Range | Inductive Gen Purpose |
| Family | IDSEN |
