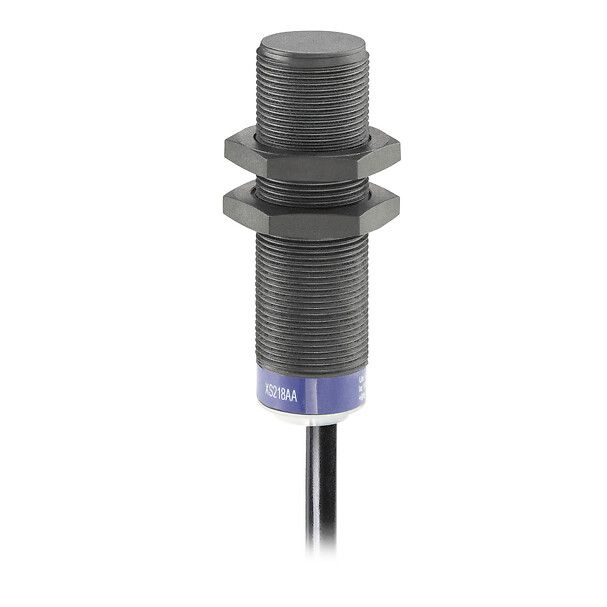

Telemecanique Inductive Proximity Sensors XS, Inductive Sensor XS2 M18, L60mm, PPS, Sn12mm, 12...48 VDC, Cable 2 M
In stock
SKU
XS218AANAL2
Special Price EGP 598 Regular Price EGP 5,983
Telemecanique Inductive Proximity Sensors XS, Inductive Sensor XS2 M18, L60mm, PPS, Sn12mm, 12...48 VDC, Cable 2 M is available to buy in increments of 1
Quick Overview
Range: Telemecanique Inductive Proximity Sensors XS
Product Type: Inductive proximity sensor
Device application: Food and beverage
Body type: Fixed
You May Also Like:
Telemecanique Inductive Proximity Sensors XS, Inductive Sensor XS4 M18, L62mm, PPS, Sn8mm, 24...240VAC/DC, Cable 2 MSpecial Price EGP 706 Regular Price EGP 7,057
Telemecanique Inductive Proximity Sensors XS, Inductive Sensor XS5 M12, L62mm, Brass, Sn2mm, 12...48 VDC, M12Special Price EGP 566 Regular Price EGP 5,662
Telemecanique Inductive Proximity Sensors XS, Inductive Sensor XS5 M30, L55mm, Brass, Sn10mm, 12...24 VDC, M12Special Price EGP 447 Regular Price EGP 4,470
Telemecanique Inductive Proximity Sensors XS, Inductive Sensor XS6 M12, L62mm, Brass, Sn4mm, 12...48 VDC, M12Special Price EGP 349 Regular Price EGP 3,490
Telemecanique Inductive Proximity Sensors XS, Inductive Sensor XS6 M12, L54mm, Brass, Sn7mm, 12...48 VDC, Cable 2 MSpecial Price EGP 567 Regular Price EGP 5,665
Telemecanique Inductive Proximity Sensors XS, Inductive Sensor XS6 M18, L74mm, Brass, Sn8mm, 12...48 VDC, M12Special Price EGP 433 Regular Price EGP 4,327
Telemecanique Inductive Proximity Sensors XS, Inductive Sensor XS6 M18, L62mm, Brass, Sn8mm, 12...48 VDC, Cable 2 MSpecial Price EGP 383 Regular Price EGP 3,829
Telemecanique Inductive Proximity Sensors XS, Inductive Sensor XS6 M30, L63mm, Brass, Sn18mm, 12...24 VDC, M12 0.15 MSpecial Price EGP 936 Regular Price EGP 9,355
Telemecanique Inductive Proximity Sensors XS, Inductive Sensor XS9 M30, L64mm, Full SS 316L, Sn40 Mm, 12...24 VDC, M12Special Price EGP 1,635 Regular Price EGP 16,353
Specifications:
Range of product | Telemecanique Inductive Proximity Sensors XS |
| Series name | Application |
| Sensor type | Inductive proximity sensor |
| Sensor name | XS2 |
| Device application | Food and beverage |
| Sensor design | Cylindrical M18 |
| Size | 60 mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 3-wire |
| Discrete output function | 1 NO |
| Detector flush mounting acceptance | Non-flush mountable |
| Discrete output type | NPN |
| Material | Plastic |
| Electrical connection | Cable |
| Rated supply voltage [Us] | 12…48 V DC with reverse polarity protection |
| Output circuit type | DC |
| Switching capacity | ≤ 200 mA with overload and short-circuit protection |
| IP degree of protection | IP68 double insulation (IEC 60529), IP69K (DIN 40050) |
| Enclosure material | PPS |
| Detection face | Frontal |
| Thread type | M18 x 1 |
| Front material | PPS |
| Sensing range | 8…15 mm |
| Differential travel | 1…15 % of Sr |
| Cable composition | 3 x 0.34 mm² |
| Status LED | Output state: 1 LED (yellow) |
| Wire insulation material | PVC |
| Switching frequency | ≤ 1000 Hz |
| Voltage drop | < 2 V (closed) |
| Current consumption | ≤ 10 mA (no-load) |
| Delay first up | 10 ms |
| Delay response | 0.3 ms |
| Delay recovery | 0.7 ms |
| Marking | CE |
| Product certifications | CSA, CCC, UL |
| Vibration resistance | 25 gn, amplitude ±2 mm (f = 10–55 Hz), IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms, IEC 60068-2-27 |
| Weight | 0.100000 |
|---|---|
| Brand | Telemecanique |
| Model | XS218AANAL2 |
| Range | Inductive Gen Purpose |
| Family | IDSEN |
