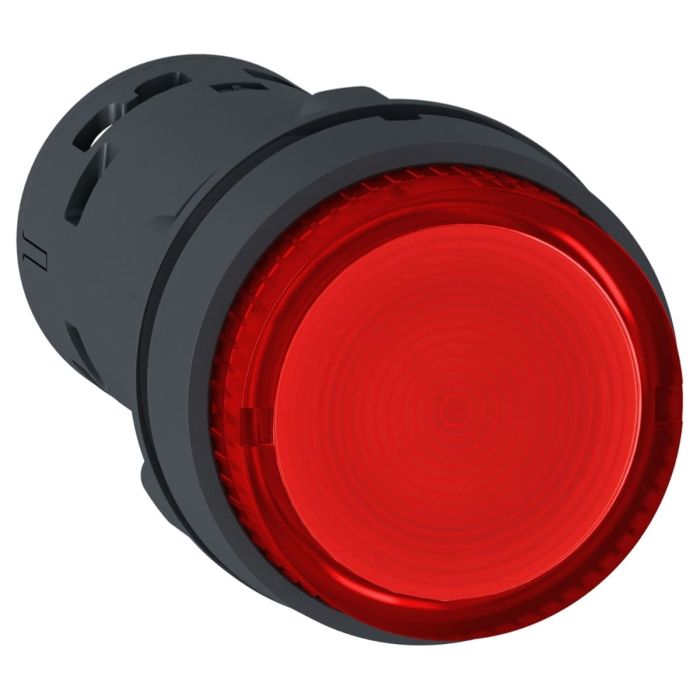

Schneider Electric ILLUM. P.B - Bulb, Spring Rtn -1NO, Red, 230v
In stock
SKU
XB7NW3461
Special Price EGP 318 Regular Price EGP 548
Schneider Electric ILLUM. P.B - Bulb, Spring Rtn -1NO, Red, 230v is available to buy in increments of 1
Quick Overview
Range: Harmony XB7
Product type: Illuminated push-button
Mounting diameter: 22 mm
Sale per indivisible quantity: 10
You May Also Like:
Schneider Electric Monolithic Push Button, Black Plastic, 1 Normally Open ContactSpecial Price EGP 195 Regular Price EGP 336
Schneider Electric Monolithic pilot light, plastic, green, 22mm Mounting, integral LED, 230…240 V ACSpecial Price EGP 200 Regular Price EGP 345
Schneider Electric Monolithic Push Button, Plastic, Red,Ø22, Spring Return, Unmarked,1 NSpecial Price EGP 172 Regular Price EGP 296
Schneider Electric Monolithic push button,plastic,green,Ø22,push and push to release,unmarked,1 NSpecial Price EGP 200 Regular Price EGP 345
Schneider Electric Monolithic Push Button, Plastic, White, Ø22, Spring Return, Unmarked, 1 Normally Open ContactSpecial Price EGP 172 Regular Price EGP 296
Schneider Electric Monolithic Push Button, Black Plastic, 2 Normally Open ContactsSpecial Price EGP 172 Regular Price EGP 296
Schneider Electric Monolithic pilot light, Plastic, Red, 22mm Mounting, integral LED, 230…240 V ACSpecial Price EGP 200 Regular Price EGP 345
Schneider Electric Monolithic Push Button, Green Plastic, 1 Normally Open Contact and 1 Normally Closed ContactSpecial Price EGP 179 Regular Price EGP 309
Schneider Electric Monolithic Selector Switch, Black Plastic, 2 Positions, 1 Normally Open ContactSpecial Price EGP 347 Regular Price EGP 598
Schneider Electric Monolithic Selector Switch, Black Plastic, 3 Positions, 2 Normally Open ContactsSpecial Price EGP 405 Regular Price EGP 699
Schneider Electric Black Flush Pushbutton with 1NO + 1NC ContactsSpecial Price EGP 233 Regular Price EGP 403
Schneider Electric Emergency Stop Ø 22, Red, Mushroom Head Ø 40Mm, Turn To Release - 1 No + 1Special Price EGP 540 Regular Price EGP 931
Schneider Electric Monolithic pilot light,plastic,yellow,Ø22,integral LED,230…240 VSpecial Price EGP 200 Regular Price EGP 345
Schneider Electric Monolithic Selector Switch, Plastic, Black, Ø22,Stay Put, 2 Positions,Stay Put,1 No + 1 NSpecial Price EGP 381 Regular Price EGP 657
Schneider Electric, Emergency stop Ø 22, Red, Mushroom Head Ø 40 Mm, Turn To Release, 1Special Price EGP 417 Regular Price EGP 720
This Harmony XB7,illuminated projecting monolithic red push button operates with a spring return / impulse mechanism,is supplied with 230V AC,uses a BA9s base and has screw-clamp terminals. It is easily installed into a standard 22mm diameter cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via BA9s base,minimizing errors in machine control and enabling complex machine statuses to be read at a glance. It is impact resistant,dust resistant,water resistant and vibration resistant thanks to its IP65,making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode,even in brightly lit environment.
Specifications:
| Main | |
| Range of product | Harmony XB7 |
| Product or component type | Illuminated push-button |
| Device short name | XB7 |
| Mounting diameter | 22 mm |
| Sale per indivisible quantity | ١٠ |
| Light source | Incandescent (bulb not included) |
| Device presentation | Monolithic product |
| Complementary | |
| Height | 29 mm |
| Width | 29 mm |
| Depth | 57.5 mm |
| Terminals description ISO n°1 | (13-14)NO |
| Net weight | 0.022 kg |
| Device mounting | Fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to IEC 60947-1 |
| Fixing center | >= 30 x 40 mm (support panel) metal - thickness: 1…6 mm |
| >= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm | |
| Fixing mode | Fixing nut beneath head: 2…2.4 N.m |
| Shape of signaling unit head | Round |
| Type of operator | spring return |
| Operator profile | Red projecting, unmarked |
| Contacts type and composition | 1 NO |
| Contact operation | Slow-break |
| Positive opening | Without |
| Mechanical durability | 300000 cycles |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 |
| Screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end conforming to IEC 60947-1 | |
| Tightening torque | 0.8…1.2 N.m conforming to IEC 60947-1 |
| Shape of screw head | Cross compatible with JIS No 1 screwdriver |
| Cross compatible with Philips no 1 screwdriver | |
| Cross compatible with pozidriv No 1 screwdriver | |
| Slotted compatible with flat Ø 4 mm screwdriver | |
| Slotted compatible with flat Ø 5.5 mm screwdriver | |
| Short-circuit protection | 4 A cartridge fuse type gG conforming to IEC 60947-5-1 |
| [Ui] rated insulation voltage | 250 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 0.1 A at 250 V, DC-13, R300 conforming to IEC 60947-5-1 |
| 0.22 A at 125 V, DC-13, R300 conforming to IEC 60947-5-1 | |
| 0.3 A at 240 V, AC-14, D300 conforming to IEC 60947-5-1 | |
| 0.6 A at 120 V, AC-14, D300 conforming to IEC 60947-5-1 | |
| Electrical durability | 1000000 cycles, DC-13, 0.3 A at 24 V, operating rate <216000 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| 1000000 cycles, AC-15, 0.03 A at 230 V, operating rate <216000 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C | |
| 1000000 cycles, AC-15, 0.09 A at 240 V, operating rate <108000 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C | |
| Electrical reliability | Λ <= 10exp(-6) at 17 V and 5 mA conforming to IEC 60947-5-4 |
| Signalling type | Steady |
| Bulb base | BA 9s |
| [Us] rated supply voltage | 230 V AC |
| Supply voltage limits | 195…264 V AC |
| Compatibility code | XB7 |
| Environment | |
| Protective treatment | TH |
| Ambient air temperature for storage | -40…70 °C |
| ambient air temperature for operation | -25…55 °C |
| Electrical shock protection class | Class II conforming to IEC 61140 |
| IP degree of protection | IP20 (rear face) conforming to IEC 60529 |
| IP65 (front face) conforming to IEC 60529 | |
| NEMA degree of protection | NEMA 12 conforming to UL 50 E |
| NEMA 3 conforming to UL 50 E | |
| Standards | JIS C8201-5-1 |
| UL 508 | |
| IEC 60947-1 | |
| CSA C22.2 No 14 | |
| IEC 60947-5-1 | |
| JIS C8201-1 | |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 | |
| Electromagnetic emission | Class B conforming to IEC 55011 |
| Weight | 3.000000 |
|---|---|
| Brand | Schneider Electric |
| Model | XB7NW3461 |
| Color | Red |
| Range | Harmony XB7 |
| Family | IDSIG |
