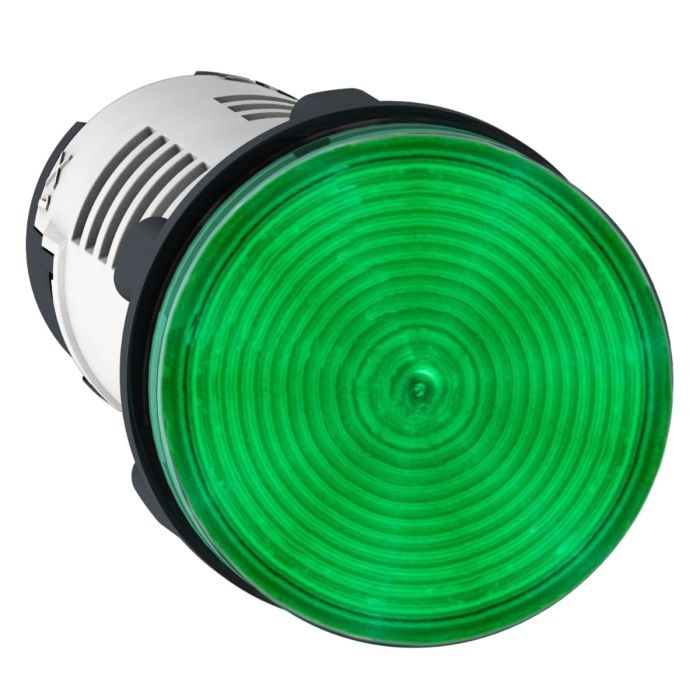

Monolithic pilot light, plastic, green, 22mm Mounting, integral LED, 230…240 V AC, Schneider Electric
Range of product: Harmony XB7
Product type: Pilot light
Type of operator: Plain lens
Shape of signaling unit head: Round
Introducing the Schneider Electric XB7EV03MP Monolithic Push Button, a reliable and versatile component designed to meet your electrical control needs. This push button is built to last, featuring a striking blue plastic construction and offering momentary contact. It is designed for easy and convenient use, with a 22mm mounting size, making it suitable for various applications.
Key Features:
Durable Build: Crafted from high-quality blue plastic, the push button is designed to withstand demanding environments.
Momentary Contact: This push button offers momentary contact, making it perfect for applications where a temporary electrical connection is needed.
22mm Mounting: With a standard 22mm mounting size, it's compatible with a wide range of control panels and enclosures.
Easy Operation: The push button is designed for user-friendly operation, making it suitable for a wide range of applications.
Technical Specifications:
Color: Blue
Contact Type: Momentary
Mounting Size: 22mm
Specifications
| Main | |
| Range of product | Harmony XB7 |
| Product or component type | Pilot light |
| Device short name | XB7 |
| Mounting diameter | 22 mm |
| Sale per indivisible quantity | 10 |
| Shape of signaling unit head | Round |
| Cap/operator or lens colour | Green |
| Light source | LED |
| Bulb base | Integral LED |
| [Us] rated supply voltage | 230...240 V AC 50/60 Hz |
| Device presentation | Monolithic product |
| Complementary | |
| height | 29 mm |
| Width | 29 mm |
| Depth | 54 mm |
| Terminals description ISO n°1 | (X1-X2)PL |
| Net weight | 0.02 kg |
| Device mounting | Fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to IEC 60947-5-1 |
| Fixing center | >= 30 x 40 mm (support panel) metal - thickness: 1…6 mm |
| >= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm | |
| Fixing mode | Fixing nut beneath head: 2…2.4 N.m |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 |
| Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1 | |
| Tightening torque | 0.8…1.2 N.m conforming to IEC 60947-1 |
| Shape of screw head | Cross compatible with JIS No 1 screwdriver |
| Cross compatible with Philips no 1 screwdriver | |
| Cross compatible with pozidriv No 1 screwdriver | |
| Slotted compatible with flat Ø 4 mm screwdriver | |
| Slotted compatible with flat Ø 5.5 mm screwdriver | |
| [Ui] rated insulation voltage | 250 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Signalling type | Steady |
| Supply voltage limits | 195…264 V AC |
| Current consumption | 16...20 mA |
| Service life | 70000 h at rated voltage and 25 °C |
| Environment | |
| Protective treatment | TH |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -25…70 °C |
| Overvoltage category | Class II conforming to IEC 60536 |
| IP degree of protection | IP20 (rear face) conforming to IEC 60529 |
| IP65 (front face) conforming to IEC 60529 | |
| NEMA degree of protection | NEMA 4 conforming to UL 50 E |
| NEMA 12 conforming to UL 50 E | |
| standards | CSA C22.2 No 14 |
| JIS C8201-5-1 | |
| IEC 60947-1 | |
| IEC 60947-5-1 | |
| UL 508 | |
| JIS C8201-1 | |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Electromagnetic compatibility | Disturbing field emission class B conforming to IEC 55011 |
| Weight | 0.020000 |
|---|---|
| Brand | Schneider Electric |
| Model | XB7EV03MP |
| Color | Green |
| Depth [cm] | 54 |
| Width [cm] | 29 |
| Height [cm] | 29 |
| Range | Harmony XB7 |
| Family | IDSIG |
