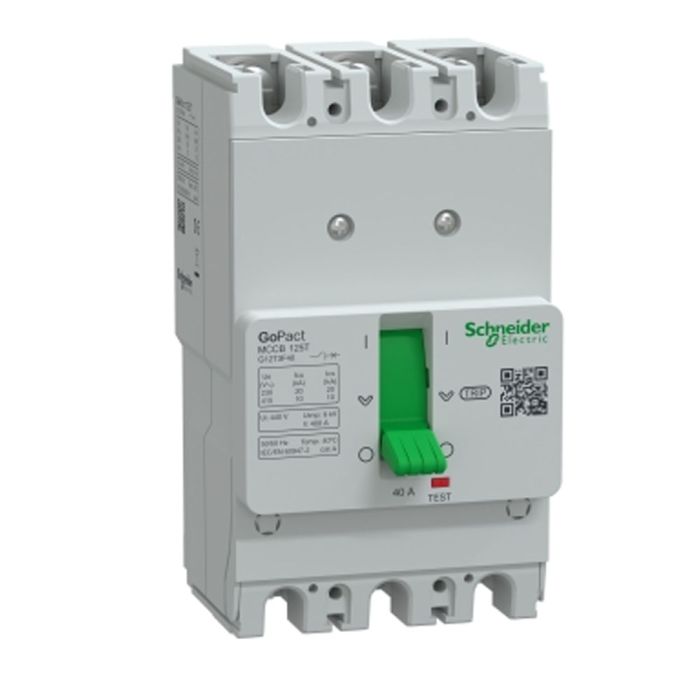

Schneider Electric Gopact MCCB 125, 3 Poles 40A Circuit Breaker, 10kA at 415VAC
Range of product: GoPact MCCB
Product type: Circuit breaker
Device application Distribution
Poles: 3P
You May Also Like:
Schneider Electric GoPact MCCB 125, 3 Poles, 100A Circuit Breaker, 10kA at 415VACSpecial Price EGP 3,663 Regular Price EGP 5,309
Schneider Electric GoPact MCCB 125, 3 Poles, 125A Circuit Breaker, 30kA at 415VACSpecial Price EGP 4,359 Regular Price EGP 6,317
Schneider Electric Circuit breaker, GoPact MCCB 125, 3 poles, 10kA at 415VAC, 32A rating, TMD trip unit, fixed thermal protectionSpecial Price EGP 3,663 Regular Price EGP 5,309
Schneider Electric EasyPact EZC100F Circuit Breaker TMD 15A, 3 Poles (3D)Special Price EGP 4,352 Regular Price EGP 6,307
Schneider Electric Gopact MCCB 125, 3 Poles 63A Circuit Breaker, 10kA at 415VACSpecial Price EGP 3,663 Regular Price EGP 5,309
Schneider Electric Gopact MCCB 200, 3 Poles 200A Circuit Breaker, 36kA at 415VACSpecial Price EGP 8,731 Regular Price EGP 12,654
Schneider Electric Gopact MCCB 125, 3 Poles 25A Circuit Breaker, 10kA at 415VACSpecial Price EGP 3,663 Regular Price EGP 5,309
Schneider Electric Gopact MCCB Undervoltage ReleaseSpecial Price EGP 4,243 Regular Price EGP 6,149
Schneider Electric Shunt Trip Gopact MCCB, 200,250A, 240VAC, 50/60HzSpecial Price EGP 4,765 Regular Price EGP 6,906
Schneider Electric Undervoltage release UVR - 200..240 V AC for EZC400Special Price EGP 8,085 Regular Price EGP 11,977
This product is part of the new GoPact Molded Case Circuit Breakers range (MCCB). It is a complete 3 poles circuit breaker made of a 125A breaker frame and of a thermal magnetic trip unit (TMD). GoPact MCCB has a good price-performance ratio for basic applications and delivers a reliable electrical protection for your applications. The breaking capacity (Icu) is 10kA rms at 415VAC 50/60Hz. The operational voltage is 415VAC 50/60Hz. This product embeds a 40A rating (In) thermal-magnetic trip unit (TMD). This TMD trip unit provides a fixed thermal protection Ir (against overloads) set to 1xIn (40A). And it provides a fixed magnetic (against short-circuits) protection set to 10xIn (400A). GoPact MCCB comes with a variety of optional accessories simple to choose and to install. Product dimensions are 75mm (Width) x 130mm (Height) x 60mm (Depth). The weight is 0.7 kg. GoPact MCCB 125 is IEC 60947-1 and IEC 60947-2 certified. GoPact MCCB range benefits from Schneider Electric quality assurance.
Specifications:
| Main | |
| Range of product | GoPact MCCB |
| Product or component type | Circuit breaker |
| product name | GoPact MCCB 125 |
| Device application | Distribution |
| Poles description | 3P |
| Protected poles description | 3D |
| [In] rated current | 40 A at 40 °C |
| [Ue] rated operational voltage | 415 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| Suitability for isolation | Yes conforming to EN/IEC 60947-2 |
| Utilisation category | Category A |
| [Icu] rated ultimate short-circuit breaking capacity | 10 kA Icu at 380/415 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| 20 kA Icu at 220/230 V AC 50/60 Hz conforming to EN/IEC 60947-2 | |
| Performance level | T 10 kA 380/415 V AC |
| Trip unit name | TM-D |
| Trip unit technology | Thermal-magnetic |
| Trip unit protection functions | LI |
| Control type | Toggle |
| Circuit breaker mounting mode | Fixed |
| Complementary | |
| [Ui] rated insulation voltage | 440 V AC conforming to EN/IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to EN/IEC 60947-2 |
| [Ics] rated service short-circuit breaking capacity | 10 kA at 380/415 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| 20 kA at 220/230 V AC 50/60 Hz conforming to EN/IEC 60947-2 | |
| Mechanical durability | 30000 cycles |
| Electrical durability | 8000 cycles at 415 V In |
| Power dissipation per pole | 18.7 W |
| Mounting support | Backplate |
| Mounting position | Horizontal and vertical |
| Flat on the back | |
| Upside connection | Front |
| Downside connection | Front |
| Connection terminals | screw terminals |
| Connection pitch | 25 mm |
| Protection type | L : for overload protection (thermal) |
| I : for short-circuit protection (magnetic) | |
| Trip unit rating | 40 A at 40 °C |
| Long-time pick-up adjustment type Ir (thermal protection) | Fixed |
| [Ir] long-time protection pick-up adjustment range | 1 x In |
| Long-time protection delay adjustment type tr | Fixed |
| Instantaneous protection pick-up adjustment type Ii | Fixed |
| [Ii] instantaneous protection pick-up adjustment range | 10 x In |
| Width (W) | 75 mm |
| Height (H) | 130 mm |
| Depth (D) | 60 mm |
| Net weight | 0.7 kg |
| Colour | Grey (RAL 7035) |
| Environment | |
| Standards | EN/IEC 60947-1 |
| EN/IEC 60947-2 | |
| EN/IEC 60947-2 Annex H | |
| Overvoltage category | III |
| Pollution degree | 3 conforming to IEC 60664-1 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Ambient air temperature for operation | -20…55 °C |
| Ambient air temperature for storage | -35…85 °C |
| Operating altitude | 0...2000 m without derating |
| 2000...5000 m with derating |
| Weight | 0.700000 |
|---|---|
| Brand | Schneider Electric |
| Model | G12T3F40 |
| Color | White |
| Device Application | Distribution |
| Depth [cm] | 6.0 |
| Width [cm] | 7.5 |
| Height [cm] | 13.0 |
| Range | EZC |
| Family | PPCCB |
| Type | Circuit Breaker |
| Poles | 3P |
| [In] Rated Current | 40 A at 40 °C |
| IP Degree of Protection | IP20 |
