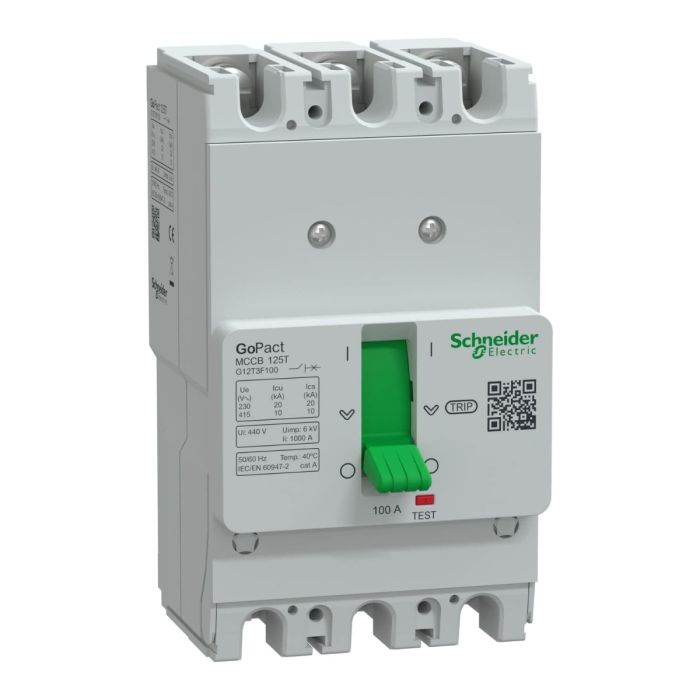

GoPact MCCB 125, 3 Poles, 100A Circuit Breaker, 10kA at 415VAC
Product or component type: Circuit breaker
Device application: Distribution
Number of poles: 3P
[in] Rated Current: 100 A at 40 °C
Explore the Schneider Electric GoPact MCCB Circuit Breaker, a robust and reliable solution for circuit protection.
Designed to safeguard your electrical systems, this circuit breaker ensures efficient protection against overloads and short circuits, providing peace of mind for various applications.
Key Features:
High Breaking Capacity: With a 10kA breaking capacity at 415VAC, this circuit breaker can handle high fault currents, enhancing the safety of your electrical circuits.
100A Rating: Featuring a 100A rating, it provides flexibility for various applications, making it suitable for both residential and commercial use.
TMD Trip Unit: Equipped with a TMD trip unit, it offers reliable and adjustable protection settings, allowing you to customize the breaker's response to your specific requirements.
3 Poles: With a 3-pole configuration, this circuit breaker is versatile and well-suited for multiple applications.
Fixed Thermal Protection: The fixed thermal protection feature ensures that your circuits remain safe and operational, even under varying conditions.
| Specifications | |
Main | |
| Range of product | GoPact MCCB |
| Product or component type | Circuit breaker |
| Product name | GoPact MCCB 125 |
| Device application | Distribution |
| Poles description | 3P |
| Protected poles description | 3D |
| [In] rated current | 100 A at 40 °C |
| [Ue] rated operational voltage | 415 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| Suitability for isolation | Yes conforming to EN/IEC 60947-2 |
| utilisation category | Category A |
| [Icu] rated ultimate short-circuit breaking capacity | 10 kA Icu at 380/415 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| 20 kA Icu at 220/230 V AC 50/60 Hz conforming to EN/IEC 60947-2 | |
| Performance level | T 10 kA 380/415 V AC |
| Trip unit name | TM-D |
| Trip unit technology | Thermal-magnetic |
| Trip unit protection functions | LI |
| control type | Toggle |
| Circuit breaker mounting mode | Fixed |
| Complementary | |
| [Ui] rated insulation voltage | 440 V AC conforming to EN/IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to EN/IEC 60947-2 |
| [Ics] rated service short-circuit breaking capacity | 10 kA at 380/415 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| 20 kA at 220/230 V AC 50/60 Hz conforming to EN/IEC 60947-2 | |
| Mechanical durability | 30000 cycles |
| Electrical durability | 8000 cycles at 415 V In |
| Power dissipation per pole | 18.7 W |
| mounting support | Backplate |
| Mounting position | Horizontal and vertical |
| Flat on the back | |
| Upside connection | Front |
| downside connection | Front |
| Connection terminals | Screw terminals |
| Connection pitch | 25 mm |
| Protection type | L : for overload protection (thermal) |
| I : for short-circuit protection (magnetic) | |
| Trip unit rating | 100 A at 40 °C |
| Long-time pick-up adjustment type Ir (thermal protection) | Fixed |
| [Ir] long-time protection pick-up adjustment range | 1 x In |
| Long-time protection delay adjustment type tr | Fixed |
| Instantaneous protection pick-up adjustment type Ii | Fixed |
| [Ii] instantaneous protection pick-up adjustment range | 10 x In |
| Width (W) | 75 mm |
| Height (H) | 130 mm |
| Depth (D) | 60 mm |
| Net weight | 0.7 kg |
| Colour | Grey (RAL 7035) |
| Weight | 0.700000 |
|---|---|
| Brand | Schneider Electric |
| Model | G12T3F100 |
| Color | Gray |
| Device Application | Distribution |
| Depth [cm] | 6 |
| Width [cm] | 7.5 |
| Height [cm] | 13 |
| Range | EZC |
| Family | PPCCB |
| Type | Circuit Breaker |
| Poles | 3P |
| [In] Rated Current | 100 A at 40 °C |
