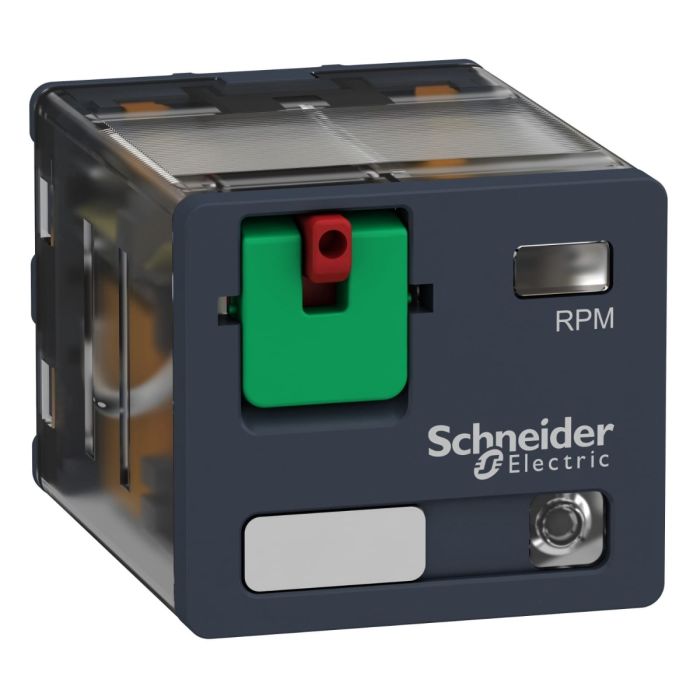

Schneider Electric Power plug-in relay, 15 A, 3 CO, with LED, 230 V AC
Range: Harmony Electromechanical Relays
Product type: Plug-in relay
Relay type: Power relay
Contacts type and composition: 3 C/O
You May Also Like:
Schneider Electric nterface Plug-In Relay, Harmony RSB, 1 C/O, 48 V AC, 12 A, with SocketSpecial Price EGP 44 Regular Price EGP 100
This Harmony RPM power plug-in relay has a coil control voltage of 230V AC and has 3 changeover contacts 3PDT (triple pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It also offers LED indicator to alert on the current status of the relay. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere. This RPM product is IP40. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Status display with LED, clearly signal both in the day and night.
Specifications:
| Main | |
| Range of product | Harmony Electromechanical Relays |
| Series name | RPM series |
| Product or component type | Plug-in relay |
| Contacts type and composition | 3 C/O |
| Relay type | Power relay |
| status LED | With |
| [Uc] control circuit voltage | 230 V AC 50/60 Hz |
| Minimum switching capacity | 170 mW at 10 mA, 17 V |
| Release time | 20 ms at nominal voltage |
| Ambient air temperature for operation | -40…55 °C |
| [Ithe] conventional enclosed thermal current | 15 A at -40…55 °C |
| Complementary | |
| Control type | Lockable test button |
| [Ie] rated operational current | 15 A at 277 V (AC) conforming to UL |
| 15 A at 28 V (DC) conforming to UL | |
| Degree of protection (Housing only) | IP40 conforming to IEC 60529 |
| [Ui] rated insulation voltage | 250 V conforming to IEC |
| 300 V conforming to CSA | |
| 300 V conforming to UL | |
| Drop-out voltage threshold | >= 0.15 Uc AC |
| Mechanical durability | 10000000 cycles |
| Electrical durability | 100000 cycles for resistive load |
| Operating rate | <= 1200 cycles/hour under load |
| <= 18000 cycles/hour no-load | |
| Utilisation coefficient | 20% |
| Dielectric strength | 1500 V AC between contacts with micro disconnection |
| 2000 V AC between coil and contact with reinforced | |
| 2000 V AC between poles with basic | |
| [Uimp] rated impulse withstand voltage | 4 kV during 1.2/50 µs |
| Protection category | RT I |
| Mounting support | Plug-in |
| Operating position | Any position |
| Test levels | Level A group mounting |
| Net weight | 0.054 kg |
| Environment | |
| Average coil consumption in VA | 1.7 at 60 Hz |
| Pollution degree | 3 |
| Standards | CSA C22.2 No 14 |
| UL 508 | |
| Product certifications | CSA |
| UL | |
| Ambient air temperature for storage | -40…85 °C |
| Vibration resistance | 3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation |
| 5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating | |
| Shock resistance | 15 gn for in operation |
| Weight | 1.000000 |
|---|---|
| Brand | Schneider Electric |
| Model | RPM32P7 |
| Range | Harmony Electromechanical Relays |
| Family | IDSIG |
| Type | Plug-in relay |
| Voltage ~ Frequency | 230 V AC 50/60 Hz |
