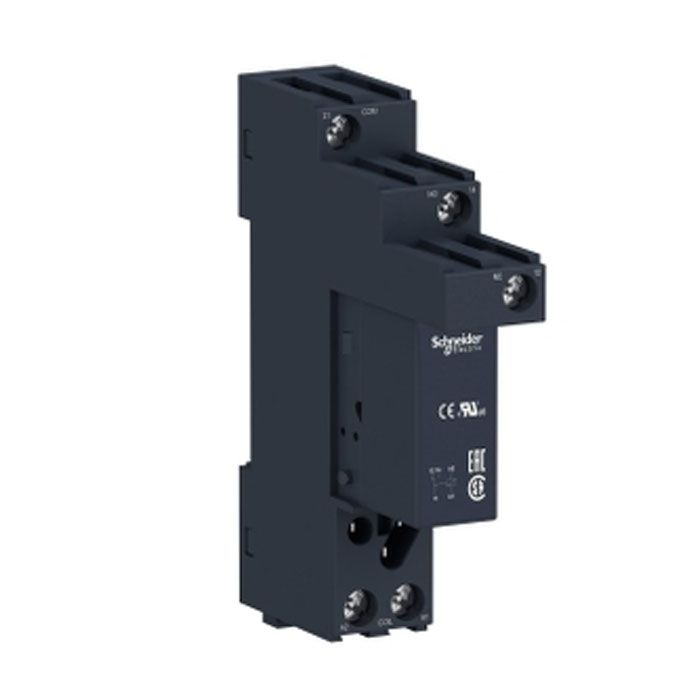

Schneider Electric nterface Plug-In Relay, Harmony RSB, 1 C/O, 48 V AC, 12 A, with Socket
In stock
SKU
RSB1A120E7S
Special Price EGP 44 Regular Price EGP 100
Schneider Electric nterface Plug-In Relay, Harmony RSB, 1 C/O, 48 V AC, 12 A, with Socket is available to buy in increments of 1
Quick Overview
Range: Harmony Relay
Product type: Plug-in relay
Contact operation: Standard
Shape of pin: Flat
Specifications:
| Main | |
| Range of Product | Harmony Relay |
| Series name | Interface relay |
| Product or Component Type | Plug-in relay |
| Device short name | RSB |
| Contacts type and composition | 1 C/O |
| Contact operation | Standard |
| [Uc] control circuit voltage | 48 V AC |
| Status LED | Without |
| [Ithe] conventional enclosed thermal current | 12 A -40…104 °F (-40…40 °C) |
| Complementary | |
| Average resistance | 1550 Ohm AC 20 °C +/- 15 % |
| [Ue] rated operational voltage | 38.4...57.6 V AC 50 Hz |
| 40.8...57.6 V AC 60 Hz | |
| [Uimp] rated impulse withstand voltage | 3.6 kV IEC 61000-4-5 |
| [Ie] rated operational current | 12 A AC-1/DC-1) NO IEC |
| 6 A AC-1/DC-1) NC IEC | |
| [Ui] rated insulation voltage | 400 V EN/IEC 60947 |
| Maximum switching voltage | 300 V DC |
| 400 V AC | |
| Drop-out voltage threshold | >= 0.15 Uc AC |
| Load current | 12 A 250 V AC |
| 12 A 28 V DC | |
| minimum switching current | 5 mA |
| Maximum switching capacity | 3000 VA AC |
| 336 W DC | |
| minimum switching voltage | 5 V |
| Minimum switching capacity | 300 mW 5 mA |
| Operating time | 10 ms between coil de-energisation and making of the Off-delay contact |
| 12 ms between coil energisation and making of the On-delay contact | |
| Mechanical durability | 30000000 cycles |
| Electrical durability | 100000 cycles, 12 A at 250 V, AC-1 NO |
| 100000 cycles, 6 A at 250 V, AC-1 NC | |
| Safety reliability data | B10d = 100000 |
| Operating rate | <= 600 cycles/hour under load |
| <= 72000 cycles/hour no-load | |
| Average coil consumption | 0.75 VA AC 60 Hz |
| Protection category | RT I |
| Operating position | Any position |
| Device presentation | Complete product |
| Sale per indivisible quantity | 10 |
| Contacts material | Silver alloy (Ag/Ni) |
| Shape of pin | Flat |
| Compatibility code | RSB |
| Environment | |
| Dielectric strength | 1000 V AC between contacts |
| 2500 V AC between poles | |
| 5000 V AC between coil and contact | |
| Vibration resistance | +/- 1 mm (f= 10…55 Hz) conforming to EN/IEC 60068-2-6 |
| IP degree of protection | IP40 conforming to EN/IEC 60529 |
| Ambient air temperature for operation | -40…158 °F (-40…70 °C) AC) |
| -40…185 °F (-40…85 °C) DC) | |
| Standards | EN/IEC 61810-1 |
| CSA C22.2 No 14 | |
| UL 508 | |
| Product Certifications | UL |
| CSA | |
| GOST | |
| Marking | CE |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Shock resistance | 10 gn 11 ms) not operating EN/IEC 60068-2-27 |
| 5 gn 11 ms) in operation EN/IEC 60068-2-27 | |
| Ordering and shipping details | |
| Category | 21127-ZELIO ICE CUBE RELAYS |
| Discount Schedule | CP2 |
| GTIN | 3.38911E+12 |
| Returnability | No |
| Country of origin | FR |
| Weight | 0.050000 |
|---|---|
| Brand | Schneider Electric |
| Model | RSB1A120E7S |
| Range | Harmony Electromechanical Relays |
| Type | Plug-in relay |
| IP Degree of Protection | IP40 |
