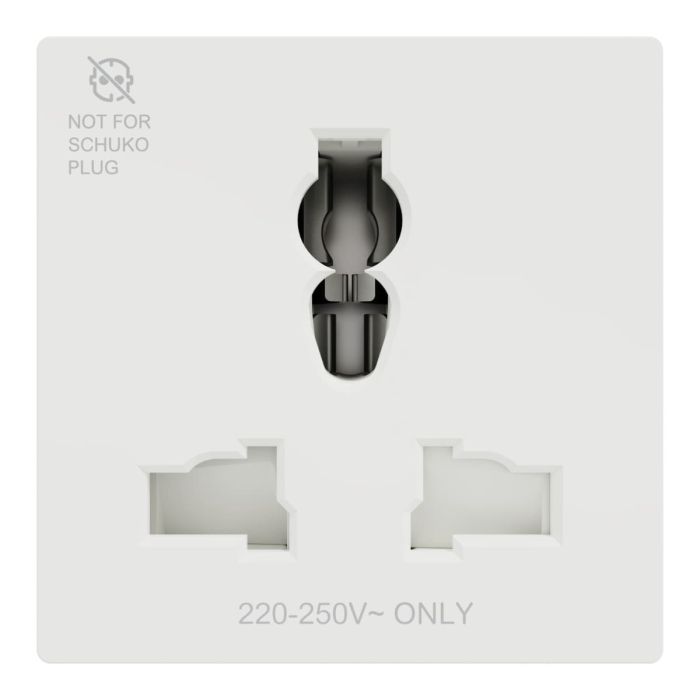

International Socket outlet, Miluz E, 16A, 250V, 2 Module, White
Product type: Socket-outlet
Fixing mode: Click-in
Number of modules: 2 modules
[In] rated current: 16 A
This Schneider Electric Miluz E device is a International Socket Outlet 16A 250V 2 module white. It is a international socket outlet, fit for different plugs, 2 module size. It has good wiring capacity for flexible, stranded and rigid cable with 4.0 sq.mm, 2.5 sq.mm and 1.5 sq.mm cable cross section. The wire stripping length is 12 mm. Cooper is the conductor material for this socket outlet. This socket outlet is safe and family user friendly. Its Ue operating voltage of 250VAC and current rating of 16A. This device enables flush mounting with click-in fixing mode and screw-clamp terminals. The dimensions are (W) 44.8mm x (H) 44.8mm x (D) 37.9mm. It weighs 43.4g. The color of this device is white with glossy finish. It is made of polycarbonate material. It reaches IP20 degree of protection. This device comes in plastic bag packing. All Miluz ED products meet the latest standards and are made out of high-quality materials to reach a long life-cycle and satisfy their end-users daily. Miluz ED products are intuitive to use and provide the possibility of unique lighting ambiances and comfort at all times. This device is compliant with IEC 60884-1 and IEC certification.
Specifications:
Main | |
Range | Miluz |
Product or component type | Socket-outlet |
Fixing mode | Click-in |
Complementary | |
device presentation | Basic element with full cover plate |
Outlet standard description | Pin earth |
Device mounting | Flush |
Type of packing | Plastic bag |
[In] rated current | 16 A |
[Ue] rated operational voltage | 250 V AC |
Material | PC (polycarbonate): cover |
PC (polycarbonate): base | |
Surface finish | Glossy |
Conductor material | Copper |
Number of modules | 2 modules |
Connections - terminals | Screw clamp terminal |
Cable stiffness | Flexible |
Rigid | |
Solid stranded | |
Number of cables | 2 |
Cable cross section | 1.5 mm² |
2.5 mm² | |
4.0 mm² | |
Wire stripping length | 12 mm |
height | 44.8 mm |
Width | 44.8 mm |
Depth | 37.9 mm |
Environment | |
IP degree of protection | IP20 |
Weight | 0.043400 |
---|---|
Brand | Schneider Electric |
Model | M3TB426_IS |
Color | White |
Warranty | 1 Year |
Depth [cm] | 3.79 |
Width [cm] | 4.48 |
Height [cm] | 4.48 |
Range | Miluz |
Family | HDCWD |
Type | Socket-Outlet |
Number of Modules | 2 modules |
Fixing Mode | Click-in |
[In] Rated Current | 16 A |
IP Degree of Protection | IP20 |
