APC 2200VA Smart-UPS On-Line, Tower, 230V, Extended runtime

In stock
SKU
SRT2200XLI
Brand
Special Price EGP 78,105 Regular Price EGP 105,224
Quick Overview

Capacity: 2200VA / 1980W
Output Voltage: 230V
Device Mounting: Rack-mounted with kit
Battery Type: Lead-Acid Battery
Battery Voltage: 72V
Transfer Time: 0 ms in online mode, 2-4 ms in ECO mode

The SRT2200XLI is a high-performance uninterruptible power supply (UPS) designed to provide reliable power protection for critical equipment in data centers, server rooms, and other demanding environments. With a 2200VA capacity, this UPS is capable of keeping your sensitive devices operational during power outages and fluctuations.

This product is part of the Smart-UPS On-Line range that provides high density, true double-conversion on-line power protection.

This 2200VA/1980W On-line pure sine wave UPS provides scalable runtime while minimizing maintenance. The 2U rack/tower convertible SRT is external battery compatible for more runtime during prolonged outages.

The UPS has an optional Network Management Card for network-based monitoring and PowerChute Business Edition for unattended shutdown.

It comes with BS1363A British, IEC 60320 C20, and Schuko CEE 7/EU1-16P inputs, 8x IEC 320 C13/60320 C13 and 2x IEC 320 C19/60320 C19 outlets.

Ideal for servers, voice/data networks, medical labs, and light industrial applications. It conforms to CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, and VDE. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.



Key Features:

High Capacity: The 2200VA capacity makes this UPS suitable for medium-sized data centers, server racks, and critical IT infrastructure.

Online Double-Conversion: The online double-conversion technology ensures clean and reliable power by converting incoming AC power to DC, then back to AC, providing consistent voltage and frequency.

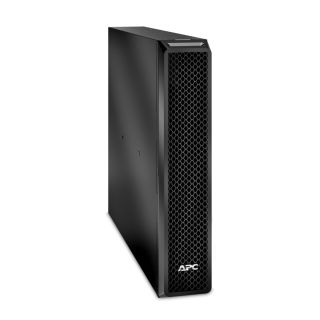

Extended Runtime: Connect optional external battery packs to extend runtime during prolonged outages.

Intuitive LCD Display: The UPS features a user-friendly LCD display for real-time status monitoring and easy configuration.



Specifications:

Capacity: 2200VA / 1980W

Topology: Online Double-Conversion

Input Voltage: 230V

Output Voltage: 230V

Battery Type: Lead-Acid Battery

Battery Voltage: 72V

Transfer Time: 0 ms in online mode, 2-4 ms in ECO mode



Applications:

Data Centers

Server Rooms

Networking Closets

Critical IT Infrastructure



Protect Your Investments: Ensure the continuous operation of your critical systems with the SRT2200XLI. Don't let power disruptions compromise your valuable equipment.

Specifications

Overview


PresentationHigh density, double-conversion on-line power protection with scalable runtime.
Lead timeUsually in Stock
Main

Run time for load

3min 53s

W

information_stroke



Min-max: 198-1980 W



Max. Capacity Used

100%

information_stroke


Main Input Voltage230 V
Other Input Voltage220 V
 240 V
Main Output Voltage230 V
Other Output Voltage220 V
 240 V
Rated power in W1980 W
Rated power in VA2200 VA
Input Connection TypeBS1363A British
 IEC 60320 C20
 Schuko CEE 7 / EU1-16P
output connection type8 IEC 60320 C13
 2 IEC Jumpers
 2 IEC 60320 C19
Cable length2.44 m
Number of cables1
Provided equipmentCD with software
 Country-specific detachable power cord
 Documentation CD
 Installation guide
 Removable support feet
 USB cable
 Warranty card
Batteries & Runtime
Run TimeView Runtime Graph
 action_new_window
EfficiencyView Efficiency Graph
 action_new_window
Battery typeLead-acid battery
Number of battery filled slots1
Number of battery free slots٠
Battery recharge time3 h
Number of battery replacement quantity1
Battery voltage72 V
Battery charger power122 W rated
Battery life3…5 year(s)
Replacement batteryAPCRBC141

action_new_window
Extended runtime1
General
UPS typeDouble conversion online
product web sub-familyHigh density
Number of power module1400
Physical
Depth58.4 cm
Mounting modeRack-mounted with kit
Two post mountable0:00
USB compatibleYes
Mounting positionVertical
Input
Network frequency40...70 Hz auto-sensing
Input voltage limits100...275 V adjustable (half load)
Output
Maximum configurable power in VA2200 VA
Maximum configurable power in W1980 W
Output frequency50/60 Hz +/- 3 Hz sync to mains
Wave typeSine wave
Harmonic distortionLess than 2 %
Crest factor3:01
bypass typeInternal bypass (automatic and manual)
Additional informationConfigurable for 220 : 230 or 240 nominal output voltage
Conformance
product certificationsCE
 EAC
 RCM
 VDE
MarkingCE Mark
StandardsEN/IEC 62040-1:2019/A11:2021
 EN/IEC 62040-2:2006/AC:2006
 EN/IEC 62040-2:2018
Environmental
Ambient air temperature for operation0…40 °C
Relative humidity0…95 % non-condensing
Operating altitude0...10000 ft
Ambient air temperature for storage-15…45 °C
Storage Relative Humidity0…95 % non-condensing
Storage altitude0.00…15240.00 m
Acoustic level55 dBA
Heat dissipation703 Btu/h
IP degree of protectionIP20
Communications & Management
Free slots1
AlarmAudible and visible alarms : prioritized by severity
Emergency power offYes
Surge Protection and Filtering
Surge energy rate340 J










More Information
BrandAPC
ModelSRT2200XLI
ColorBlack
Depth [cm]58.4
Width [cm]8.5
Height [cm]43.2
