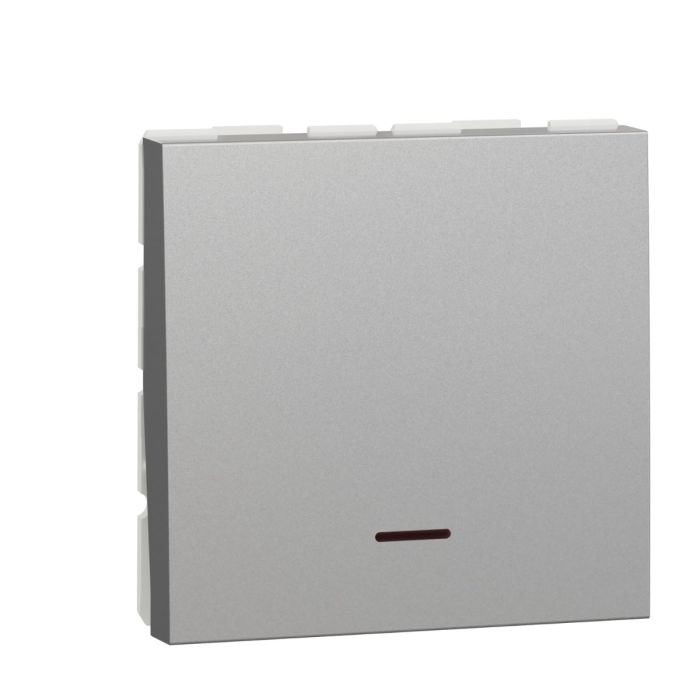

نيو يونيكا مفتاح تكييف عريض 32 امبير بلمبة، الومنيوم
النطاق: New Unica
نوع المنتج: مفتاح كهربائي
عدد المفاتيح: 1
اللون: ألومنيوم
Schneider Electric New Unica switch NU323230S is a mechanism in color aluminium. This is a 1-pole 1-way switch. Clip-in this rocker switch for the fixation. Its rated current is 32A. It is 45 mm in width,It is 45 mm in height,32 mm in depth. The IP rating of this device is IP20. This switch has screw terminals connection terminals. Being made of ASA + PC material,this switch is quite reliable and resistant. New Unica includes a suite of new designs,colors and materials. Users benefit from beautiful design that match their style and innovative products. New Unica is designed with clever features to be flexible,easy to understand and quick to install providing solutions for all customers requirements.
Main | |
| Range of product | New Unica |
| Product or component type | Switch |
| Device presentation | Mechanism |
| Technology type | Electromechanical |
| Switch function | 2-pole 1-way |
| Number of rocker | 1 |
| Device application | Light control |
| Provided equipment | LED |
| Colour tint | Aluminium |
| Type of packing | Flow-pack |
| Complementary | |
| Rated current | 32 A |
| [Ue] rated operational voltage | 250 V |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Electrical durability | 10000 cycles, cos phi = 0.6 |
| Insulation resistance | > 5 MOhm at 500 V |
| Dielectric strength | 2000 V |
| Minimum load breaking capacity | 200 operations 1.25 In and 1.1 Un, cos phi = 0.3 |
| Condition of use | Indoor |
| Opening distance | > 3 mm |
| Actuator | Rocker |
| Number of modules | 2 modules |
| Pilot light | LED, colour: amber, current consumption: 1 mA, temperature rise: 15 °C |
| Connections - terminals | Screw terminals |
| Cable cross section | 0…6 mm² flexible cable |
| 0…6 mm² rigid cable | |
| Material | ASA + PC: mechanism cover |
| ABS (acrylonitrile butadiene-styrene): mechanism cover | |
| Surface finish | Glossy |
| specific treatment - integrated within the material | Painted |
| Fixing mode | Clip-in |
| Width | 45 mm |
| Height | 45 mm |
| Depth | 41 mm |
| Embedding depth | 30 mm |
| Net weight | 0.039 kg |
| Ambient air temperature for operation | -5…40 °C |
| Ambient air temperature for storage | -5…50 °C |
| Standards | EN 60669-1 |
| LV directive | |
| EMC directive | |
| Product certifications | CE |
| AENOR | |
| EAC | |
| NF | |
| VDE | |
| resistance to chemical agents | Resistant to alcohol (70 %) |
| Resistant to alcohol (96 %) | |
| Resistant to A-Lactic Acid | |
| Resistant to diluted quaternary ammonium | |
| Resistant to diluted bleach | |
| Resistant to diluted ammonia | |
| Resistant to soapy water | |
| Resistant to crystal cleaner | |
| Resistant to hydrogen peroxide 10 volumes | |
| Resistant to hexane | |
| Environment | |
| IP degree of protection | IP4X |
| IK degree of protection | IK04 |
| Environmental characteristic | Window-cleaning fluid |
| Bleach | |
| Acetone | |
| Oil | |
| UV resistant | |
| Petrol | |
| Liquid soap | |
| Alcohol | |
| الوزن | 0.024000 |
|---|---|
| الماركة | شنايدر إليكتريك |
| الموديل | NU323230S |
| اللون | ألومنيوم |
| مجموعة منتجات | يونيكا |
| العائلة | HDCWD |
| نوع المنتج | مفتاح |
| عدد الفتحات | 2 فتحة |
| الوظيفة | تحكم في الإضاءة |
| طريقة التركيب | عاشق ومعشوق |
| عدد الراكات | 1 راك |
| التيار المقنن | 32 A |
| درجة الحماية ضد الغبار والماء IP | IP4X |
| درجة الحماية ضد التأثيرات الميكانيكية الخارجية IK | IK04 |
