شنايدر إليكتريك نيو يونيكا لقمة جرس زنان عريض، أسود
النطاق: نيو يونيكا
نوع المنتج: جرس تنبيه
عدد الوحدات: 2 وحدة
وضع التثبيت: تثبيت بالضغط
اللون: أسود

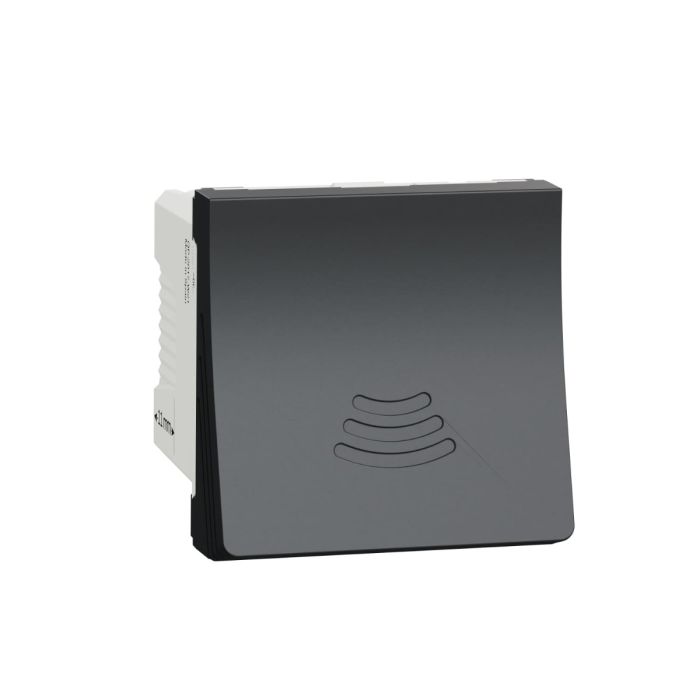

Schneider Electric New Unica buzzer NU378554 is a mechanism in color anthracite. And its acoustic level is between 76 and 80 d. B. And its current consumption is quite low, which is 40 m. A. 230V is the rated operational voltage. Besides, the IP rating of this device is IP20. What's more, it well satisfied the standard of CE, EN 62080. Also, it is environment-friendly, with UV resistant, acetone, alcohol, ammonia, bleach, liquid soap, oil, petrol, window-cleaning fluid reached. New Unica includes a suite of new designs, colors and materials. Users benefit from beautiful design that match their style and innovative products. New Unica is designed with clever features to be flexible, easy to understand and quick to install providing solutions for all customers requirements.
Main | |
Range | New Unica |
Device application | Signalling |
Product or component type | Buzzer |
Aesthetic name | Unica (standard aesthetic) |
Device presentation | Mechanism |
[Ue] rated operational voltage | 230 V AC 50/60 Hz |
Number of modules | 2 modules |
Fixing mode | Clip-in |
Colour tint | Anthracite (RAL 7021) |
Complementary | |
Current consumption | 40 mA |
Type of setting | Volume can be adjusted using a screw |
Device mounting | Flush |
Operating time | <= 30 ms |
Connections - terminals | Screw terminals |
Acoustic level | Between 76 and 80 dB |
Cable cross section | 0.75…1.5 mm² flexible cable |
0.75…1.5 mm² rigid cable | |
Material | Thermoplastic ABS-UV stabilised: mechanism rocker |
PC (polycarbonate) GF10 FR: casing | |
Standards | EN 62080 |
CE | |
Directives | 2014/35/EU - low voltage directive |
Ambient air temperature for operation | 15…30 °C |
Ambient air temperature for storage | 0…35 °C |
Embedding depth | 31 mm |
Depth | 50 mm |
Width | 45 mm |
Height | 45 mm |
Net weight | 0.091 kg |
resistance to chemical agents | Resistant to alcohol (70 %) |
Resistant to alcohol (96 %) | |
Resistant to A-Lactic Acid | |
Resistant to diluted quaternary ammonium | |
Resistant to diluted bleach | |
Resistant to diluted ammonia | |
Resistant to soapy water | |
Resistant to crystal cleaner | |
Resistant to hydrogen peroxide 10 volumes | |
Resistant to hexane | |
Environment | |
IK degree of protection | IK04 |
IP degree of protection | IP20 |
الوزن | 0.040000 |
---|---|
الماركة | شنايدر إليكتريك |
الموديل | NU378554 |
اللون | جرافيتي |
مجموعة منتجات | يونيكا |
العائلة | HDCWD |
نوع المنتج | إنذار صوتي |
عدد الفتحات | 2 فتحة |
الوظيفة | إشارة |
طريقة التركيب | عاشق ومعشوق |
درجة الحماية ضد الغبار والماء IP | IP20 |
درجة الحماية ضد التأثيرات الميكانيكية الخارجية IK | IK04 |
