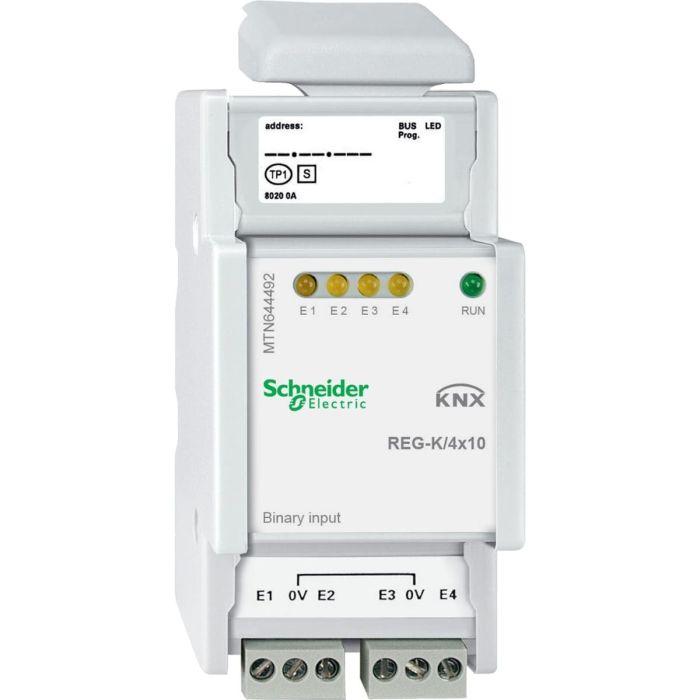

مدخل ثنائي بنظام REG-K/4x10، رمادي فاتح

متوفر
كود المنتج
MTN644492
Special Price ٥٬٠٠٥ ج.م.‏ Regular Price ١٠٬٩٤٥ ج.م.‏
احصل 100100 نقطة عند الشراء
مدخل ثنائي بنظام REG-K/4x10، رمادي فاتح متاحة للشراء بزيادة بالمقدار 1
نظرة سريعة

Total number of 18 mm modules: 2.5
[Ue] rated operational voltage: 10 V AC 50 Hz
Number of inputs: 4

KNX binary input REG-K/4x10. For connecting four conventional push-buttons or floating contacts to the KNX. Internally generates a signal voltage SELV, electrically isolated from the bus. With integrated bus coupler and plug-in screw terminals. The input voltage level is displayed at each input with a yellow LED. A green LED indicates that the device is ready for operation once the application has been loaded. For installation on DIN rails TH35 according to EN 60715. The bus is connected using a bus connecting terminal. a data rail is not necessary. KNX software functions:. Switching, dimming or blind control via 1 or 2 inputs. Positioning values for blind control (8-bit). Pulse edges with 1-, 2-, 4-, or 8-bit telegrams. Differentiation between short/long operation. Initialisation telegram. Cyclical sending. Pulse edges with 2-byte telegrams. 8-bit linear regulator. Disable function. Break/make contact. Debounce time. Inputs: 4. Contact voltage: max. 10 V, clocked. Contact current: max. 2 mA, pulsing. Cable length: max. 50 m. Device width: 2.5 modules, approx. 45 mm. Contents: With bus connecting terminal and cable cover.

Specifications:

Main



Range of product

KNX

product or component type

Binary input

Bus type

KNX

Complementary



total number of 18 mm modules

2.5

wiring device mounting

DIN rail

[Ue] rated operational voltage

10 V AC 50 Hz

Output type

Provide signal voltage

number of inputs

4

input type

Binary

local signalling

LED

Environment



IP degree of protection

IP20

معلومات اكثر
الوزن0.157000
الماركةشنايدر إليكتريك
اللونرمادي فاتح
مجموعة منتجاتKNX
درجة الحماية ضد الغبار والماء IPIP20
