شنايدر إليكتريك نيو يونيكا لقمة USB (Type A)، بيج
النطاق: نيو يونيكا
نوع المنتج: شاحن USB
عدد الوحدات: 1 وحدة
اللون: بيج

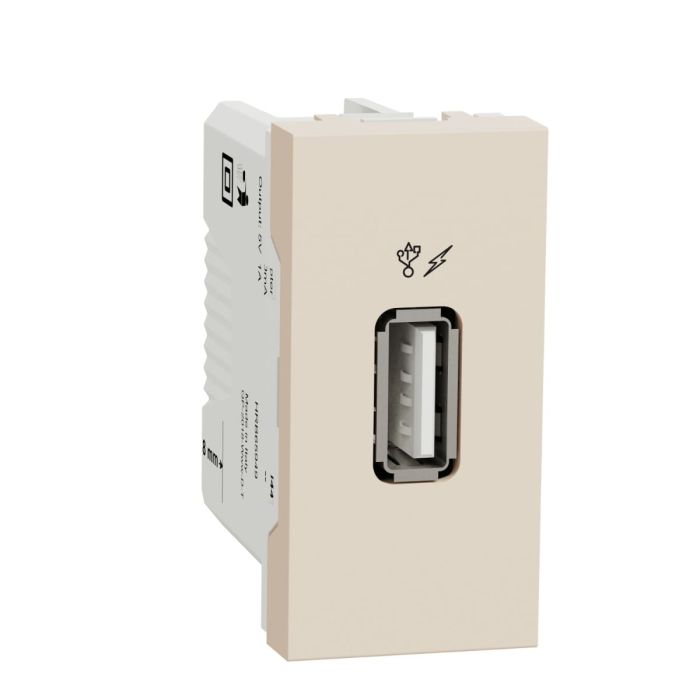

Schneider Electric New Unica USB charger NU342844 is a mechanism in color beige with 2 terminals. The maximum input power of this USB charger is 7.5 W. Its output current is 1 A. In addition, the rated operational voltage of this device is 100...240V. The protection type is short-circuit protection, improving safety level. Its fixing mode is clip-in. It is 22.5 mm in width, 45 mm in height, 42 mm in depth, with an embedding depth of 30.8 mm. Besides, it reaches IK04 protection level, which can help protect against impact. other values not applied IP2x. C What's more, this device is qualified as a green premium product, with minimal use of hazardous substances. And it is mercury free This USB charger is SVHC (substances of very high concern) free too. Also, it is environment-friendly, with UV resistant, acetone, alcohol, ammoniA. bleach, liquid soap, oil, petrol, window-cleaning fluid reached. The USB charger is made of PC (polycarbonate) GF10 FR, thermoplastic ABS-UV stabilized, making it as resistant as possible. What's more, it well satisfied the standard of EN 61000-6-1, EN 61000-6-3, IEC 62368-1, IEC 62680-3. New Unica includes a suite of new designs, colors and materials. Users benefit from beautiful design that match their style and innovative products. New Unica is designed with clever features to be flexible, easy to understand and quick to install providing solutions for all customers requirements.
Main | |
Range | New Unica |
Product or component type | USB charger |
Device presentation | Mechanism |
Complementary | |
Device application | Charger |
Device mounting | Flush |
Number of modules | 1 module |
Type of USB power supply | USB type A |
Colour tint | Beige (RAL 1013) |
[Ue] rated operational voltage | 100...240 V AC 50/60 Hz |
Nominal output power | 5 W |
Input power | 7.5 W |
Socket number | 1 |
Integrated connection type | 1 USB type A 5 V DC, maximum load current: 1 A |
Material | PC (polycarbonate) GF10 FR: casing |
PC (polycarbonate) GF10 FR: internal cover | |
Thermoplastic ABS-UV stabilised: centre plate | |
Protection type | Short-circuit protection |
Number of terminals | 2 screw terminals |
Shape of screw head | Pozidriv No 1 |
Clamping connection capacity | 1.5...2.5 mm² for rigid cable(s) |
1.5...2.5 mm² for flexible cable(s) | |
Wire stripping length | 8 mm |
Product compatibility | All devices fulfilling the EN 62684 standard |
Fixing mode | By screws and claws |
Type of packing | Flow-pack |
Ambient air temperature for operation | 5…45 °C |
Ambient air temperature for storage | -5…50 °C |
Standards | IEC 62368-1 |
EN 61000-6-1 | |
EN 61000-6-3 | |
IEC 62680-3 | |
Height | 45 mm |
Width | 22.5 mm |
Depth | 42 mm |
Embedding depth | 27 mm |
Net weight | 0.03 kg |
resistance to chemical agents | Resistant to alcohol (70 %) |
Resistant to alcohol (96 %) | |
Resistant to A-Lactic Acid | |
Resistant to diluted quaternary ammonium | |
Resistant to diluted bleach | |
Resistant to diluted ammonia | |
Resistant to soapy water | |
Resistant to crystal cleaner | |
Resistant to hydrogen peroxide 10 volumes | |
Resistant to hexane | |
Environment | |
Electrical insulation class | Class II |
IK degree of protection | IK04 |
IP degree of protection | IP2XC |
الوزن | 0.033500 |
---|---|
الماركة | شنايدر إليكتريك |
الموديل | BDNU342844 |
اللون | عاجي |
مجموعة منتجات | يونيكا |
العائلة | HDCWD |
