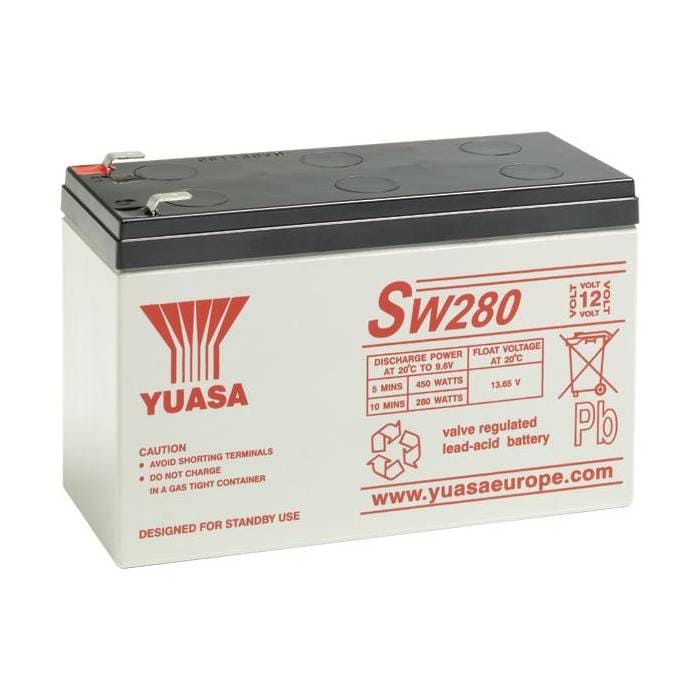

SW280 (12V 280W) High Rate VRLA Battery, Yuasa
Out of stock
SKU
SW280
EGP 3,135
Quick Overview
Nominal Voltage (V): 12
Terminal Type: FASTON Quickfit 6.35 mm
10m Rate Constant Power (W/Block): 280
10m Rate Constant Power (W/Cell): 46.7
You May Also Like:
APC Easy UPS On-Line SRV Battery Pack 2/3kVA for Extended runtime model, 72V, SRV72BP-9ASpecial Price EGP 55,000 Regular Price EGP 57,000
Schneider Electric Easy UPS On-Line SRVS Rackmount Battery Pack for 2/3kVA Extended Runtime Model, 72V, SRVS72RLBP-9ASpecial Price EGP 58,000 Regular Price EGP 62,700
Schneider Electric Easy UPS On-Line SRVS Tower Battery Pack for 2/3kVA Extended Runtime Model, 72V, SRVS72BP-9ASpecial Price EGP 55,000 Regular Price EGP 57,000
EUROBAT Classification: 6 to 9 years 'General Purpose'
High rate discharge performance VRLA battery
Lead Calcium Grids for superior life
Absorbed Glass Mat construction with no free acid
Gas recombination
Good recovery from deep discharge
Can be installed and operated in orientations up to 90° from the upright position
Specifications:
| Nominal Voltage (V) | 12 |
| 10m Rate Constant Power (W/Block) | 280 |
| 10m Rate Constant Power (W/Cell) | 46.7 |
| Length (mm) | 151 (±1) |
| Width (mm) | 65 (±1) |
| Height Over Terminals (mm) | 97.5 (±2) |
| Mass (kg) | 2.6 |
| Terminal Type | FASTON Quickfit 6.35 mm |
| Storage Temperature Range (°C) | -20 to +60 |
| Charge Temperature Range (°C) | -15 to +50 |
| Discharge Temperature Range (°C) | -20 to +60 |
| Capacity Loss per Month at 20°C (%) | 3 |
| Case Material Standard | ABS (UL94:HB) |
| Case Material FR Version | UL94:V0 |
| Float Charge Voltage Block (V) | 13.65 (±1%) |
| Float Charge Voltage Cell (V) | 2.275 (±1%) |
| Float Charge Voltage Temp Correction (mV/°C) | -3 |
| Cyclic Charge Voltage Block (V) | 14.5 (±3%) |
| Cyclic Charge Voltage Cell (V) | 2.42 (±3%) |
| Cyclic Charge Voltage Temp Correction (mV/°C) | -4 |
| Float Charge Current Limit (A) | 1.9 |
| Cyclic Charge Current Limit (A) | 1.9 |
| Maximum Discharge Current 1 sec (A) | 150 |
| Maximum Discharge Current 1 min (A) | 50 |
| Impedance at 1 kHz (mΩ) | 14 |
| Weight | 15.500000 |
|---|---|
| Brand | Yuasa |
| Model | SW280 |
