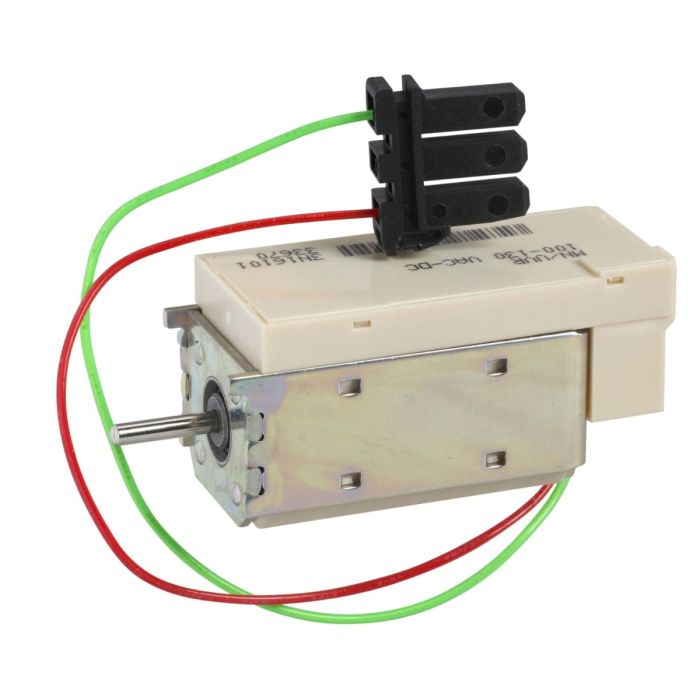

Voltage Release MX, 200-250 V DC/AC 50-60 Hz
Product or component type:Voltage release
Range compatibility: Masterpact (MasterPact NT) - ComPact (ComPact NS630b...1600)
Mounting mode: Drawout
The Voltage Release MX is a crucial component designed to ensure the safe and efficient operation of your electrical systems. This release mechanism is compatible with a voltage range of 200-250 V DC/AC at 50-60 Hz, making it suitable for a variety of applications.
Key Features:
Safety Mechanism: The Voltage Release MX serves as a safety mechanism to release voltage in the specified range.
Wide Compatibility: Designed to work with a voltage range of 200-250 V DC/AC, offering versatility.
Reliable Operation: Ensures the reliability and protection of your electrical systems.
Technical Specifications:
Type: Voltage Release
Voltage Range: 200-250 V DC/AC
Frequency: 50-60 Hz
The Voltage Release MX is an essential component for your electrical systems, providing safety and reliability by releasing voltage when needed.
Specifications | |
Main | |
| Range | MasterPacT |
| Range of product | MasterPact NT |
| ComPacT NS630b...1600 new generation | |
| device short name | MX |
| Product or component type | Voltage release |
| Device application | Control |
| Voltage release type | Opening coil |
| Instantaneous voltage release | |
| control type | Standard |
| [Uc] control circuit voltage | 200...250 V AC 50/60 Hz |
| 200...250 V DC | |
| Complementary | |
| Operating threshold | 0.7...1.1 x Un opening |
| Response time | 50 ms +/- 10 % for MasterPact NT |
| 50 ms +/- 10 % for Compact NS630b...1600 | |
| Supply holding power | 4.5 VA |
| Weight | 0.180000 |
|---|---|
| Brand | Schneider Electric |
| Model | 33813 |
| Range | PROXAccessories |
| Family | PPACB |
