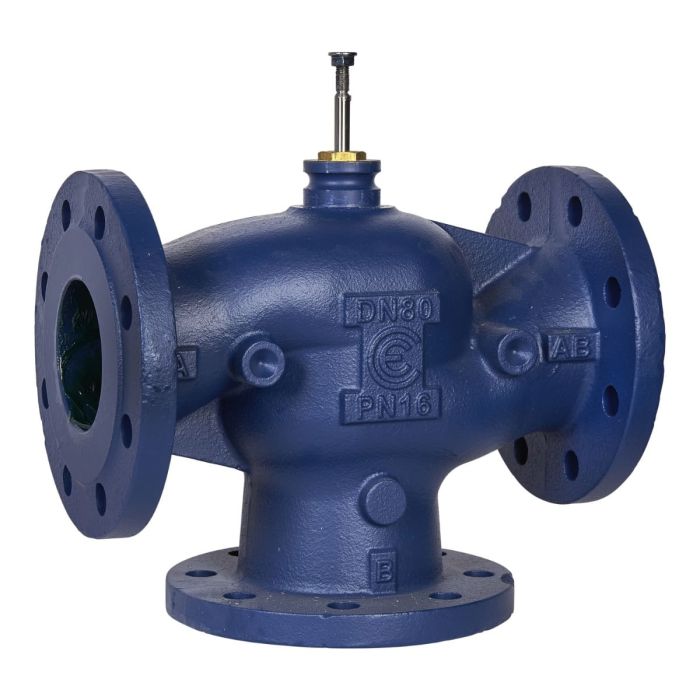

Schneider Electric VG311F Globe Valve, 3-Way, DN80, Flanged, Kvs 100 m³/h, Cast Iron Body and Seat, Brass Plug.
Product type: Valve
Valve type: Globe
Body size: 80 mm (3 in)
Pipe size: 80 mm
The globe valve VG311F is a large 3-way globe mixing valve designed for a wide range of heating and cooling applications. The valve uses a crown plug for media with a very high rangeability
Specifications:
Main | |
Product or component type | Valve |
Valve type | Globe |
Valve product series | VG311F |
Valve model | VG311F-80C 100M SU00 |
Medium compatibility | Glycol 25 % |
Glycol 30 % | |
Glycol 50 % | |
Water | |
Valve configuration | 3-Way |
Valve connection type | Flanged |
Valve connection size | DN80 (ISO 7005-2) |
Body size | 80 mm (3 in) |
Pipe size | 80 mm |
Flow characteristic | Equal percentage |
Flow coefficient | 92.5 cv |
100 kvs | |
Pressure class | PN16 |
Operating fluid temperature | -10…150 °C |
Pressure fluid max delta P normal life | 199.9 kPa |
Control valve rangeability | Greater than 50:1 |
Stroke length | 45 mm |
Seat leakage | Port A: Less than 0.03 % of kvs |
Stem flow action | Stem up closes A and opens B to AB |
Stem movement | Linear |
Trim material | Brass |
body material | Grey cast iron GG-25 |
Seat material | Port A: grey cast iron GG-25 |
Port B: grey cast iron GG-25 | |
Stem material | Stainless steel AISI 303 |
Plug material | CW614N brass |
Stem seal material | EPDM (ethylene propylene diene monomer) |
Seating seal material | Port A:metal to metal |
Packing material | EPDM (ethylene propylene diene monomer) |
| Weight | 24.000000 |
|---|---|
| Brand | Schneider Electric |
| Model | VG311F-80C |
