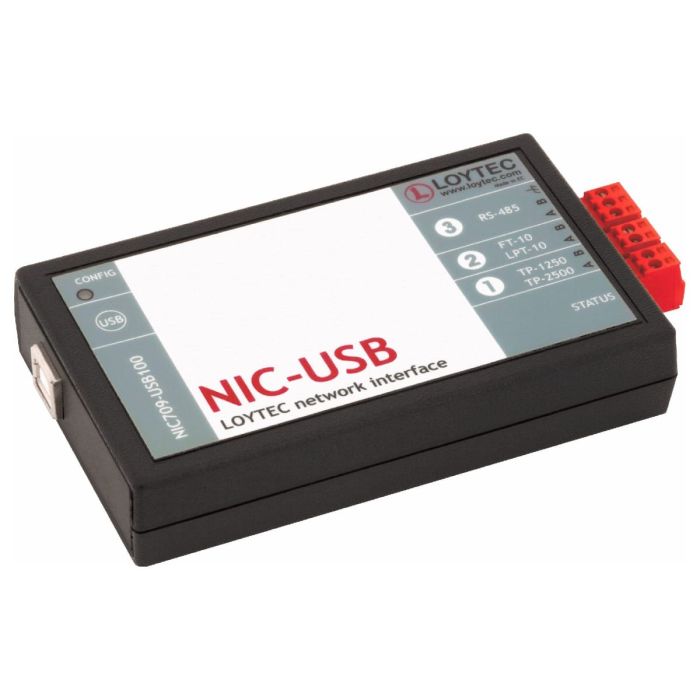

USB-Interface, connects to the USB port of a PC, supports LonMark TP/FT-10, TP/XF-1250, and TP/RS-485

LOYTEC NICs are the most universal network interfaces for CEA‑709 and IP-852 (Ethernet/‌IP) channels. Based on LOYTEC’s Core Technologies, they offer high packet rates and short response times. All NICs are fully compatible with products like NL220, ALEX, LonMaker®, and other LNS® applications. The NICs are also compatible with NodeUtil32, NLUtil, OPC servers, and high performance ORION applications.

The multiplexed network interface (MNI) support allows starting multiple LNS® or MIP applications to run in parallel with an LPA on a single network interface.

The built-in VPN function provides for simple VPN setup and secure access to remote sites. The LTE-800 interface enables wireless access to remote sites through a mobile carrier.

Features:

Network interface for TP/FT‑10, TP/XF‑1250, RS485, and Ethernet/IP (IP‑852) channels

Available for USB and Ethernet port

Create up to eight network nodes with a single network interface (MNI devices)

Use the LPA, LSD Tool, your ORION applications, MIP applications, and LNS® (VNI) applications on a single network interface at the same time

Compatible with BMS e.g. Honeywell EBI, TAC VISTA, etc.

Compatible with LNS® applications in high performance VNI™ mode e.g. NL220, NLFacilities, NLOPC-VNI, ALEX, LonMaker®, etc.

Compatible with MIP applications (LDV interface) e.g. NodeUtil32, NLUtil, NLOPC-MIP, Honeywell CARE 5/7, etc.

Compatible with high performance ORION applications (ORION API)

NIC852 is fully compatible with L-IP and i.LON® 600 Internet routers

Use legacy MIP applications together with the IP‑852 (Ethernet) channel

With dual Ethernet, switched or separated (only NIC709‑IP3E100C, NIC709‑IP1E100C)

Supports WLAN with LWLAN‑800 Interface (only NIC709‑IP3E100C, NIC709‑IP1E100C)

Supports LTE with LTE‑800 Interface (only NIC709‑IP3E100C, NIC709‑IP1E100C)

Runs on Windows 10, Windows Server 2012, Windows Server 2016, Windows Server 2019
