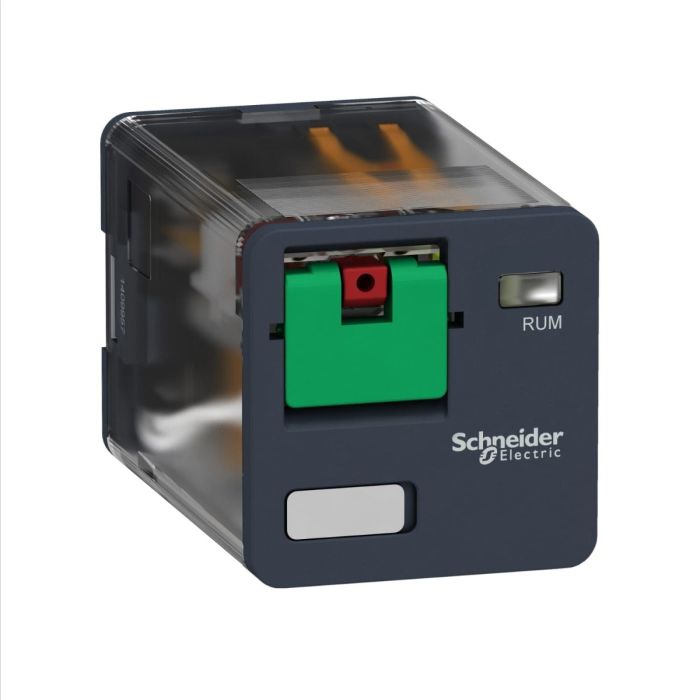

Name: Schneider Electric Universal Plug-In Relay, 10 A, 2 CO, 230 V AC
Brand: Gila Electric
SKU: RUMC21P7
Price: 371.00 EGP
Availability: InStock

Enhance your control and automation system with the Schneider Electric RUMC21P7 Universal Plug-In Relay. This relay offers versatile and reliable switching for a wide range of applications. It features 2 CO (changeover) contacts, providing flexibility in your control setup. With a current rating of 10 A and a voltage rating of 230 V AC, this relay is suitable for various industrial and commercial applications.

Key Features:

Versatile Control: The RUMC21P7 relay is designed to provide versatile control with 2 CO (changeover) contacts, allowing you to configure your control system to suit your specific needs.

Reliable Performance: Schneider Electric is known for its reliability, and this relay is no exception. It ensures consistent and dependable switching in your control system.

Wide Voltage Range: With a voltage rating of 230 V AC, this relay can be used in a variety of applications, making it a versatile solution for your control and automation needs.

Specifications:


Main
Range of product	Harmony Electromechanical Relays
Series name	Universal
Product or component type	Plug-in relay
Device short name	RUM
Contacts type and composition	2 C/O
[Uc] control circuit voltage	230 V AC 50/60 Hz
[Ithe] conventional enclosed thermal current	10 A at -40…55 °C
Status LED	Without
control type	Lockable test button
Utilisation coefficient	٠
Complementary
Shape of pin	Cylindrical
[Ui] rated insulation voltage	250 V conforming to IEC
	300 V conforming to CSA
	300 V conforming to UL
[Uimp] rated impulse withstand voltage	4 kV (1.2/50 µs)
Contacts material	AgNi
[Ie] rated operational current	10 A at 277 V AC conforming to UL
	10 A at 30 V DC conforming to UL
	10 A at 30 V DC conforming to CSA
	5 A at 250 V AC (NC) conforming to IEC
	5 A at 28 V DC (NC) conforming to IEC
	10 A at 250 V AC (NO) conforming to IEC
	10 A at 28 V DC (NO) conforming to IEC
	10 A at 277 V AC conforming to CSA
Maximum switching voltage	250 V conforming to IEC
Resistive rated load	10 A at 250 V AC
	10 A at 28 V DC
Maximum switching capacity	2500 VA/280 W
Minimum switching capacity	170 mW at 10 mA, 17 V
Operating rate	<= 18000 cycles/hour no-load
	<= 1200 cycles/hour under load
Mechanical durability	5000000 cycles
Electrical durability	100000 cycles for resistive load
Average coil consumption in VA	3 at 60 Hz
Drop-out voltage threshold	>= 0.15 Uc AC
Operate time	20 ms at nominal voltage
Release time	20 ms at nominal voltage
Average coil resistance	6800 Ohm at 20 °C +/- 15 %
Rated operational voltage limits	184...253 V AC
Protection category	RT I
Test levels	Level A group mounting
Safety reliability data	B10d = 100000
Operating position	Any position
Net weight	0.086 kg
Device presentation	Complete product
Environment
Dielectric strength	1500 V AC between contacts with micro disconnection
	2500 V AC between coil and contact with reinforced
	2000 V AC between poles with basic
product certifications	CSA
	UL
	EAC
standards	IEC 61810-1
	UL 508
	CSA C22.2 No 14
Ambient air temperature for storage	-40…85 °C
Ambient air temperature for operation	-40…55 °C
Vibration resistance	3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation
	4 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating
IP degree of protection	IP40
Shock resistance	10 gn (duration = 11 ms) for in operation conforming to IEC 60068-2-27
	10 gn (duration = 11 ms) for not operating conforming to IEC 60068-2-27
Pollution degree	3

Weight	0.086000
Brand	Schneider Electric
Model	RUMC21P7
Range	Zelio Relays - RUM
Family	IDSIG

Schneider Electric Universal Plug-In Relay, 10 A, 2 CO, 230 V AC
