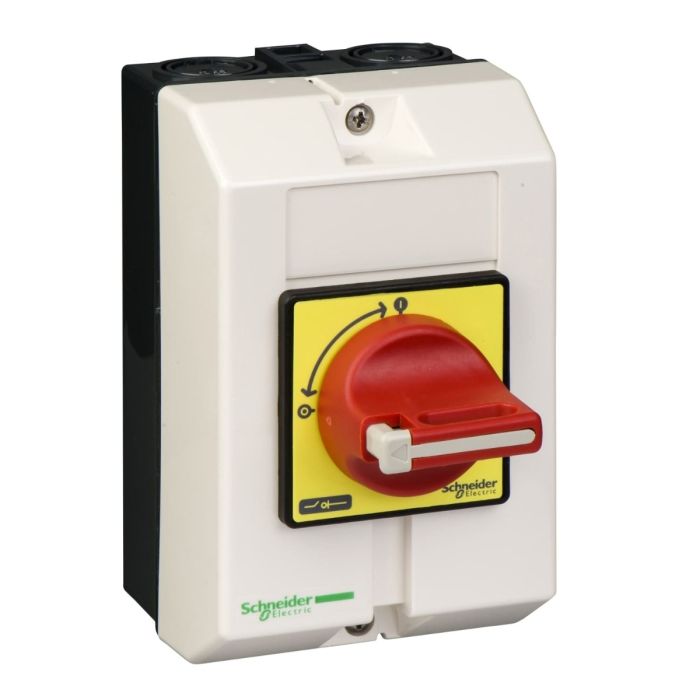

Schneider Electric TeSys Vario Enclosed Emergency Switch-Disconnector, 20A, IP65
Range: TeSys VARIO
Product type: Enclosed emergency stop switch disconnector
Control type: Rotary handle
Poles: 3P
Introducing the Schneider Electric VCF0GE TeSys Vario Enclosed Emergency Switch-Disconnector, a reliable solution designed to enhance safety and control in various applications. This enclosed switch-disconnector offers a 20A rating and features an IP65 protection rating, making it suitable for challenging environments.
Key Features:
Reliable Safety: The TeSys Vario Emergency Switch-Disconnector ensures the safety of personnel and equipment.
Current Rating: With a 20A current rating, it is suitable for a wide range of electrical requirements.
IP65 Protection: The enclosure is rated IP65, providing protection against dust and water ingress.
Specifications:
Main | |
| Range | TeSys |
| Product name | TeSys VARIO |
| Device short name | VCF |
| Product or component type | Enclosed emergency stop switch disconnector |
| Performance level | High performance |
| Poles description | 3P |
| control type | Rotary handle |
| handle colour | Red |
| Handle front plate colour | Yellow |
| Rotary handle padlocking | 1 to 3 padlocks 4…8 mm |
| Complementary | |
| Marking | 0 - 1 |
| [Ue] rated operational voltage | 690 V AC |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ithe] conventional enclosed thermal current | 20 A |
| [Ie] rated operational current | 14.5 A (AC-23A) at 400 V |
| Rated operational power in W | 7.5 kW at 400 V (AC-23) |
| 5.5 kW at 400 V (AC-3) | |
| Intermittent duty class | 30 |
| Making capacity ( I rms) | 250 A at 400 V AC-21A |
| 250 A at 400 V AC-22A | |
| 250 A at 400 V AC-23A | |
| [Icm] rated short-circuit making capacity | 1 kA at 400 V at Ipeak |
| [Icw] rated short-time withstand Rms current | 300 A at 400 V duration: 1 s |
| Rated conditional short-circuit current | 10 kA at 400 V - associated fuse 25 A aM |
| 10 kA at 400 V - associated fuse 25 A gG | |
| Breaking capacity | 200 A at 400 V (AC-21A) |
| 200 A at 400 V (AC-22A) | |
| 200 A at 400 V (AC-23A) | |
| Mechanical durability | 100000 cycles |
| Electrical durability | 100000 cycles AC-21 |
| 30000 cycles DC-1...5 | |
| Environmental characteristic | Standard environment |
| Suitability for isolation | Yes |
| Connections - terminals | Screw clamp terminals10 mm² - solid |
| Screw clamp terminals6 mm² - flexible - with cable end | |
| Tightening torque | 2.1 N.m - on screw clamp terminals |
| Fire resistance | 960 °C conforming to IEC 60595-2-1 |
| handle front plate dimension | 60 x 60 mm |
| height | 146 mm |
| Width | 90 mm |
| Depth | 131 mm |
| Net weight | 0.5 kg |
| Environment | |
| standards | IEC 60204 |
| IEC 60947-4-1 | |
| Protective treatment | TC |
| Weight | 0.500000 |
|---|---|
| Brand | Schneider Electric |
| Model | VCF0GE |
| Depth [cm] | 131 |
| Width [cm] | 90 |
| Height [cm] | 146 |
| Range | CTR Others |
| Family | PPCTR |
