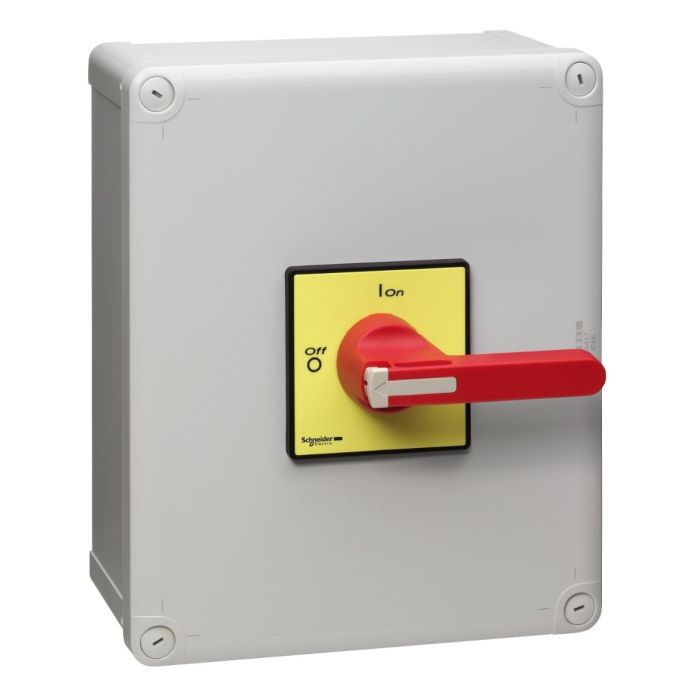

Schneider Electric TeSys Vario Enclosed Emergency Switch-Disconnector, 140A, IP65, Long Handle
Range: TeSys
Product type: Enclosed emergency stop switch disconnector
Type of operator: Long handle
Poles: 3P
Introducing the Schneider Electric VCF6GEN TeSys Vario Enclosed Emergency Switch-Disconnector, a robust and dependable solution for ensuring safety and control in various applications. This enclosed switch-disconnector offers a 140A rating and features an IP65 protection rating, making it suitable for even challenging environments.
Key Features:
Reliable Safety: The TeSys Vario Emergency Switch-Disconnector is designed to ensure the safety of personnel and equipment.
High Current Rating: With a 140A current rating, it can handle a range of electrical requirements.
IP65 Protection: The enclosure is rated IP65, providing protection against dust and water ingress.
Long Handle: The switch-disconnector is equipped with a long handle for ease of operation.
Specifications:
Main | |
| Range | TeSys |
| Product name | TeSys VARIO |
| Device short name | VCF |
| Product or component type | Enclosed emergency stop switch disconnector |
| Performance level | High performance |
| Poles description | 3P |
| control type | Rotary handle |
| Type of operator | Long handle |
| handle colour | Red |
| Handle front plate colour | Yellow |
| Rotary handle padlocking | 1 to 3 padlocks 4…8 mm |
| Complementary | |
| Marking | 0 - 1 |
| [Ue] rated operational voltage | 690 V AC |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ithe] conventional enclosed thermal current | 140 A |
| [Ie] rated operational current | 83 A (AC-23A) at 400 V |
| Rated operational power in W | 45 kW at 400 V (AC-23) |
| 37 kW at 400 V (AC-3) | |
| Intermittent duty class | 30 |
| Making capacity ( I rms) | 1750 A at 400 V AC-21A |
| 1750 A at 400 V AC-22A | |
| 1750 A at 400 V AC-23A | |
| [Icm] rated short-circuit making capacity | 2.8 kA at 400 V at Ipeak |
| [Icw] rated short-time withstand Rms current | 2100 A at 400 V duration: 1 s |
| Rated conditional short-circuit current | 10 kA at 400 V - associated fuse 200 A aM |
| 10 kA at 400 V - associated fuse 200 A gG | |
| Breaking capacity | 1400 A at 400 V (AC-21A) |
| 1400 A at 400 V (AC-22A) | |
| 1400 A at 400 V (AC-23A) | |
| Mechanical durability | 30000 cycles |
| Electrical durability | 30000 cycles AC-21 |
| 30000 cycles DC-1...5 | |
| Environmental characteristic | Standard environment |
| Suitability for isolation | Yes |
| Connections - terminals | Screw clamp terminals70 mm² - flexible - with cable end |
| Screw clamp terminals95 mm² - solid | |
| Tightening torque | 22.6 N.m - on screw clamp terminals |
| Fire resistance | 960 °C conforming to IEC 60595-2-1 |
| handle front plate dimension | 90 x 90 mm |
| height | 291 mm |
| Width | 241 mm |
| Depth | 191 mm |
| Net weight | 2.19 kg |
| Environment | |
| standards | IEC 60204 |
| IEC 60947-4-1 | |
| Protective treatment | TC |
| Weight | 2.190000 |
|---|---|
| Brand | Schneider Electric |
| Model | VCF6GEN |
| Depth [cm] | 191 |
| Width [cm] | 241 |
| Height [cm] | 291 |
| Range | CTR Others |
| Family | PPCTR |
