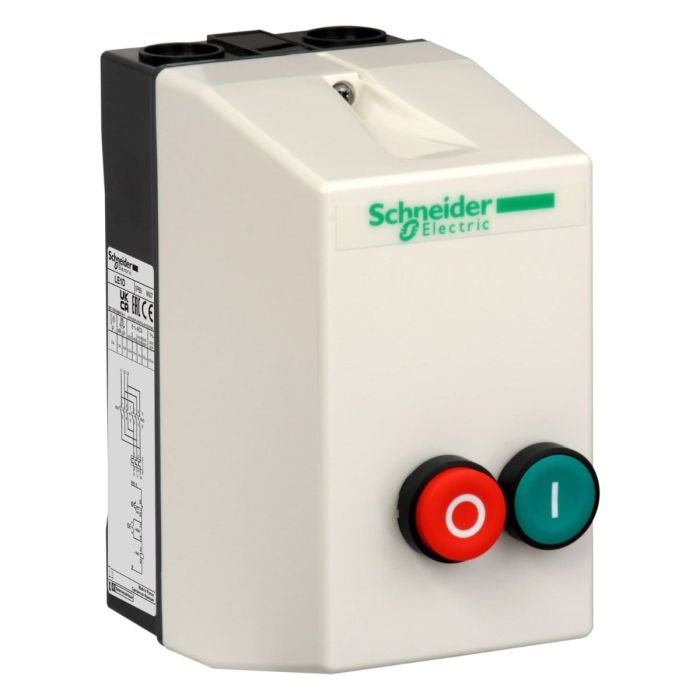

Schneider Electric TeSys LE Enclosed DOL Starter, 12 A, 220 V AC Coil
Range: TeSys
Product type: Enclosed DOL starter
Device application: Standard
Control type: Push-button start green I, Push-button stop/reset red O
The Schneider Electric LE1D12M7 TeSys LE Enclosed DOL Starter is a reliable solution for controlling electric motors. Designed for easy installation and efficient motor operation, this DOL starter ensures a smooth start-up. With a current rating of 12 A and a 220 V AC coil, it is suitable for various industrial applications.
Key Features:
Efficient Motor Control: Schneider Electric's LE1D12M7 TeSys LE Enclosed DOL Starter is designed to efficiently control electric motors, reducing wear and ensuring optimal performance.
Compact and Enclosed: Its enclosed design protects against dust and moisture, enhancing the longevity of your equipment.
Ease of Installation: Its user-friendly design simplifies the installation process, saving time and effort.
Built to Last: Schneider Electric is known for manufacturing durable and reliable products, and this DOL starter is no exception.
Specifications:
Main | |
| Range | TeSys |
| Product name | TeSys LE |
| device short name | LE1D |
| Product or component type | Enclosed DOL starter |
| Device application | Standard |
| utilisation category | AC-3 |
| Device composition | Thermal overload relay ordered separately |
| Contactor | |
| Control type | Push-button start green I |
| Push-button stop/reset red O | |
| Complementary | |
| Motor power kW | 3 kW at 220/230 V AC 50/60 Hz |
| 7.5 kW at 500 V AC 50/60 Hz | |
| 7.5 kW at 660/690 V AC 50/60 Hz | |
| 5.5 kW at 380/400 V AC 50/60 Hz | |
| 5.5 kW at 415 V AC 50/60 Hz | |
| 5.5 kW at 440 V AC 50/60 Hz | |
| [Ith] Conventional free air thermal current | 12:00 AM |
| [Uc] control circuit voltage | 220 V AC 50/60 Hz |
| Cable entry number | 2 ISO20 top |
| 2 ISO20 bottom | |
| Width | 88 mm |
| height | 166 mm |
| Depth | 128.5 mm |
| Net weight | 0.92 kg |
| Environment | |
| Material | Polycarbonate |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to IEC 60529 |
| standards | IEC 60947-4-1 |
| Ambient air temperature for operation | -5…40 °C |
| Environmental characteristic | Standard environment |
| product certifications | UKCA |
| Weight | 8.800000 |
|---|---|
| Brand | Schneider Electric |
| Model | LE1D12M7 |
| Depth [cm] | 12.85 |
| Width [cm] | 0.92 |
| Height [cm] | 16.6 |
| Range | TeSys |
| Family | PPCTR |
| Type | Enclosed DOL Starter |
