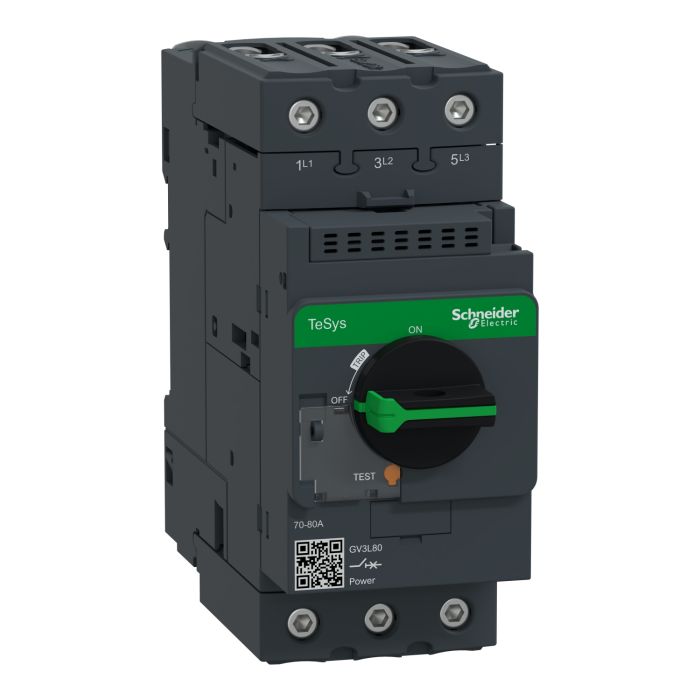

Schneider Electric TeSys DECA Motor Circuit Breaker - Frame 3, 3P, 80A, Magnetic, Rotary Handle, EverLink Terminals
Out of stock
SKU
GV3L80
Special Price EGP 10,139 Regular Price EGP 18,776
Quick Overview
Range of product: TeSys Deca
Product type: Motor circuit breaker
Device application: Motor protection
Poles: 3P
TeSys GV motor circuit breaker, 3 poles (3P), 80A/690V, for 3-phase motor applications 45kW@400V. It provides a magnetic protection with a tripping level at 14xIn, high breaking capacity Icu 50kA@400V. Connection by Everlink BTR screw terminals. Start-stop control by rotary handle guaranteed for 20 000 cycles AC-3. To complete motor protection, use it in association with a thermal overload relay LRD380 (to be ordered separately). Multi standards certified (IEC, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Specifications:
Main | |
| Range | TeSys Deca |
| Product name | TeSys GV3 |
| TeSys Deca | |
| Product or component type | Motor circuit breaker |
| device short name | GV3L |
| Device application | Motor protection |
| Trip unit technology | Magnetic |
| Complementary | |
| Poles description | 3P |
| Network type | AC |
| Utilisation category | Category A conforming to IEC 60947-2 |
| Network frequency | 50/60 Hz |
| Fixing mode | 35 mm symmetrical DIN rail: clipped |
| Panel: screwed (with 3 x M4 screws) | |
| Motor power kW | 45 kW at 400/415 V AC 50/60 Hz maximum peak current 750 A |
| 45 kW at 500 V AC 50/60 Hz maximum peak current 750 A | |
| 55 kW at 690 V AC 50/60 Hz maximum peak current 750 A | |
| Breaking capacity | 65 kA Icu at 230/240 V AC 50/60 Hz |
| 50 kA Icu at 400/415 V AC 50/60 Hz | |
| 50 kA Icu at 440 V AC 50/60 Hz | |
| 12 kA Icu at 500 V AC 50/60 Hz | |
| 6 kA Icu at 690 V AC 50/60 Hz | |
| [Ics] rated service short-circuit breaking capacity | 100 % at 230/240 V AC 50/60 Hz |
| 60 % at 400/415 V AC 50/60 Hz | |
| 60 % at 440 V AC 50/60 Hz | |
| 50 % at 500 V AC 50/60 Hz | |
| 50 % at 690 V AC 50/60 Hz | |
| control type | Rotary handle |
| [In] rated current | 80 A |
| Magnetic tripping current | 1120 A |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
| Suitability for isolation | Yes conforming to IEC 60947-1 |
| Power dissipation per pole | 8 W |
| Mechanical durability | 50000 cycles |
| Electrical durability | 20000 cycles for AC-3 at 415 V In |
| Tightening torque | 5 N.m - on screw clamp terminal |
| Width | 55 mm |
| height | 132 mm |
| Depth | 136 mm |
| Net weight | 0.96 kg |
| Colour | Dark grey |
| Environment | |
| standards | EN/IEC 60947-2 |
| EN/IEC 60947-4-1 | |
| CSA C22.2 No 60947-4-1 | |
| product certifications | CCC |
| CSA | |
| EAC | |
| LROS (Lloyds register of shipping) | |
| BV | |
| ABS | |
| DNV-GL | |
| UKCA | |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Climatic withstand | Conforming to IACS E10 |
| Ambient air temperature for storage | -40…80 °C |
| Fire resistance | 960 °C conforming to IEC 60695-2-11 |
| Ambient air temperature for operation | -20…60 °C |
| Mechanical robustness | Shocks: 5 Gn for 11 ms contactor open |
| Shocks: 30 Gn for 11 ms contactor closed | |
| Vibrations: 4 Gn, 5...300 Hz | |
| Operating altitude | 3000 m |
| Weight | 13.200000 |
|---|---|
| Brand | Schneider Electric |
| Model | GV3L80 |
| Color | Black |
| Device Application | Motor protection |
| Depth [cm] | 13.6 |
| Width [cm] | 0.96 |
| Height [cm] | 5.5 |
| Range | TeSys Deca |
| Family | PPCTR |
| Type | Motor Circuit Breaker |
| Poles | 3P |
| [In] Rated Current | 80 A |
| Voltage ~ Frequency | 50-60 Hz |
| IP Degree of Protection | IP20 |
| IK Degree of Protection | IK04 |
