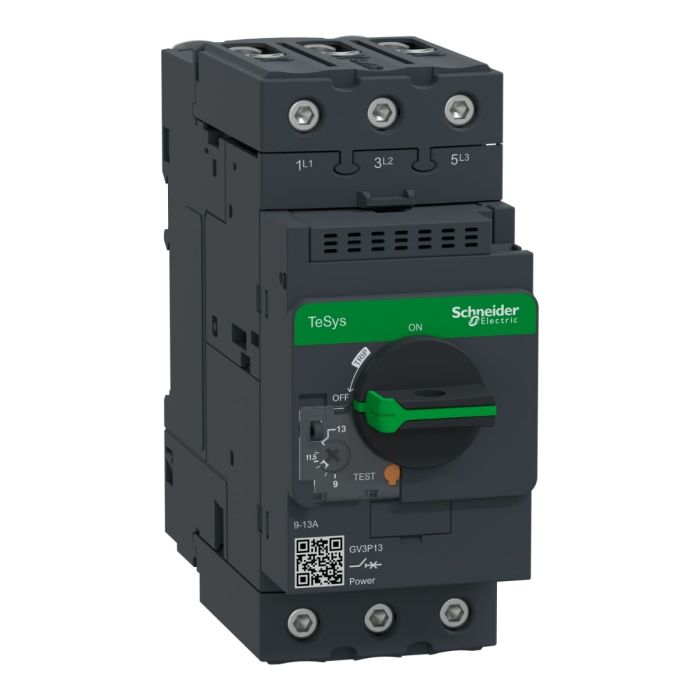

Schneider Electric TeSys DECA Manual Starter and Protector - Thermal-Magnetic Circuit Protector, Rotary Knob, 9-13A, EverLink BTR Connectors
Range of product: TeSys Deca
Product type: Motor circuit breaker
Device application: Motor protection
Poles: 3P
TeSys GV motor circuit breaker, 3 poles (3P), 13A/690V, for 3-phase motor applications 5.5kW@400V. It provides a thermal-magnetic protection with a thermal setting range 9-13A, magnetic tripping at 14xIn, high breaking capacity Icu 100kA@400V. Connection by Everlink BTR screw terminals. Start-stop control by rotary knob guaranteed for 50 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).
Key Features:
Motor Control and Protection: The TeSys DECA combines motor control and protection in a single device, simplifying your electrical system.
Thermal-Magnetic Circuit Protector: This device offers reliable protection against overloads and short circuits using a thermal-magnetic trip unit.
Rotary Knob: The rotary knob makes it easy to start and stop the motor, enhancing user convenience.
Wide Current Range: With a current rating of 9-13A, it's suitable for a range of motor sizes and applications.
EverLink BTR Connectors: The EverLink connectors ensure secure and maintenance-free electrical connections.
Specifications:
Main | |
| Range | TeSys Deca |
| Product name | TeSys GV3 |
| TeSys Deca | |
| Product or component type | Motor circuit breaker |
| device short name | GV3P |
| Device application | Motor protection |
| Trip unit technology | Thermal-magnetic |
| Complementary | |
| Poles description | 3P |
| Network type | AC |
| Utilisation category | AC-3 conforming to IEC 60947-4-1 |
| Network frequency | 50/60 Hz conforming to IEC 60947-4-1 |
| Fixing mode | 35 mm symmetrical DIN rail: clipped |
| Panel: screwed (with 3 x M4 screws) | |
| Motor power kW | 5.5 kW at 400/415 V AC 50/60 Hz |
| 7.5 kW at 500 V AC 50/60 Hz | |
| 11 kW at 690 V AC 50/60 Hz | |
| Breaking capacity | 100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 |
| 100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 12 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 6 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2 | |
| [Ics] rated service short-circuit breaking capacity | 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 |
| 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 50 % at 500 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 50 % at 690 V AC 50/60 Hz conforming to IEC 60947-2 | |
| control type | Rotary handle |
| [In] rated current | 13 A |
| Thermal protection adjustment range | 9…13 A conforming to IEC 60947-4-1 |
| Magnetic tripping current | 182 A |
| [Ith] conventional free air thermal current | 13 A conforming to IEC 60947-4-1 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
| Phase failure sensitivity | Yes conforming to IEC 60947-4-1 |
| Suitability for isolation | Yes conforming to IEC 60947-1 |
| Power dissipation per pole | 8 W |
| Mechanical durability | 50000 cycles |
| Electrical durability | 50000 cycles for AC-3 at 415 V In |
| Rated duty | Continuous conforming to IEC 60947-4-1 |
| Tightening torque | 5 N.m - on screw clamp terminal |
| Width | 55 mm |
| height | 132 mm |
| Depth | 136 mm |
| Weight | 13.200000 |
|---|---|
| Brand | Schneider Electric |
| Model | GV3P13 |
| Device Application | Motor protection |
| Depth [cm] | 13.6 |
| Width [cm] | 0.96 |
| Height [cm] | 5.5 |
| Range | TeSys Deca |
| Family | PPCTR |
| Type | Motor Circuit Breaker |
| Poles | 3P |
| [In] Rated Current | 13 A |
| Voltage ~ Frequency | 50-60 Hz |
| IP Degree of Protection | IP20 |
| IK Degree of Protection | IK09 |
