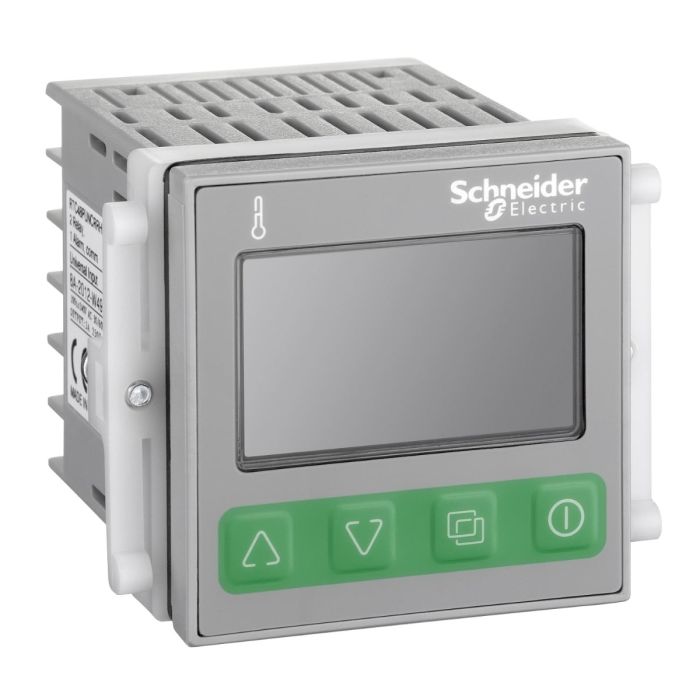

Schneider Electric Temperature Control Relay RTC, 48X48 MM,100..240 Vac, 1 Relay, 1 SSR, Alarm
Out of stock
SKU
RTC48PUN1RSHU
Special Price EGP 3,526 Regular Price EGP 6,409
Quick Overview
Range: Zelio Control
Product type: Modular measurement and control relays
Relay type: Temperature control relays
Relay name: RTC
Specifications:
| Main | |
| Range of product | Zelio Control |
| Product or component type | Modular measurement and control relays |
| Relay type | Temperature control relays |
| Product specific application | Packaging |
| HVAC | |
| Industrial machines | |
| Heating or cooling | |
| Relay name | RTC |
| Complementary | |
| Outer dimension | 1/16 DIN |
| 48 x 48 mm | |
| Analogue input type | Thermocouple (thermocouple J, K, R, B, S, T, E, N, PLII, C(W/Re5-26)) |
| Temperature probe (temperature probe: Pt 100, JPt 100) | |
| Voltage 0…1 V DC | |
| Voltage 0...5 V DC | |
| Voltage 1...5 V DC | |
| Voltage 0...10 V DC | |
| Current 0...20 mA | |
| Current 4...20 mA | |
| [Us] rated supply voltage | 100...240 V AC |
| Supply voltage limits | 85…264 V |
| Measurement accuracy | 0.2 % full scale |
| Sampling duration | 250 ms |
| Number of outputs | 1 relay output with NO contact for output 1 |
| 1 solid state output for output 2 | |
| Output type | Relay output at 250 V AC / 3 A on resistive load |
| Relay output at 250 V AC / 1 A on inductive load | |
| Solid state output at 12 V DC / 40 mA | |
| Alarm output | 1 C/O |
| Power consumption in VA | 8 VA at 250 V AC |
| Function available | Auto tuning |
| PID | |
| Marking | CE |
| Operating position | Any position |
| Display type | 11 segments LCD |
| Display digits | 5 |
| Signalling function | Process value green, orange and red |
| Output status (OUT1, OUT2) orange | |
| Alarm status (EV1, EV2) orange | |
| Transmission/reception activity (TX/TR) orange | |
| Setpoint value green | |
| Mounting support | Panel |
| Net weight | 120 g |
| Environment | |
| Standards | EN 61326-1 |
| CSA C22.2 No 24-93 | |
| EN 61010-1 | |
| Product certifications | cURus (873) |
| Ambient air temperature for storage | -25…80 °C |
| Ambient air temperature for operation | 0…50 °C |
| Relative humidity | 35…85 % without condensation |
| Vibration resistance | 1 gn (f= 10…55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 10 gn conforming to IEC 60068-2-27 |
| IP degree of protection | IP66 (front face) conforming to IEC 60529 |
| IP20 (rear) | |
| NEMA degree of protection | NEMA 4X front face |
| Weight | 0.120000 |
|---|---|
| Brand | Schneider Electric |
| Model | RTC48PUN1RSHU |
| Power In V | 8 VA at 250 V AC |
| IP Degree of Protection | IP66 |
