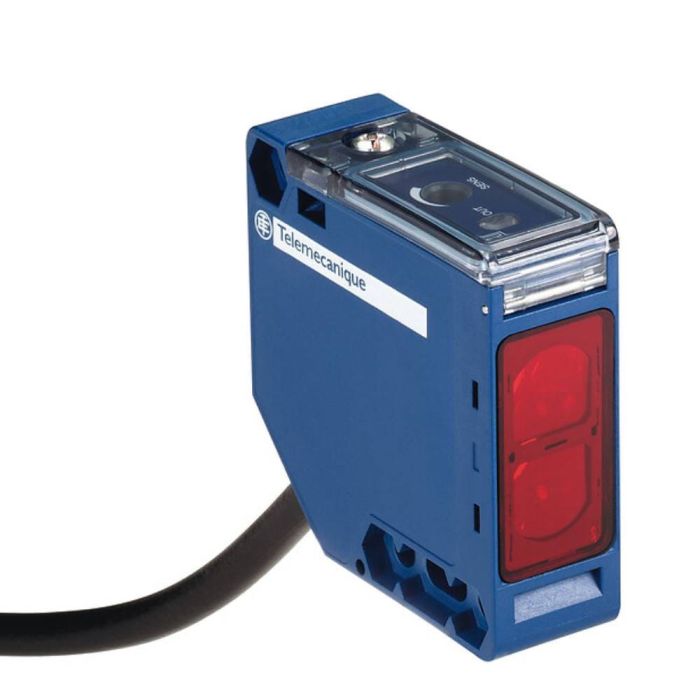

Telemecanique Photo-electric Sensor, XUK, Diffuse, Sn 1m - 24..240VAC/DC, Cable 2m
In stock
SKU
XUK5ARCNL2
Special Price EGP 428 Regular Price EGP 4,275
Telemecanique Photo-electric Sensor, XUK, Diffuse, Sn 1m - 24..240VAC/DC, Cable 2m is available to buy in increments of 1
Quick Overview
Range: Telemecanique Photoelectric Sensors XU
Sensor type: Photo-electric sensor
Wiring technique: 5-wire
Material: Plastic
Specifications:
Range of product | Telemecanique Photoelectric Sensors XU |
| Series name | General purpose single mode |
| Electronic sensor type | Photo-electric sensor |
| Sensor name | XUK |
| Sensor design | Compact 50 × 50 |
| Detection system | Diffuse |
| Material | Plastic |
| Type of output signal | Discrete |
| Supply circuit type | AC/DC |
| Wiring technique | 5-wire |
| Nominal sensing distance (Sn) | 1–1 m diffuse |
| Discrete output function | 1 C/O (Changeover) |
| Electrical connection | Cable |
| Product specific application | Not applicable |
| Emission | Infrared diffuse |
| Complementary | |
| Enclosure material | PBT |
| Lens material | PMMA |
| Output type | Relay |
| Cable composition | 5 × 0.34 mm² |
| Status LED | Yellow LED (output state), Green LED (supply) |
| Rated supply voltage (Us) | 24…240 V AC/DC |
| Switching capacity | 3 A (cos φ = 1, 0.5 million cycles at 1 cycle/s at 250 V) |
| Switching frequency | 20 Hz |
| Current consumption | ≤ 35 mA no-load |
| Maximum power consumption | – |
| Delay first up | 60 ms |
| Delay response | 25 ms |
| Delay recovery | 25 ms |
| Setting-up | Sensitivity adjustment |
| Environment | |
| Vibration resistance | 7 gn, amplitude ±1.5 mm (10–55 Hz), per IEC 60068-2-6 |
| Shock resistance | 30 gn for 11 ms, per IEC 60068-2-27 |
| IP degree of protection | IP65 double insulation (IEC 60529) |
| Weight | 3.000000 |
|---|---|
| Brand | Telemecanique |
| Model | XUK5ARCNL2 |
| Family | IDSEN |
| IP Degree of Protection | IP65 |
