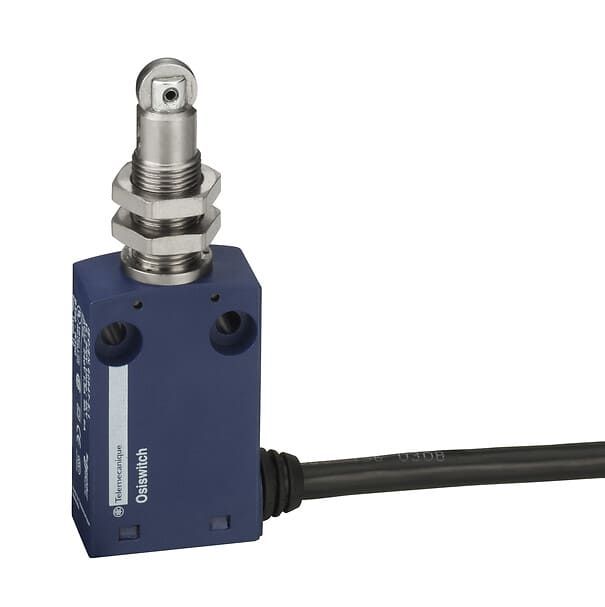

Telemecanique Limit Switch, Limit Switches XC Standard, XCmn, M12 Steel Roller Plunger, 1NC+1 NO, Snap, 2 M
Out of stock
SKU
XCMN21F2L2
Special Price EGP 725 Regular Price EGP 7,249
Quick Overview
Range: Telemecanique Limit switches XC Standard
Product type: limit switch
Body type: fixed
Material: Plastic
Specifications:
| Main | Telemecanique Limit switches XC Standard |
| Series Name | Standard format |
| Product or Component Type | Limit switch |
| Device Short Name | XCMN |
| Sensor Design | Miniature |
| Body Type | Fixed |
| Head Type | M12 Plunger head |
| Material | Plastic |
| Body Material | Plastic |
| Head Material | Zamak |
| Fixing Mode | By the head |
| Movement of Operating Head | Linear |
| Type of Operator | Spring return roller plunger metal |
| Type of Approach | Lateral approach, 2 directions |
| Contacts Type and Composition | 1 NC + 1 NO |
| Contact Operation | Snap action |
| Complementary | |
| Switch Actuation | By 30° cam |
| Electrical Connection | Fixed cable |
| Cable Composition | 4 x 0.75 mm² |
| Wire Insulation Material | PvR |
| Contacts Insulation Form | Zb |
| Positive Opening | With |
| Contact Code Designation | B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to IEC 60947-5-1 appendix A, R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A |
| Resistance Across Terminals | 25 MOhm conforming to IEC 60255-7 category 3 |
| Environment | |
| Shock Resistance | 25 gn for 18 ms conforming to IEC 60068-2-27 |
| Vibration Resistance | 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| IP Degree of Protection | IP65 conforming to IEC 60529 |
| IK Degree of Protection | IK04 conforming to IEC 62262 |
| Electrical Shock Protection Class | Class II conforming to IEC 61140, class II conforming to NF C 20-030 |
| Protective Treatment | TC |
| Product Certifications | CSA, CCC, UL |
| Standards | CSA C22.2 No 14, UL 508, IEC 60947-5-1, IEC 60204-1 |
| Weight | 3.000000 |
|---|---|
| Brand | Telemecanique |
| Model | XCMN21F2L2 |
| Material | Plastic |
