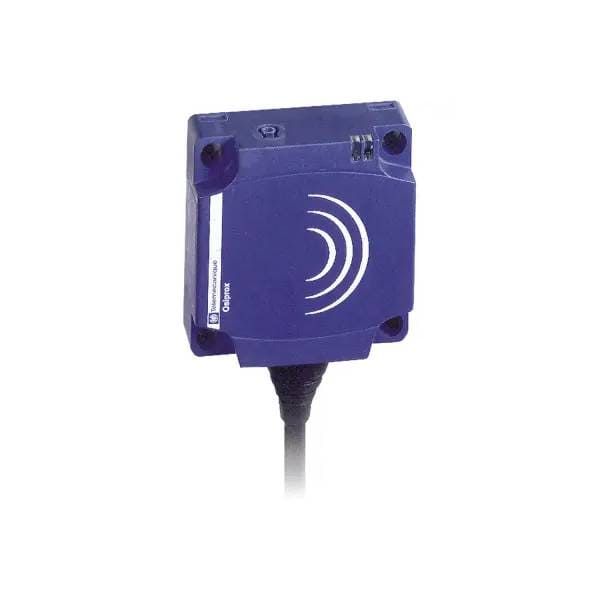

Telemecanique Inductive Proximity Sensors XS, Inductive Sensor XS7 40x40x15, PBT, Sn15mm, 12...24 VDC
In stock
SKU
XS7C1A1DAL2
Special Price EGP 574 Regular Price EGP 5,738
Telemecanique Inductive Proximity Sensors XS, Inductive Sensor XS7 40x40x15, PBT, Sn15mm, 12...24 VDC is available to buy in increments of 1
Quick Overview
Range: Telemecanique Inductive proximity sensors XS
Sensor Type: Inductive Proximity Sensor
Material: Plastic
Size: 15 mm
Specifications:
| Range of product | Telemecanique Inductive proximity sensors XS |
| Series name | General purpose |
| Sensor type | Inductive proximity sensor |
| Device application | Not applicable |
| Sensor name | XS7 |
| Sensor design | Flat form 40 x 40 x 15 |
| Size | 15 mm |
| Body type | Fixed |
| Enclosure material | PBT |
| Type of output signal | Discrete |
| Wiring technique | 2‑wire |
| Discrete output function | 1 NO |
| Electrical connection | Cable |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| IP degree of protection | IP68 double insulation conforming to IEC 60529 |
| Switching capacity in mA | 1.5...100 mA DC with overload and short‑circuit protection |
| Detector flush mounting acceptance | Flush mountable |
| Material | Plastic |
| Output circuit type | DC |
| Detection face | Frontal |
| Front material | PBT |
| Differential travel | 1...15 % of Sr |
| Wire insulation material | PVC |
| Cable composition | 2 × 0.34 mm² |
| Sensing range | 8...15 mm |
| Status LED | Output state: 1 LED (yellow) |
| Switching frequency | ≤ 1000 Hz |
| Residual current | 0.5 mA (open state) |
| Voltage drop | < 4 V (closed) |
| Delay first up | 5 ms |
| Delay response | 0.3 ms |
| Delay recovery | 0.7 ms |
| Marking | CE |
| Product certifications | CSA, UL, C‑Tick, Ecolab |
| Shock resistance | 50 gn for 11 ms conforming to IEC 60068‑2‑27 |
| Vibration resistance | 25 gn amplitude ±2 mm (f = 10–55 Hz) conforming to IEC 60068‑2‑6 |
| Weight | 0.090000 |
|---|---|
| Brand | Telemecanique |
| Model | XS7C1A1DAL2 |
| Range | Square Inductive - XS7, XS8 |
| Family | IDSEN |
