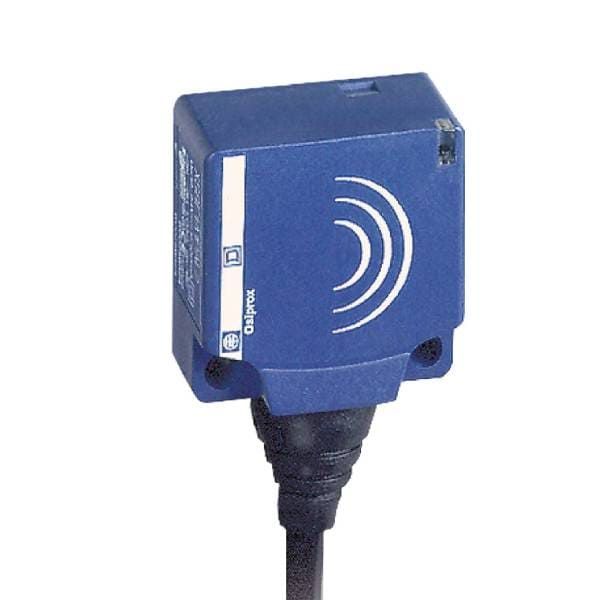

Telemecanique Inductive Proximity Sensors XS, Inductive Sensor XS7 26x26x13, PBT, Sn10mm, 12...24 VDC, Cable 2 M
In stock
SKU
XS7E1A1DAL2
Special Price EGP 515 Regular Price EGP 5,153
Telemecanique Inductive Proximity Sensors XS, Inductive Sensor XS7 26x26x13, PBT, Sn10mm, 12...24 VDC, Cable 2 M is available to buy in increments of 1
Quick Overview
Range: Telemecanique Inductive proximity sensors XS
Sensor Type: Inductive Proximity Sensor
Body Type: Fixed
Size: 13 mm
Specifications:
| Main | |
| Range of product | Telemecanique Inductive proximity sensors XS |
| Series name | General purpose |
| Sensor type | Inductive proximity sensor |
| Device application | Not applicable |
| Sensor name | XS7 |
| Sensor design | Flat form 26 x 26 x 13 |
| Size | 13 mm |
| Body type | Fixed |
| Enclosure material | PBT |
| Type of output signal | Discrete |
| Wiring technique | 2-wire |
| Discrete output function | 1 NO |
| Electrical connection | Cable |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| IP degree of protection | IP68 double insulation conforming to IEC 60529 |
| Switching capacity in mA | 1.5...100 mA DC with overload and short-circuit protection |
| Complementary | |
| Detector flush mounting acceptance | Flush mountable |
| Material | Plastic |
| Output circuit type | DC |
| Detection face | Frontal |
| Front material | PBT |
| Differential travel | 1...15% of Sr |
| Wire insulation material | PVC |
| Cable composition | 2 x 0.34 mm² |
| Sensing range | 8...15 mm |
| Status LED | Output state: 1 LED (yellow) |
| Switching frequency | ≤ 1000 Hz |
| Residual current | 0.5 mA open state |
| Voltage drop | <4 V (closed) |
| Delay first up | 5 MILLISECOND |
| Marking | CE |
| Delay response | 0.3 MILLISECOND |
| Delay recovery | 0.7 MILLISECOND |
| Environment | |
| Product certifications | CSA, UL, C-Tick, Ecolab |
| Shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 25 gn, amplitude = ±2 mm (f = 10–55 Hz) conforming to IEC 60068-2-6 |
| Weight | 0.070000 |
|---|---|
| Brand | Telemecanique |
| Model | XS7E1A1DAL2 |
| Range | Square Inductive - XS7, XS8 |
| Family | IDSEN |
